Toyota Sienta (JPP)

2022-07 → present · chassis MXPC10,MXPL10 · catalogue 119340 · General

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

139 part groups · 6 illustrations

Illustrations

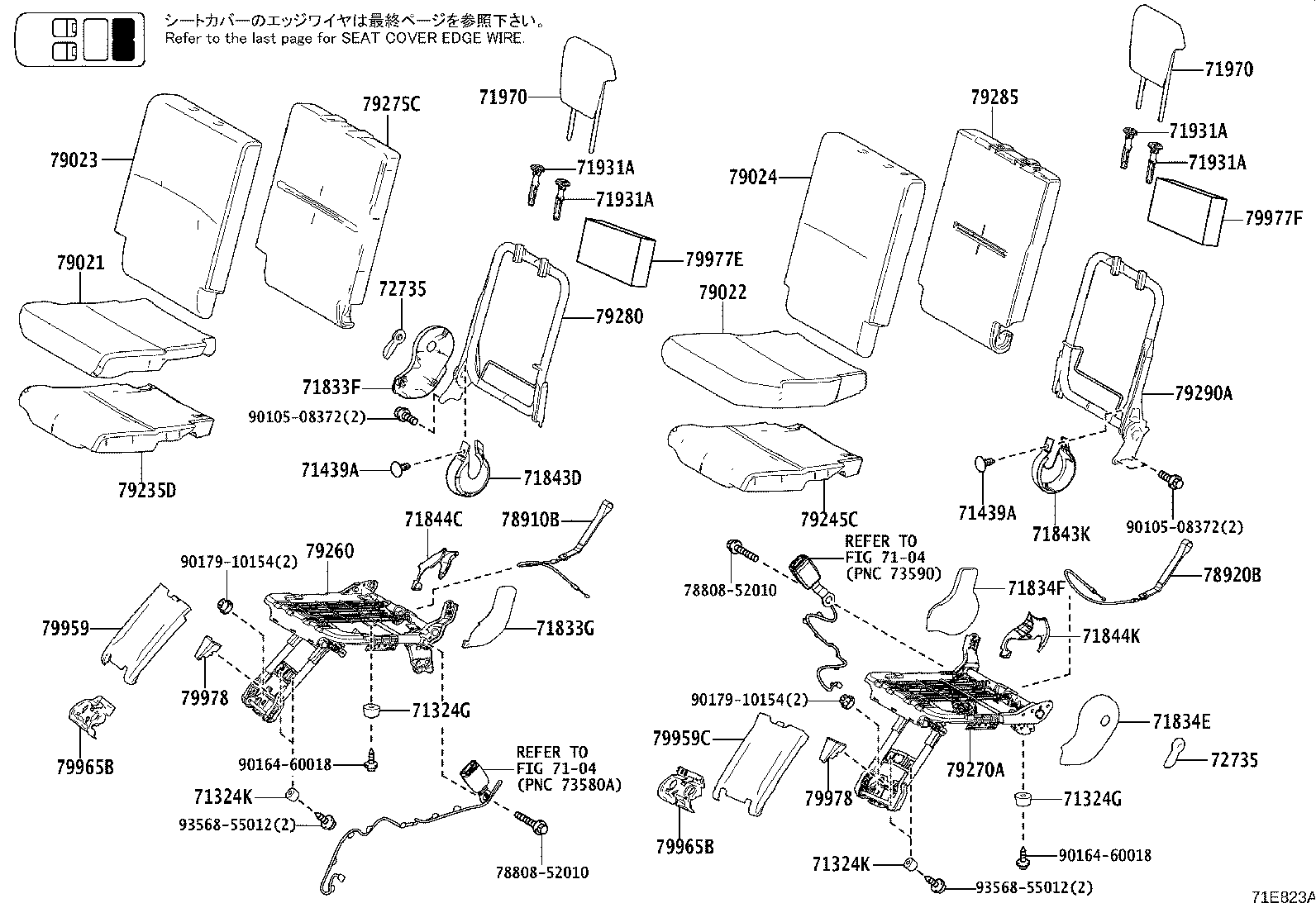

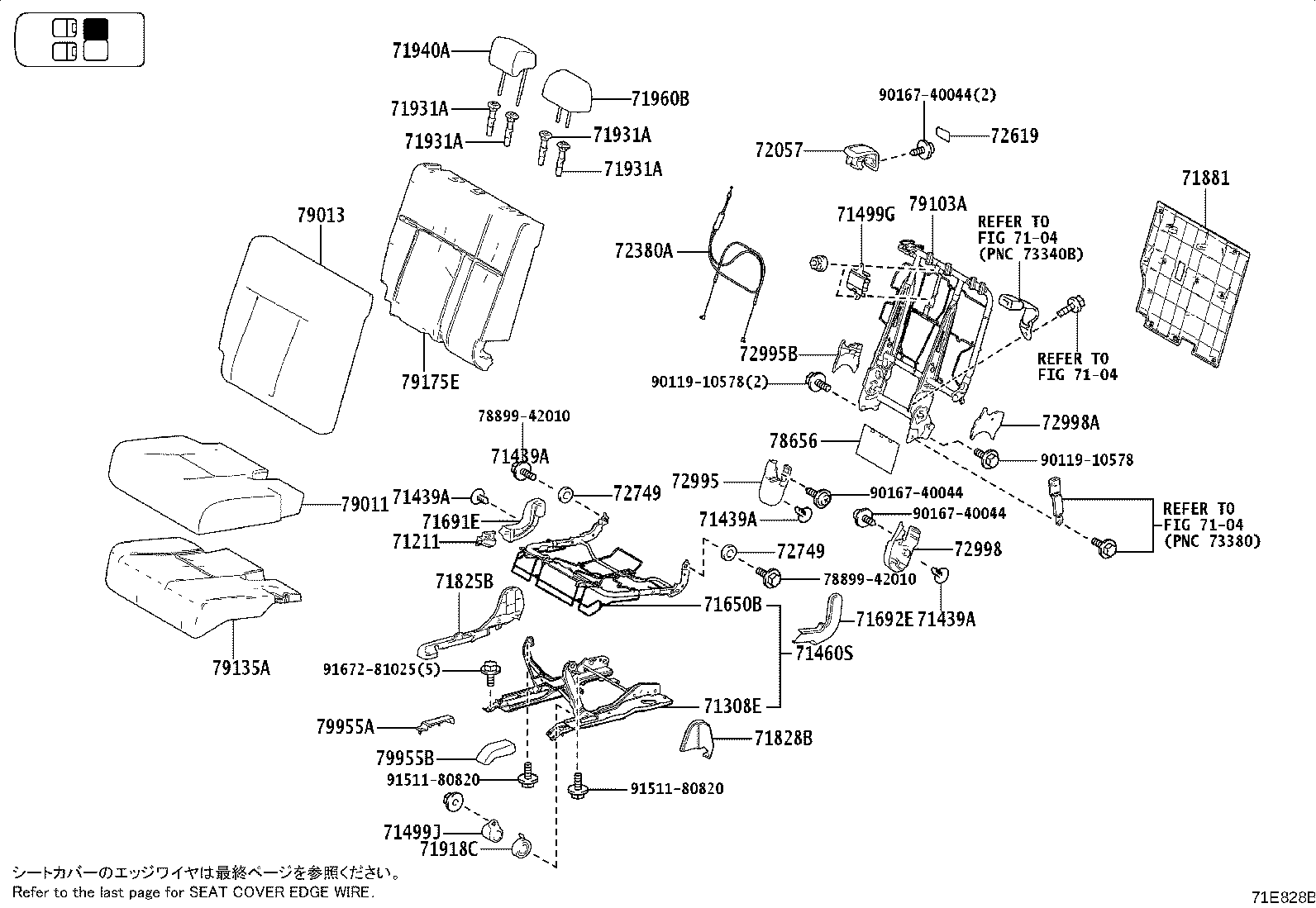

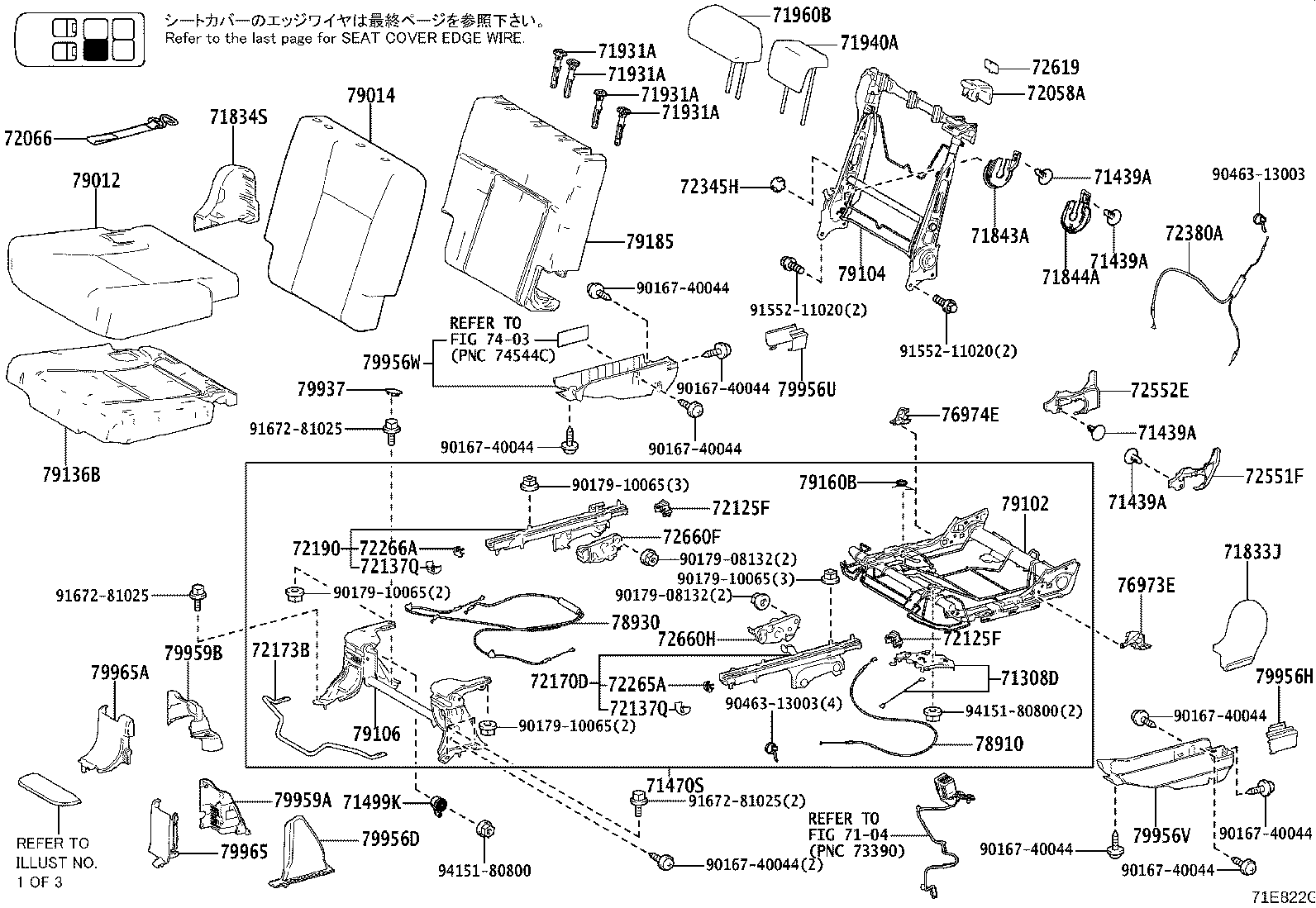

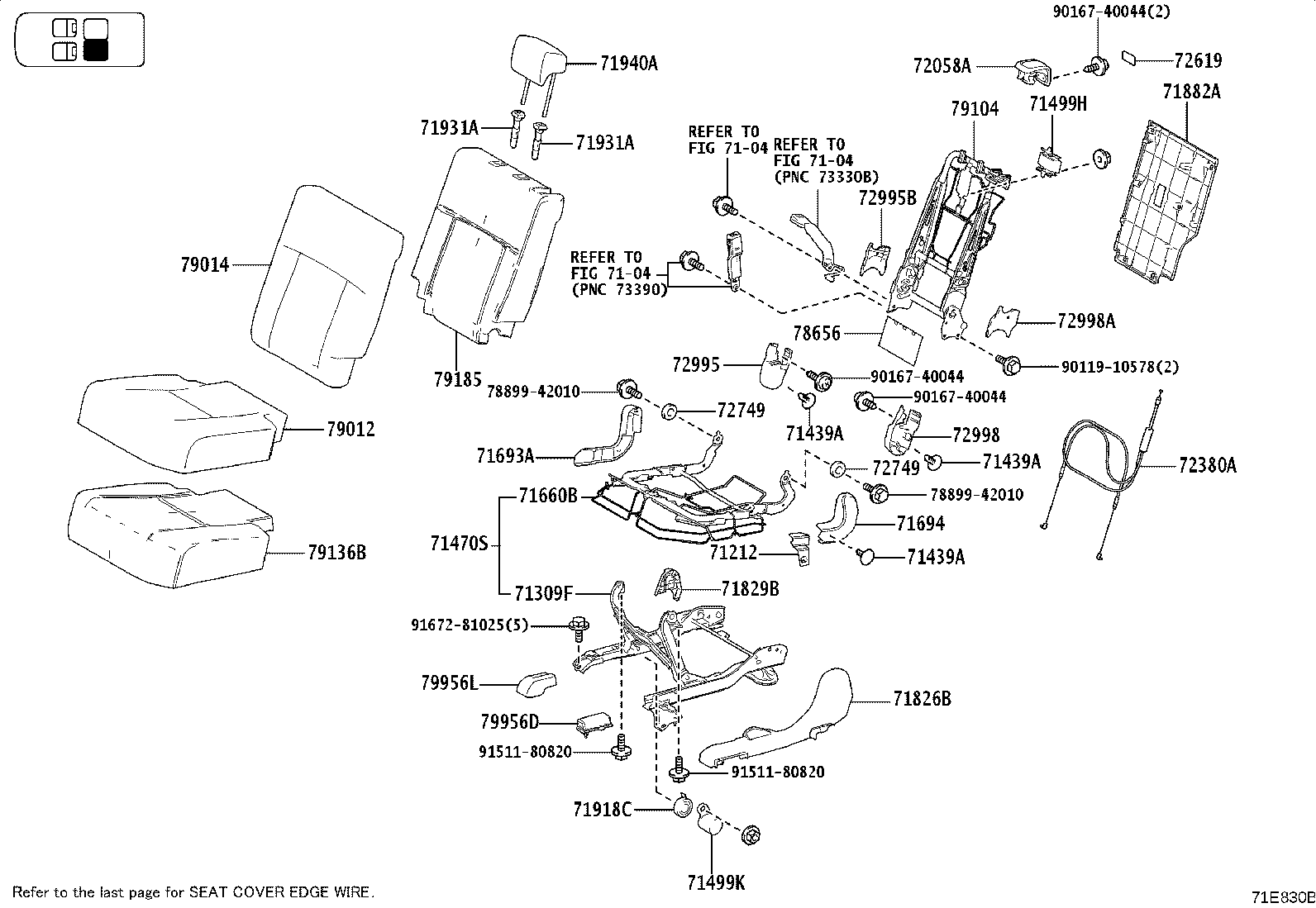

Figure 71E821D 71E821D 2022-07 → — Figure 71E822G 71E822G 2022-07 → — Figure 71E823A 71E823A 2022-07 → — Figure 71E828B 71E828B 2022-07 → — Figure 71E830B 71E830B 2022-07 → — Figure 71E870 71E870 2022-07 → —

Part groups

PNCDescription
71211 Panel, Rear Seat Cushion, RH
71212 Panel, Rear Seat Cushion, LH
71307D Bracket Sub-assy, Rear Seat Cushion Support, RH
71308D Bracket Sub-assy, Rear Seat Cushion Support, LH
71308E Leg Sub-assy, Rear Seat, RH
71309F Leg Sub-assy, Rear Seat, LH
71324G Cushion, Rear NO.2 Seat
71324K Cushion, Rear Seat
71439A Clip
71460S Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71499C Damper, Rear Seat Cushion Spring
71499G Damper, Rear Seatback Spring, RH
71499H Damper, Rear Seatback Spring, LH
71499J Damper, Rear Seat Cushion Spring, RH
71499K Damper, Rear Seat Cushion Spring, LH
71650B Spring Assy, Rear Seat Cushion, RH
71660B Spring Assy, Rear Seat Cushion, LH
71691E Cover, Rear Seat Cushion Hinge, NO.1
71692E Cover, Rear Seat Cushion Hinge, NO.2
71693A Cover, Rear Seat Cushion Hinge, NO.3
71694 Cover, Rear Seat Cushion Hinge, Lower LH
71825B Moulding, Rear Seat Cushion, RH
71826B Moulding, Rear Seat Cushion, LH
71828B Moulding, Rear Seat Cushion, Rear RH
71829B Moulding, Rear Seat Cushion, Rear LH
71833A Cover, Rear Seat Reclining, NO.1 RH
71833C Cover, Rear Seat Reclining, NO.2 RH
71833F Cover, Rear NO.2 Seat Reclining, Outer RH
71833G Cover, Rear NO.2 Seat Reclining, Inner RH
71833J Cover, Rear Seat Reclining, NO.1 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71834B Cover, Rear Seat Reclining, NO.2 LH
71834E Cover, Rear NO.2 Seat Reclining, Inner LH
71834F Cover, Rear NO.2 Seat Reclining, Outer LH
71834S Cover, Rear Seat Reclining, NO.1 LH
71843A Cover, Rear Seat Reclining, NO.2 RH
71843D Cover, Rear Seat Reclining, NO.2 RH
71843K Cover, Rear NO.2 Seat Reclining, NO.2 RH
71844A Cover, Rear Seat Reclining, NO.2 LH
71844C Cover, Rear Seat Reclining, NO.2 LH
71844K Cover, Rear NO.2 Seat Reclining, NO.2 LH
71881 Board, Rear Seatback, RH
71882A Board, Rear Seatback, LH
71918C Spring, Center Seat Cushion Catch
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
71970 Headrest Assy, Rear Seat
72057 Lever Sub-assy, Rear Seat Lock Control, RH
72058A Lever Sub-assy, Rear Seat Lock Control, LH
72065 Belt Sub-assy, Rear Seat Hook, RH
72066 Belt Sub-assy, Rear Seat Hook, LH
72125E Cover, Seat Track, Upper Rear RH
72125F Cover, Seat Track, Upper Rear LH
72137Q Cover, Rear Seat Track, NO.2
72160 Track Assy, Rear Seat, Outer RH
72170D Track Assy, Rear Seat, Outer LH
72173A Handle, Rear Seat Track Adjusting, RH
72173B Handle, Rear Seat Track Adjusting, LH
72180C Track Assy, Rear Seat, Inner RH
72190 Track Assy, Rear Seat Inner, LH
72265A Cover, Seat Track Upper Rail, RH
72266A Cover, Seat Track Upper Rail, LH
72345H Cap, Seat Stand Frame
72380A Cable Assy, Seat Adjuster Control, NO.2
72551E Cover, Reclining Hinge, RH
72551F Cover, Reclining Link, RH NO.1
72552A Cover, Reclining Hinge, LH
72552E Cover, Reclining Hinge, LH
72619 Cover, Rear Seatback Lock Striker
72650F Lock Assy, Rear Seat, RH
72660F Lock Assy, Rear Seat, LH
72660H Lock Assy, Rear NO.2 Seat, LH
72735 Lever, Rear Seat Reclining Release
72749 Spacer, Rear Seat Reclining
72995 Cover, Rear Seat Cushion, RH
72995B Cover, NO.1 Seat Cushion, RH
72998 Cover, Rear Seat Cushion, LH
72998A Cover, NO.1 Seat Cushion, LH
76973E Cover, Rear Under Side, RH
76974E Cover, Rear Under Side, LH
78656 Cover, Rear Seat Legrest
78910 Cable Assy, Fold Seat Lock Control, NO.1
78910B Cable Assy, Fold Seat Lock Control, NO.1 RH
78920B Cable Assy, Fold Seat Lock Control, NO.1 LH
78930 Cable Assy, Fold Seat Lock Control, NO.3
79011 Cover Sub-assy, NO.1 Seat Cushion, RH
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79013 Cover Sub-assy, NO.1 Seatback, RH
79014 Cover Sub-assy, NO.1 Seatback, LH
79021 Cover Sub-assy, NO.2 Seat Cushion, RH
79022 Cover Sub-assy, NO.2 Seat Cushion, LH
79023 Cover Sub-assy, NO.2 Seatback, RH
79024 Cover Sub-assy, NO.2 Seatback, LH
79101B Frame Sub-assy, NO.1 Seat Cushion, RH
79102 Frame Sub-assy, NO.1 Seat Cushion, LH
79103A Frame Sub-assy, NO.1 Seatback, RH
79104 Frame Sub-assy, NO.1 Seatback, LH
79105 Leg Sub-assy, NO.1 Seat, RH
79106 Leg Sub Assy, NO.1 Seat, LH
79135A Pad, NO.1 Seat Cushion, RH
79136B Pad, NO.1 Seat Cushion, LH
79160A Spring Assy, NO.1 Seat Cushion, RH
79160B Spring Assy, NO.1 Seat Cushion, LH
79175E Pad, NO.1 Seatback, RH
79185 Pad, NO.1 Seatback, LH
79235D Pad, NO.2 Seat Cushion, RH
79245C Pad, NO.2 Seat Cushion, LH
79260 Spring Assy, NO.2 Seat Cushion
79270A Spring Assy, NO.2 Seat Cushion, LH
79275C Pad, NO.2 Seatback, RH
79280 Spring Assy, NO.2 Seatback
79285 Pad, NO.2 Seatback, LH
79290A Spring Assy, NO.2 Seatback, LH
79937 Cover, Rear Seat Leg, NO.2
79937A Cover, Rear Seat Leg, NO.2
79955A Cover, Rear Seat Front Bracket, RH
79955B Cover, NO.2 Seat Front Bracket, RH
79956B Cover, Rear Seat Leg Side, RH
79956C Cover, Rear Seat Leg Side, LH
79956D Cover, Rear Seat Front Bracket, LH
79956H Cover, NO.3 Seat Leg Side, LH
79956L Cover, NO.2 Seat Front Bracket, LH
79956S Cover, Rear Seat Leg Side
79956T Cover, Rear Seat Leg Side
79956U Cover, Rear Seat Leg Side
79956V Cover, Rear Seat Leg Side, RH
79956W Cover, Rear Seat Leg Side, LH
79959 Cover, RR Seat Leg
79959A Cover, Rear Seat Leg, RH
79959B Cover, Rear Seat Leg, LH
79959C Cover, Rear Seat Leg
79965 Cover, Rear Seat Leg Side, NO.2
79965A Cover, Rear Seat Leg Side, NO.2
79965B Cover, Rear Seat Leg Side, NO.2
79977E Felt, Seatback, RH
79977F Felt, Seatback, LH
79978 Cover, Rear Seat Leg Garnish, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
