Toyota Sienta (JPP)

2022-07 → present · chassis MXPC10,MXPL10 · catalogue 119340 · General

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

22 part groups · 4 illustrations

Illustrations

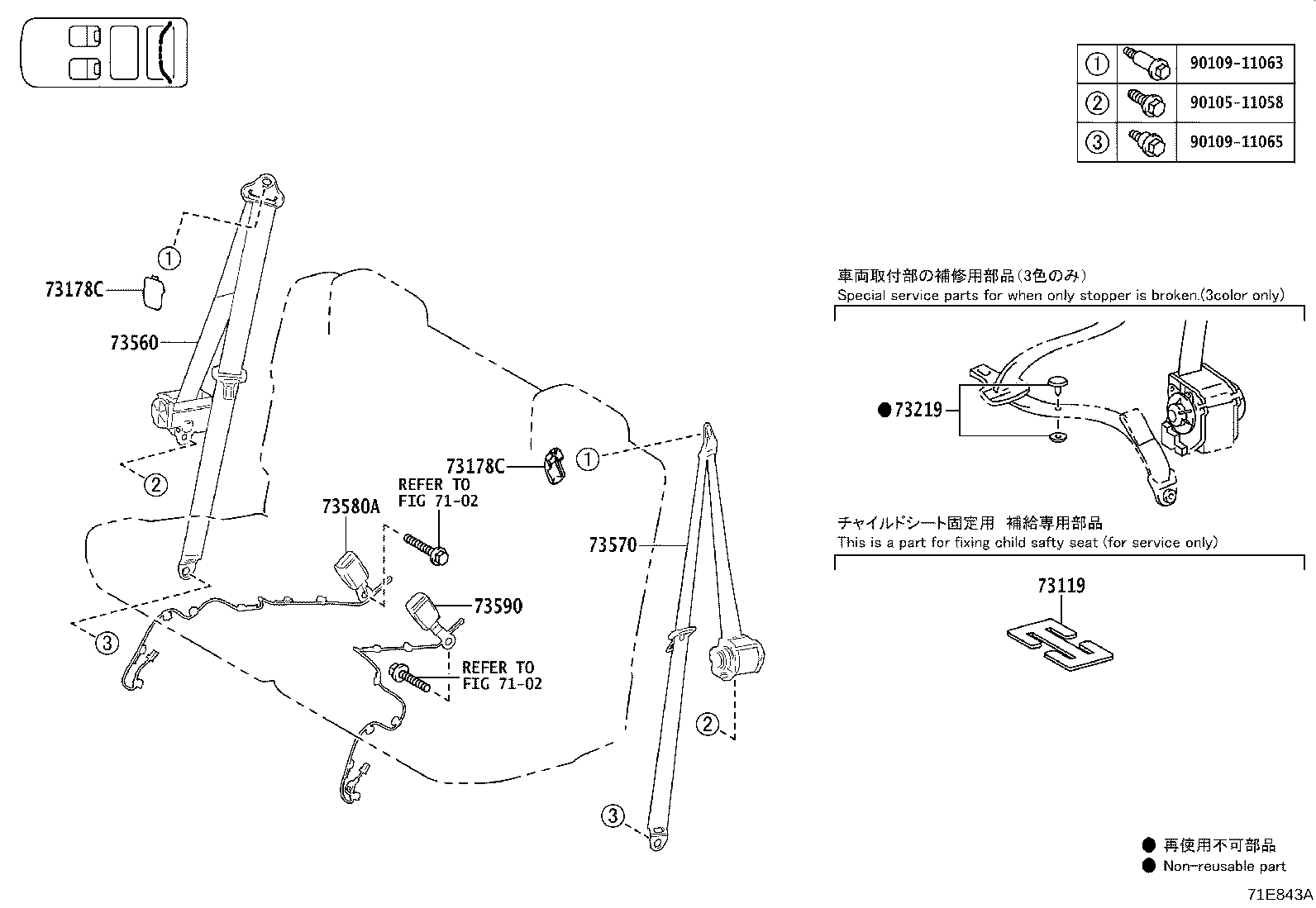

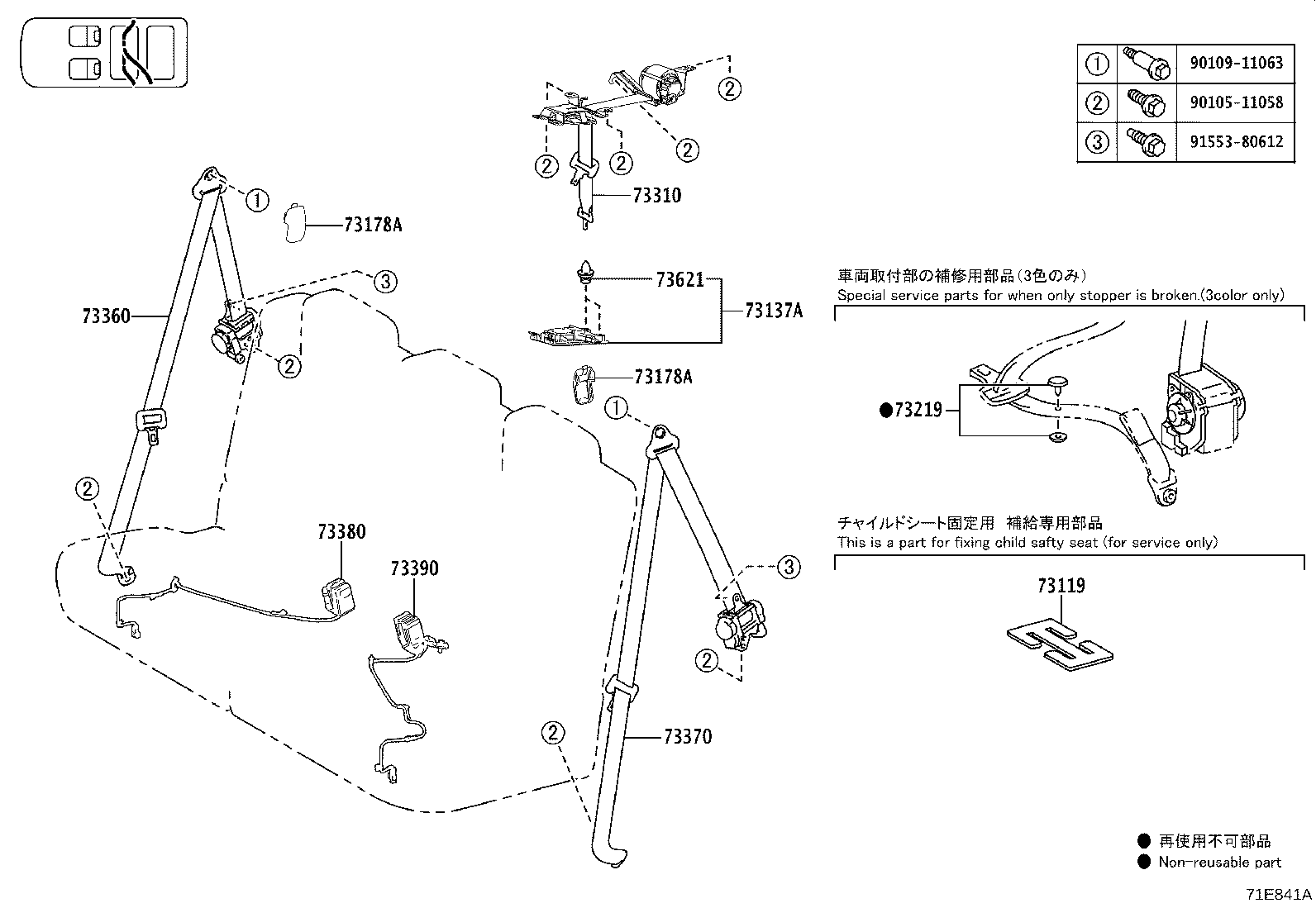

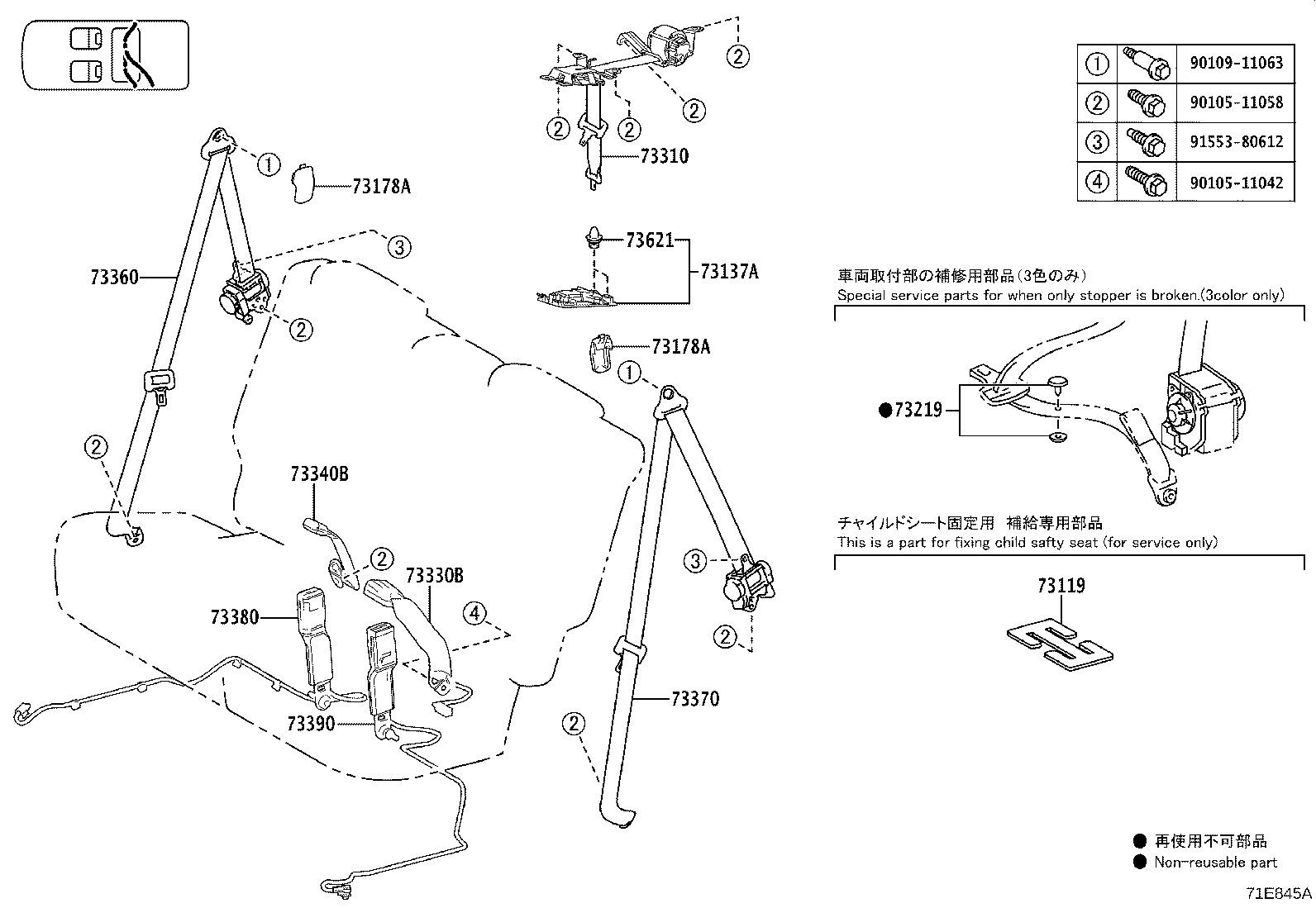

Figure 71E839A 71E839A 2022-07 → — Figure 71E845A 71E845A 2022-07 → — Figure 71E841A 71E841A 2022-07 → — Figure 71E843A 71E843A 2022-07 → —

Part groups

PNCDescription
73119 Plate, Seat Belt Webbing Clip
73137A Cover, Shoulder Belt Anchor, Upr
73178A Cap, Seat Belt Anchor Cover
73178C Cap, Seat Belt Anchor Cover
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73310 Belt Assy, Rear Seat 3 Point Type, RH
73330B Belt Assy, Seat Lap Type, NO.1
73340B Belt Assy, Seat Lap Type, NO.2
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580A Belt Sub Assy, Rear NO.2 Seat, Inner
73590 Belt Assy, Rear NO.2 Seat, Inner LH
73621 Clip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
