Toyota Sienta (JPP)

2022-07 → present · chassis MXPC10,MXPL10 · catalogue 119340 · General

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

12 part groups · 2 illustrations

Illustrations

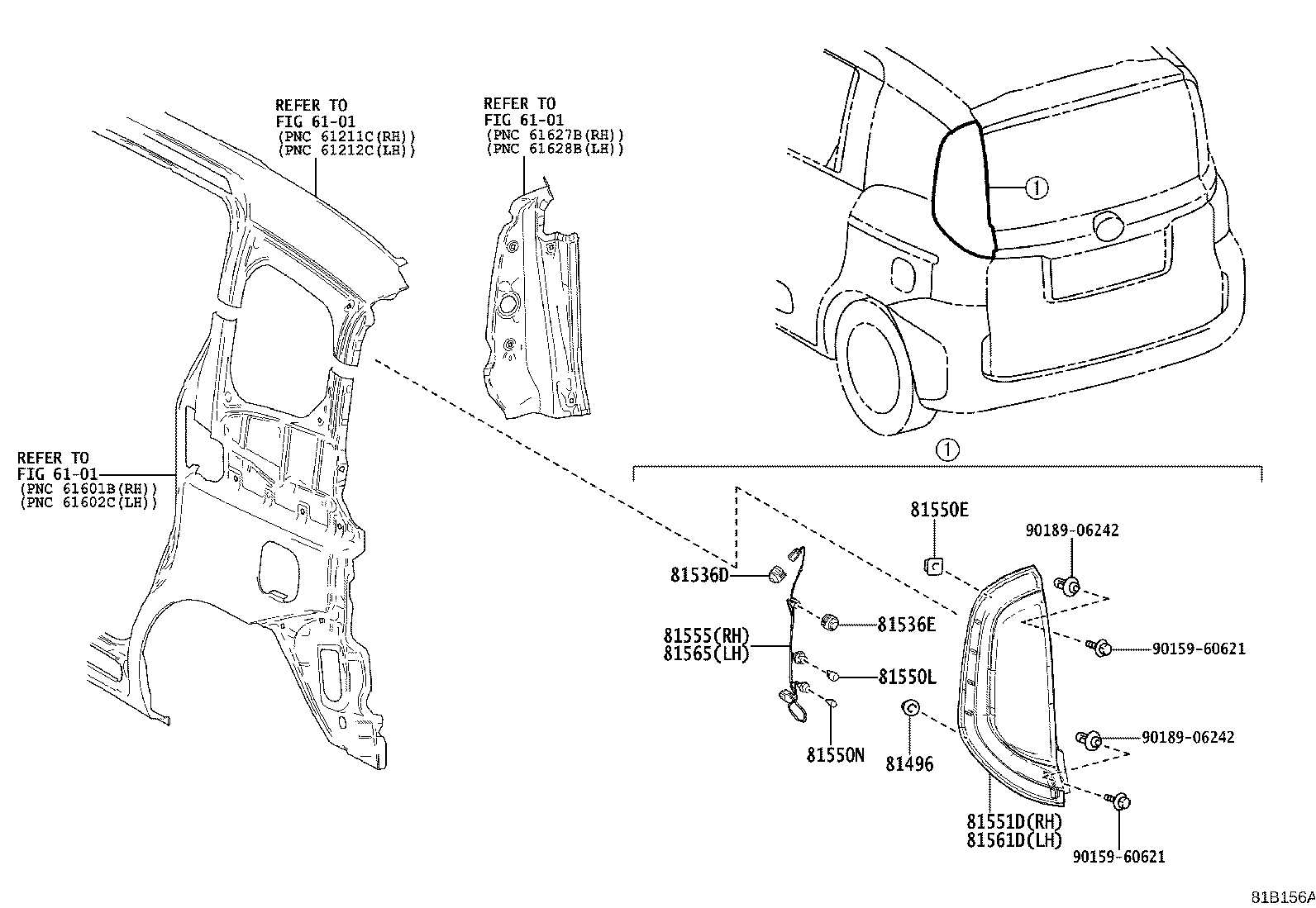

Figure 81B155A 81B155A 2022-07 → — Figure 81B156A 81B156A 2022-07 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81536C Led, Tail & Stop Lamp
81536D Led, Taillamp
81536E Led, Stop Lamp
81550E Clip(FOR REAR COMBINATION LAMP)
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81552C Gasket, Rear Combination Lamp
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561D Lens & Body, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
