Toyota Sienta (JPP)

2022-07 → present · chassis MXPC10,MXPL10 · catalogue 119340 · General

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

9 part groups · 2 illustrations

Illustrations

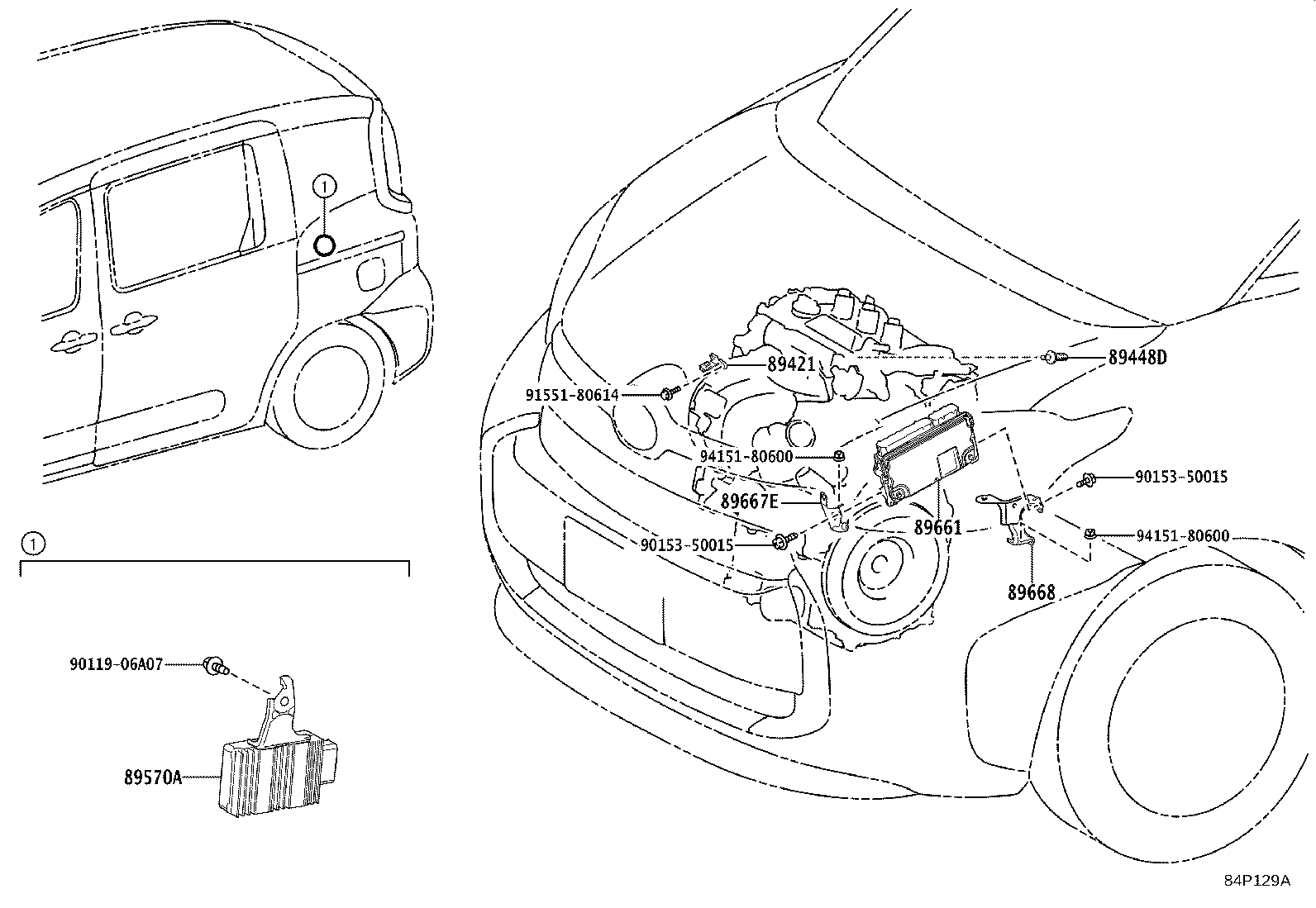

Figure 84P128A 84P128A 2022-07 → — Figure 84P129A 84P129A 2022-07 → —

Part groups

PNCDescription
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89448D Sensor, Oil Pressure & Temperature
89458 Sensor, Fuel Pressure
89570A Computer Assy, Fuel Pump Control
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
