Toyota Sienta (JPP)
2022-07 → present · chassis MXPC10,MXPL10 · catalogue 119340 · General
Supported model
Data version 2022-07
Hev Inverter
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|

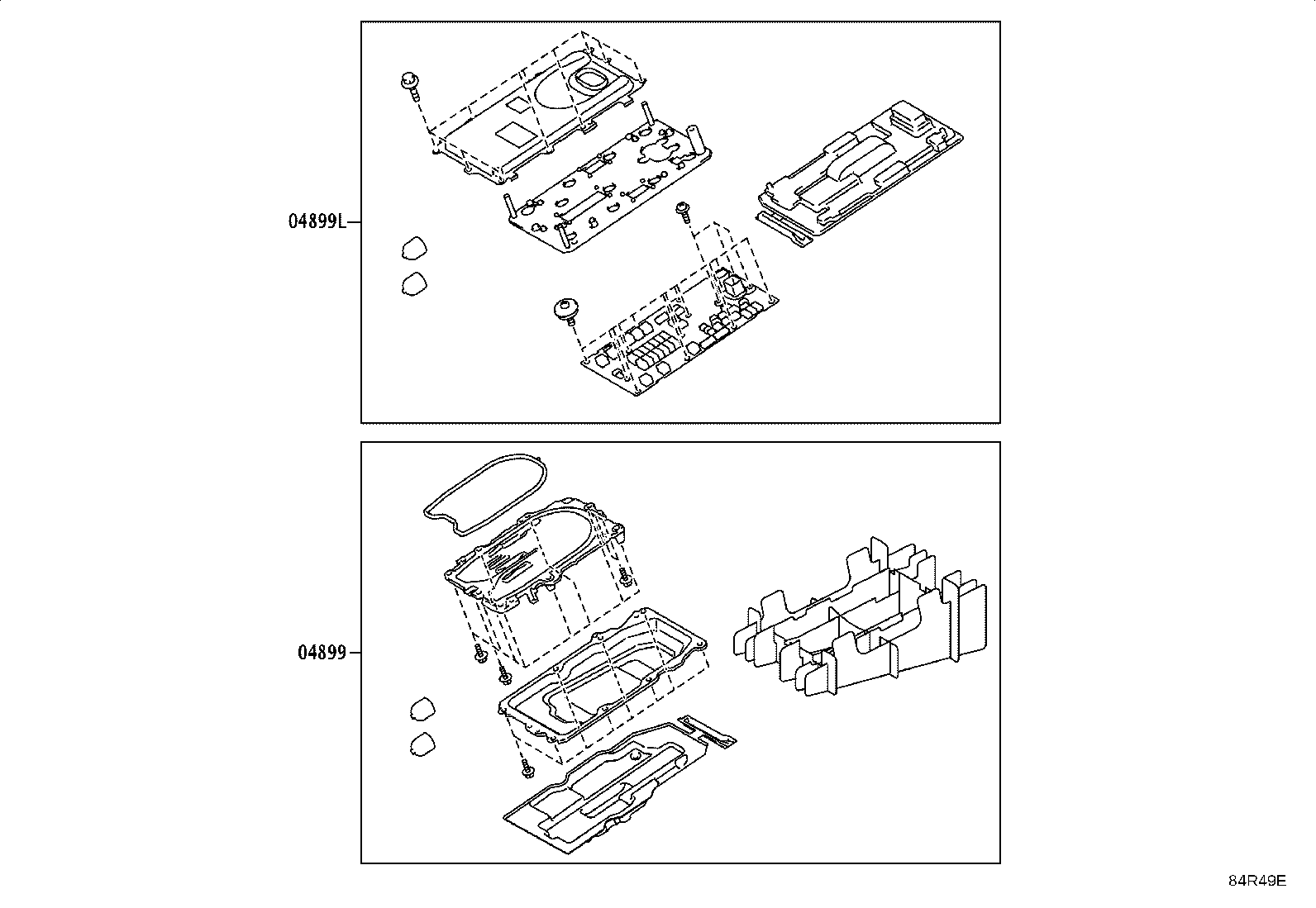

| 04899 | Converter Kit, HV |
| 04899L | Computer Kit, Motor Generator Control |
| G9022A | Cover Sub-assy, Inverter, Upper |
| G9118B | Label, Power Control Unit Caution |
| G9214 | Bracket, Inverter, NO.1 |
| G9215 | Bracket, Inverter, NO.2 |
| G921E | Protector, Inverter |
| G92A0 | Inverter Assy, Hybrid Motor Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
