Toyota Sienta (ASIA)

2016-07 → present · chassis NSP170 · catalogue 11A310 · General

Supported model Data version 2019-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

18 part groups · 6 illustrations

Illustrations

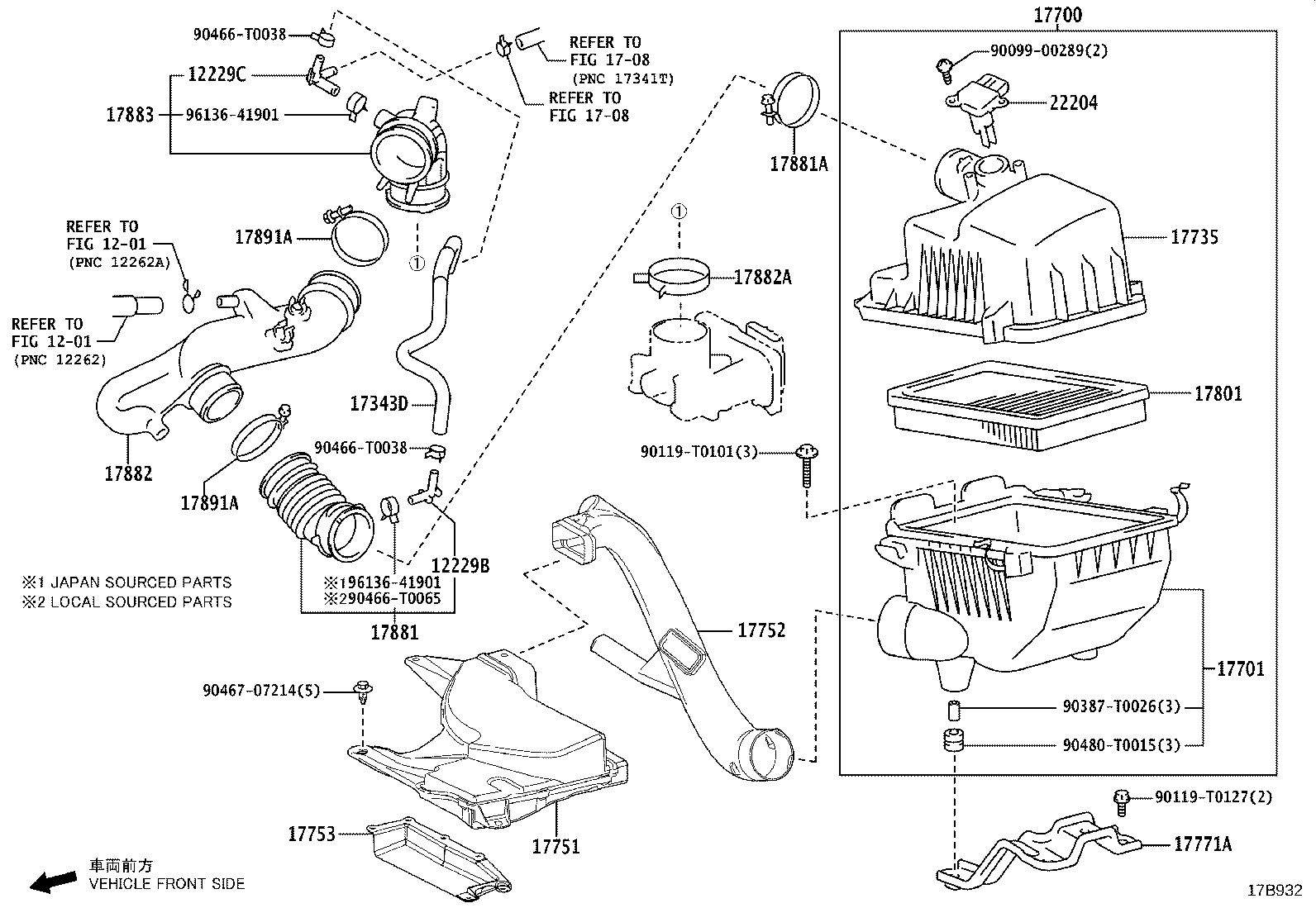

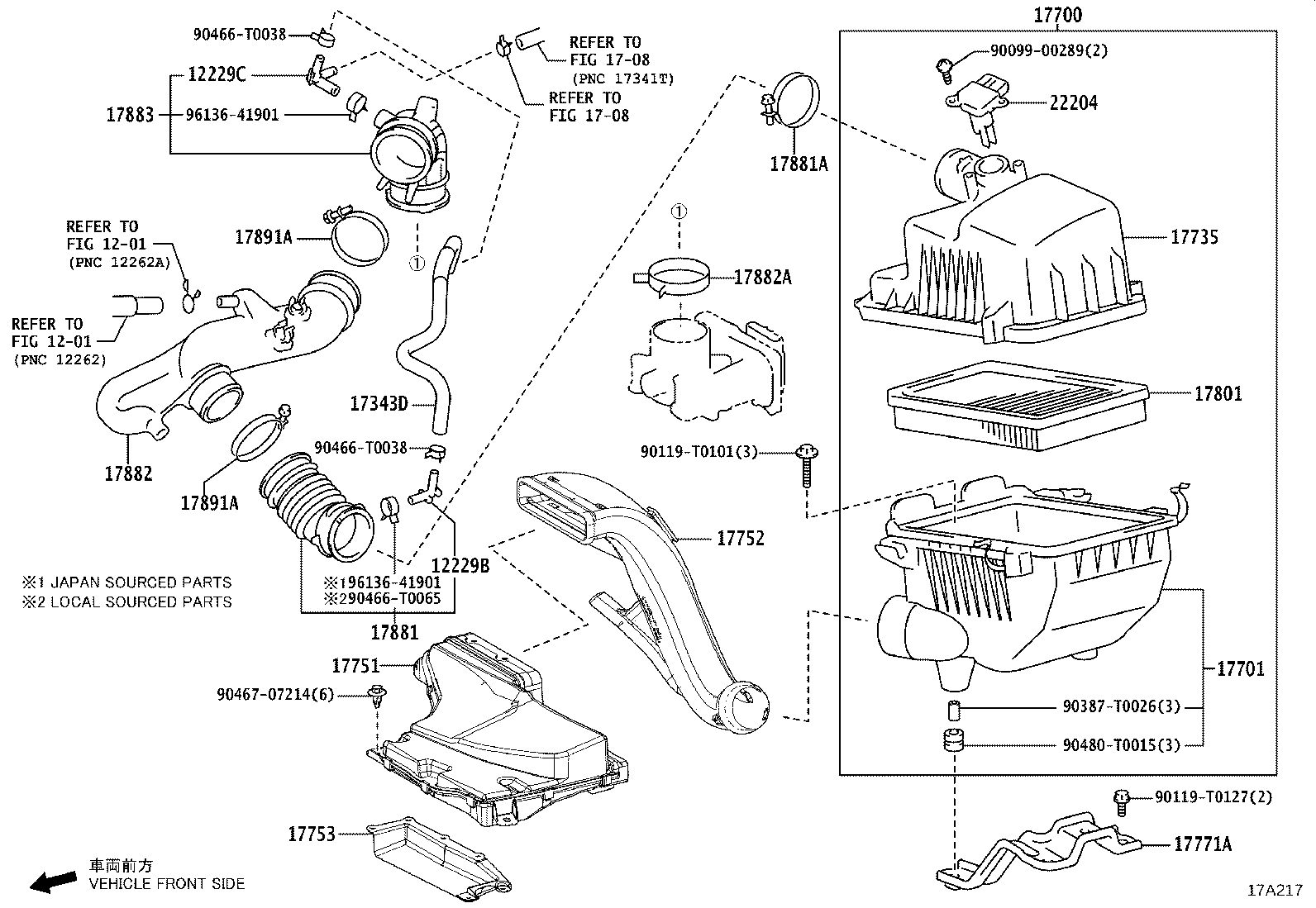

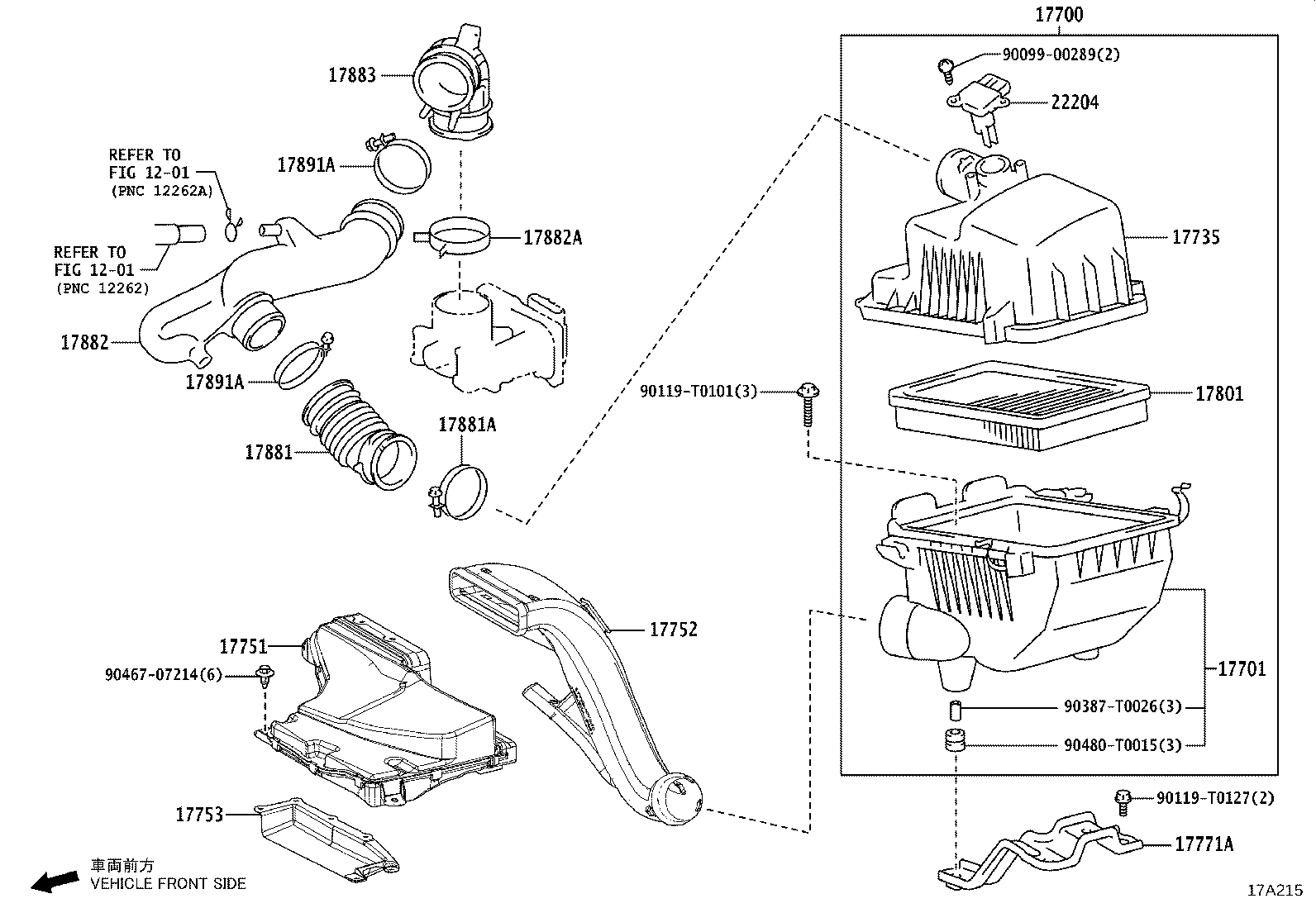

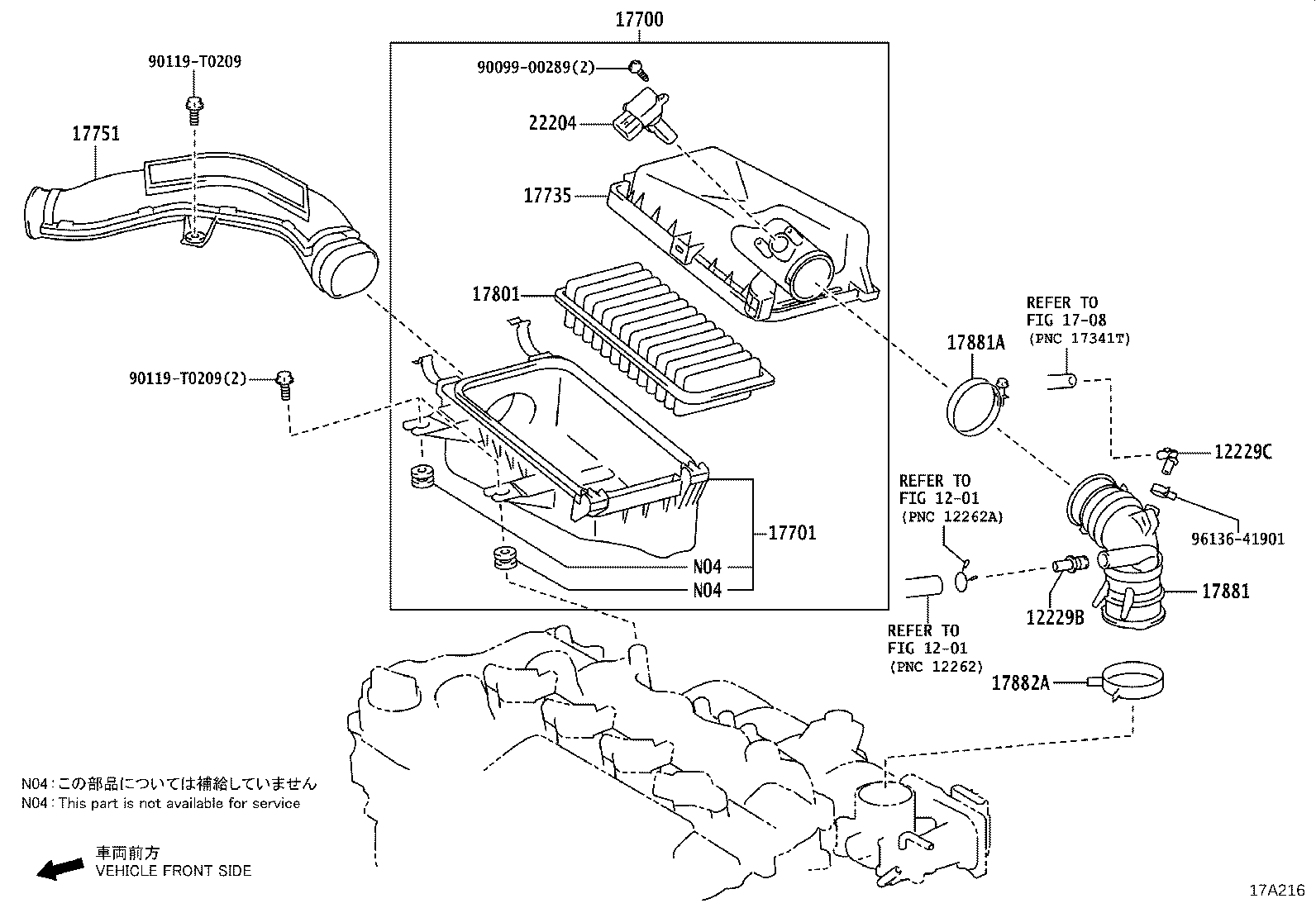

Figure 179319A 179319A 2016-07 → 2018-03 Figure 17A215 17A215 2018-03 → — Figure 17A216 17A216 2018-03 → — Figure 17A217 17A217 2018-03 → 2020-12 Figure 17A217 17A217 2020-12 → — Figure 17B932 17B932 2020-12 → —

Part groups

PNCDescription
12229B Pipe, Ventilation, NO.1
12229C Pipe, Ventilation, NO.2
17343D Hose, Air, NO.3
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17735 Cap, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17753 Inlet, Air Cleaner, NO.3
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17891A Clamp, Air Cleaner Hose
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
