Toyota Sienta (ASIA)

2016-07 → present · chassis NSP170 · catalogue 11A310 · General

Supported model Data version 2019-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

7 part groups · 5 illustrations

Illustrations

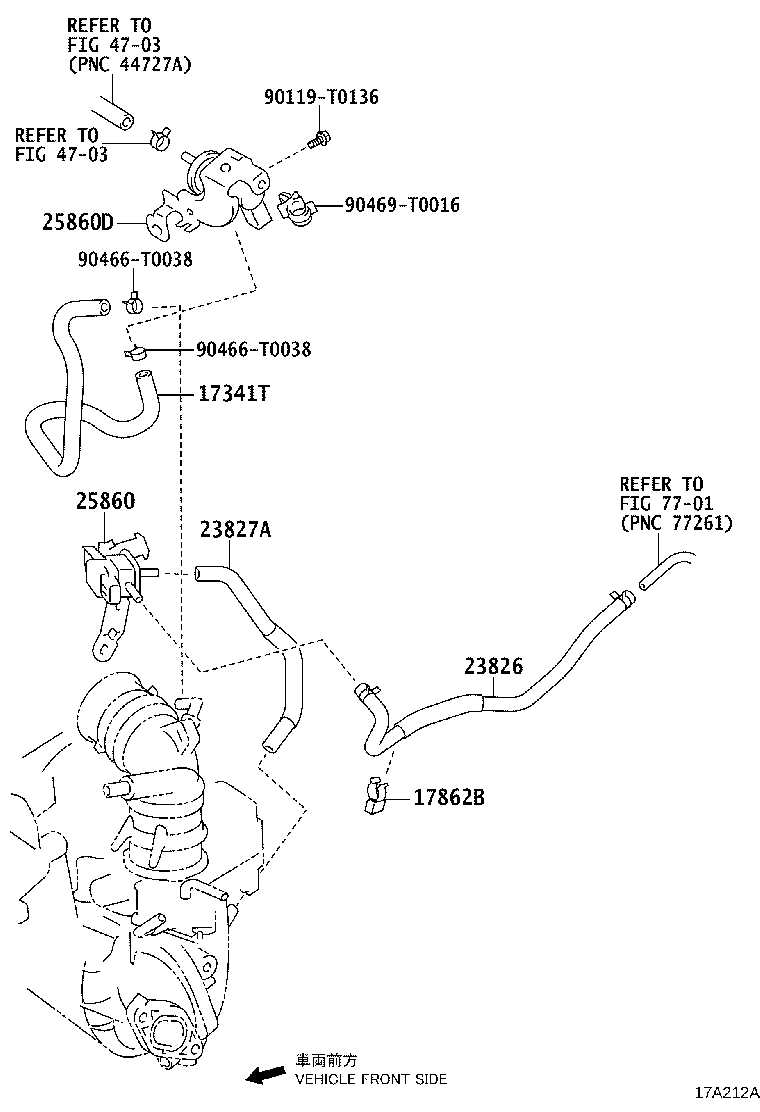

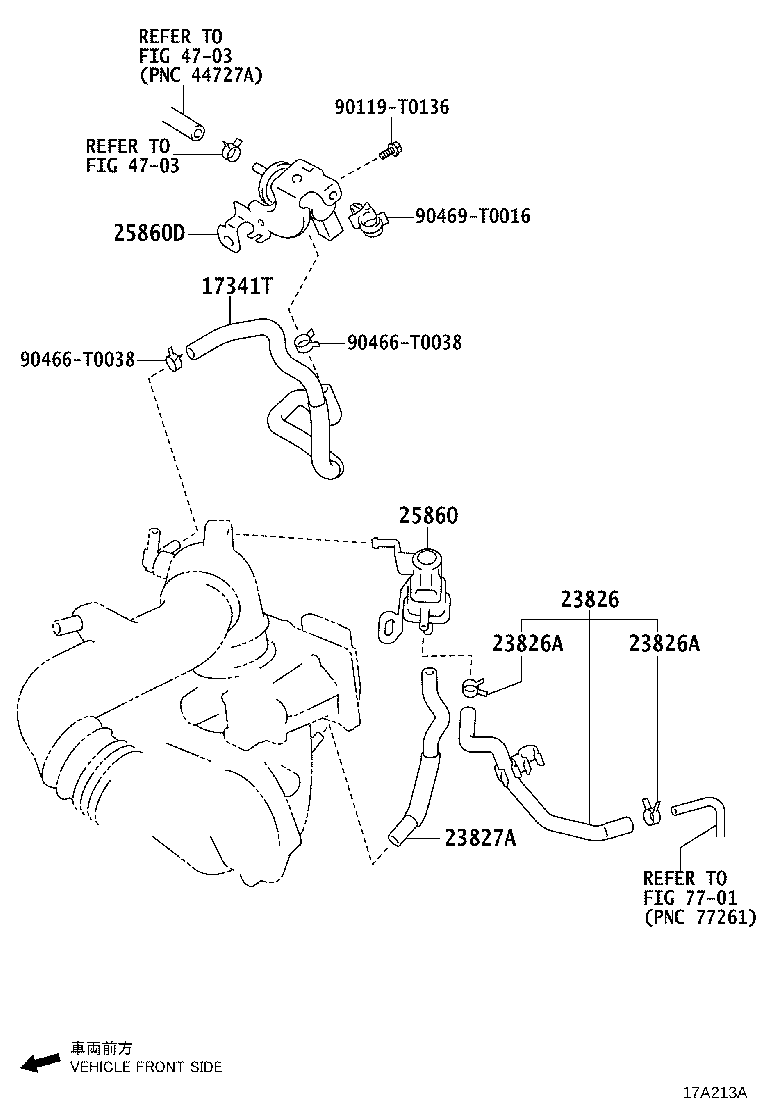

Figure 179353A 179353A 2016-07 → 2018-03 Figure 179352B 179352B 2016-07 → 2018-03 Figure 17A212A 17A212A 2018-03 → — Figure 17A214 17A214 2018-03 → — Figure 17A213A 17A213A 2018-03 → —

Part groups

PNCDescription
17341T Hose, Air, NO.1
17862B Clamp, Hose
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
