Toyota Sienta (ASIA)
2016-07 → present · chassis NSP170 · catalogue 11A310 · General
Supported model
Data version 2019-06

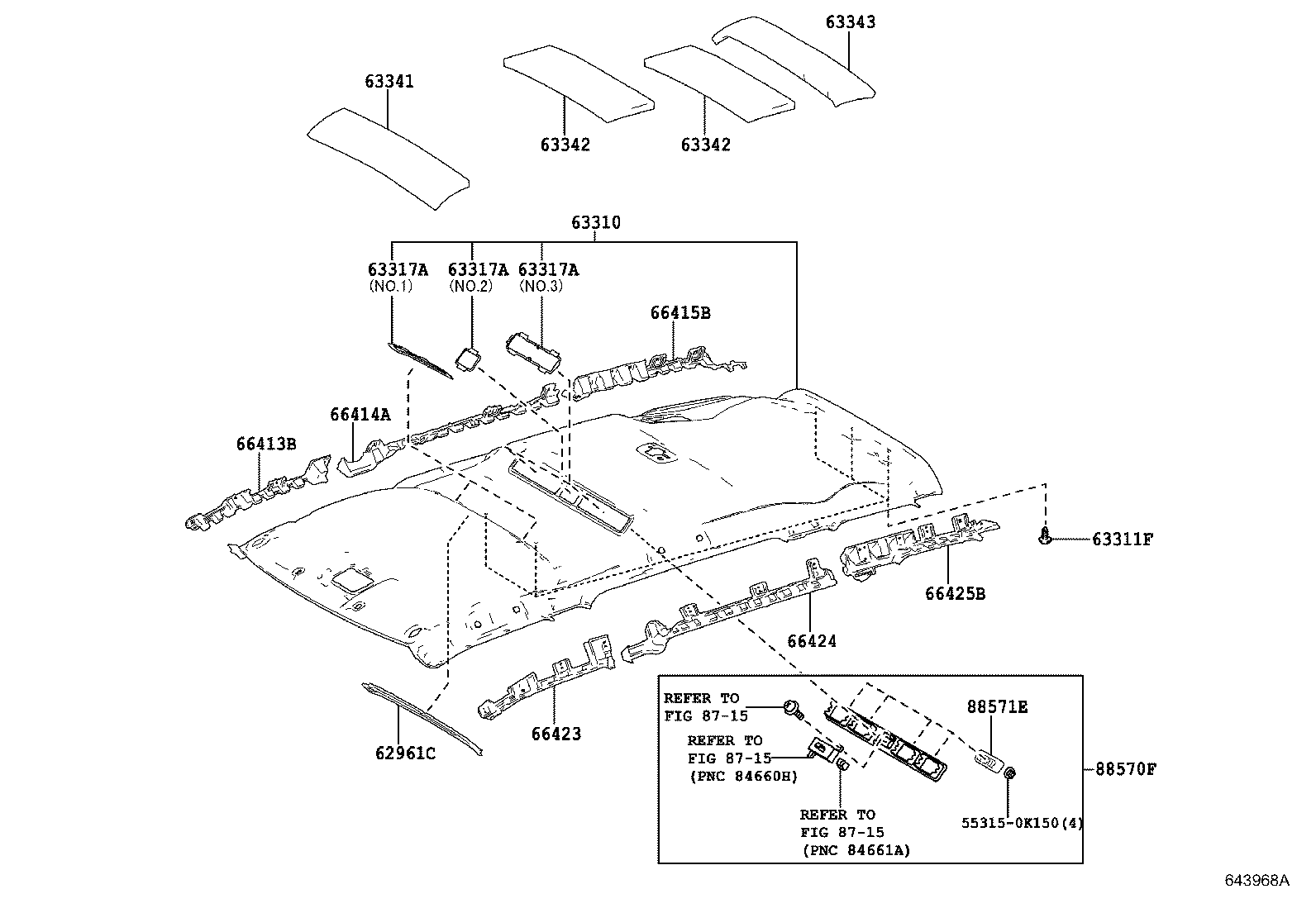

Roof Headlining & Silencer Pad
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62961C | Grille, Room Vent |
| 63310 | Headlining Assy, Roof |
| 63311F | Clip, Roof Headlining, NO.1 |
| 63317A | Retainer, Roof Headlining |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 66413B | Spacer, Side Rail, Front RH |
| 66414A | Spacer, Side Rail, Rear RH |
| 66415B | Spacer, Side Rail, Rear NO.2 RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66424 | Spacer, Side Rail, Rear LH |
| 66425B | Spacer, Side Rail, Rear NO.2 LH |
| 88570F | Grille Assy, Air Outlet |
| 88571E | Grille, Cooler Air Outlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
