Toyota Sienta (ASIA)
2016-07 → present · chassis NSP170 · catalogue 11A310 · General
Supported model
Data version 2019-06
Seat Belt & Child Restraint Seat

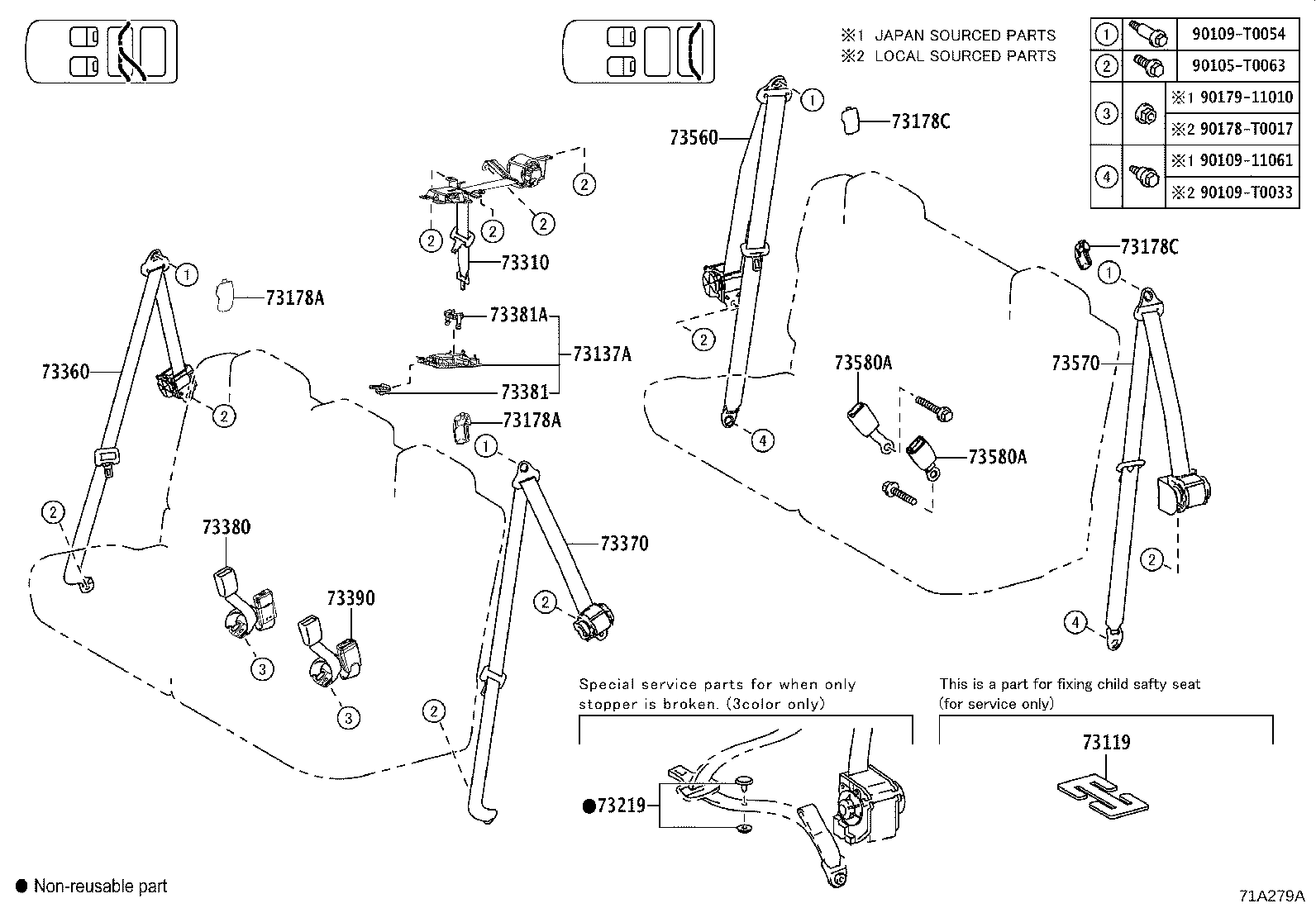

22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 73119 | Plate, Seat Belt Webbing Clip |
| 73137A | Cover, Shoulder Belt Anchor, Upr |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73178C | Cap, Seat Belt Anchor Cover |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73223B | Cover, Front Seat Belt Retractor, RH |
| 73224B | Cover, Front Seat Belt Retractor, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73310 | Belt Assy, Rear Seat 3 Point Type, RH |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73380 | Belt Assy, Rear Seat 3 Point Type, Inner, RH |
| 73381 | Holder, Rear Seat Belt |
| 73381A | Holder, Rear Seat Belt NO.2 |
| 73390 | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
| 73580A | Belt Sub Assy, Rear NO.2 Seat, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
