Toyota Sienta (ASIA)

2016-07 → present · chassis NSP170 · catalogue 11A310 · General

Supported model Data version 2019-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

17 part groups · 2 illustrations

Illustrations

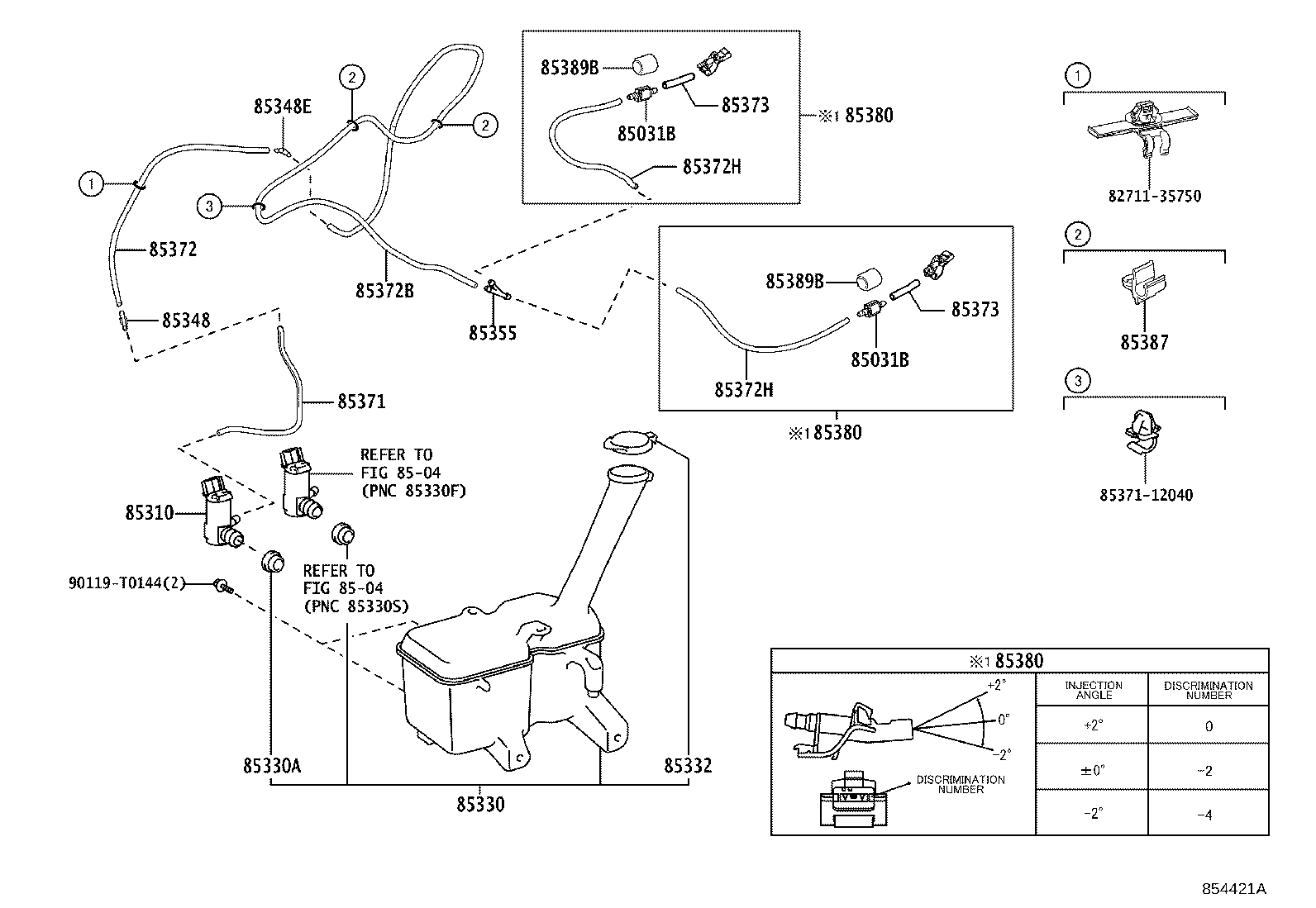

Figure 853588D 853588D 2016-07 → 2020-02 Figure 854421A 854421A 2020-02 → —

Part groups

PNCDescription
85031B Valve Sub-assy, Washer
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348E Joint, Windshield Washer Elbow, NO.2
85355 Valve, Windshield Washer Hose
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85380 Nozzle & Hose Assy, FR Washer
85387 Clamp NO.1 (FOR WINDSEIELD WASHER)
85389B Protector, Windshield Washer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
