Toyota Sienta (TAIWAN)
2016-11 → present · chassis NSP170,ZSP170 · catalogue 11B310 · General
Supported model
Data version 2020-11

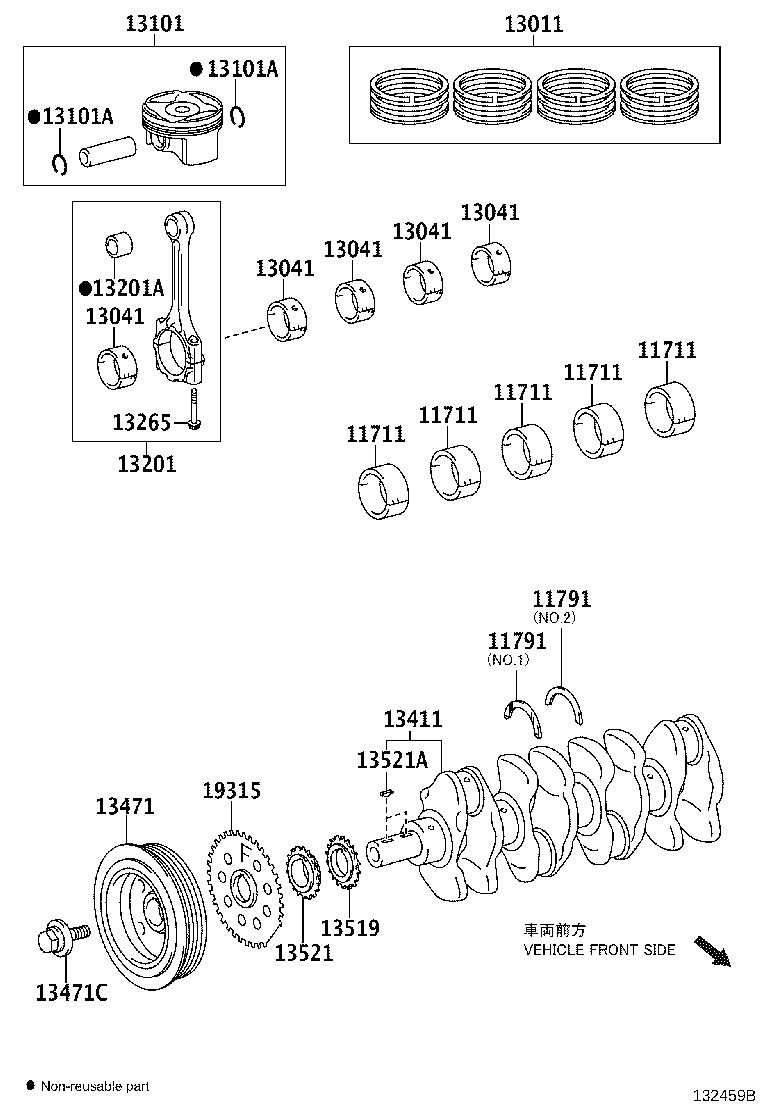

Crankshaft & Piston
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11711 | Bearing, Crankshaft |
| 11791 | Washer, Crankshaft Thrust, Upper |
| 13011 | Ring Set, Piston |
| 13041 | Bearing, Connecting Rod |
| 13101 | Piston Sub-assy, W/Pin |
| 13101A | Ring, Hole Snap(FOR PISTON PIN) |
| 13201 | Rod Sub-assy, Connecting |
| 13201A | Bush(FOR CONNECTING ROD SMALL END) |
| 13211 | Piston |
| 13251 | Pin, Piston |
| 13265 | Bolt, Connecting Rod |
| 13411 | Crankshaft |
| 13470 | Pulley Assy, Crankshaft |
| 13471 | Pulley, Crankshaft |
| 13471C | Bolt(FOR CRANKSHAFT PULLEY SET) |
| 13519 | Gear, Oil Pump Drive |
| 13521 | Gear OR Sprocket, Crankshaft Timing |
| 13521A | Key(FOR CRANKSHAFT TIMING GEAR) |
| 19315 | Plate, Crank Angle Sensor, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
