Toyota Sienta (TAIWAN)

2016-11 → present · chassis NSP170,ZSP170 · catalogue 11B310 · General

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

17 part groups · 2 illustrations

Illustrations

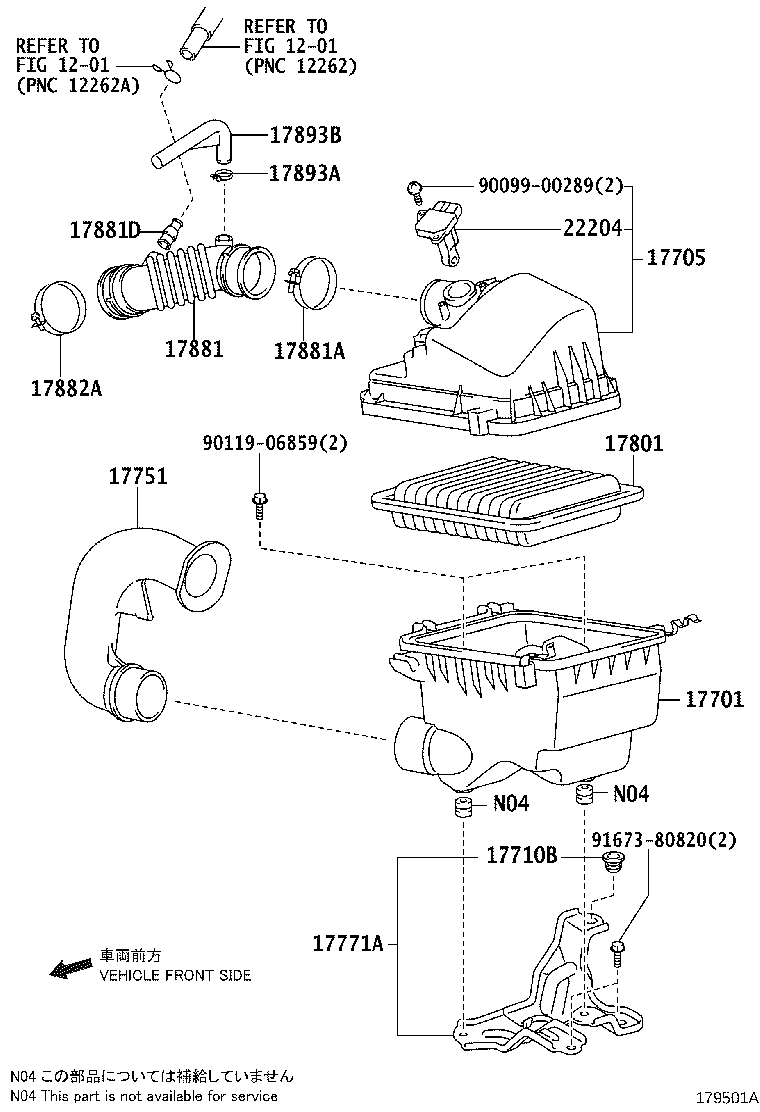

Figure 179514A 179514A 2016-11 → — Figure 179501A 179501A 2016-11 → —

Part groups

PNCDescription
12229B Pipe, Ventilation, NO.1
12229C Pipe, Ventilation, NO.2
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17735 Cap, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881D Tube, Union(FOG AIR CLEANER HOSE)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893A Clamp, Hose
17893B Resonator, Intake Air, NO.2
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
