Toyota Sienta (TAIWAN)
2016-11 → present · chassis NSP170,ZSP170 · catalogue 11B310 · General
Supported model
Data version 2020-11

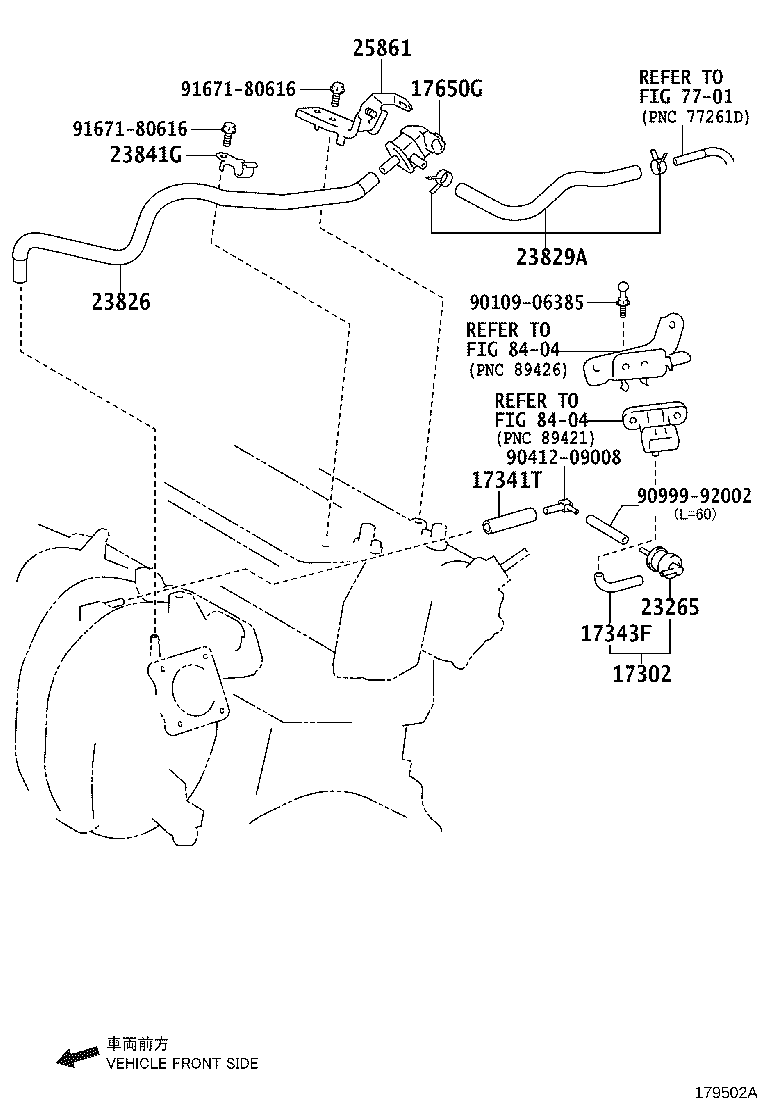

Vacuum Piping
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17302 | Hose Sub-assy, Air |
| 17341T | Hose, Air, NO.1 |
| 17343F | Hose, Air, NO.3 |
| 17650G | Valve, Duty Vacuum Switching |
| 17862B | Clamp, Hose |
| 23265 | Filter, Gas, NO.1 |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23829A | Hose, Fuel Vapor Feed |
| 23841G | Clamp, Fuel Hose |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860D | Valve Assy, Vacuum Switching, NO.2 |
| 25861 | Bracket, Vacuum Switching Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
