Toyota Sienta (TAIWAN)

2016-11 → present · chassis NSP170,ZSP170 · catalogue 11B310 · General

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

14 part groups · 2 illustrations

Illustrations

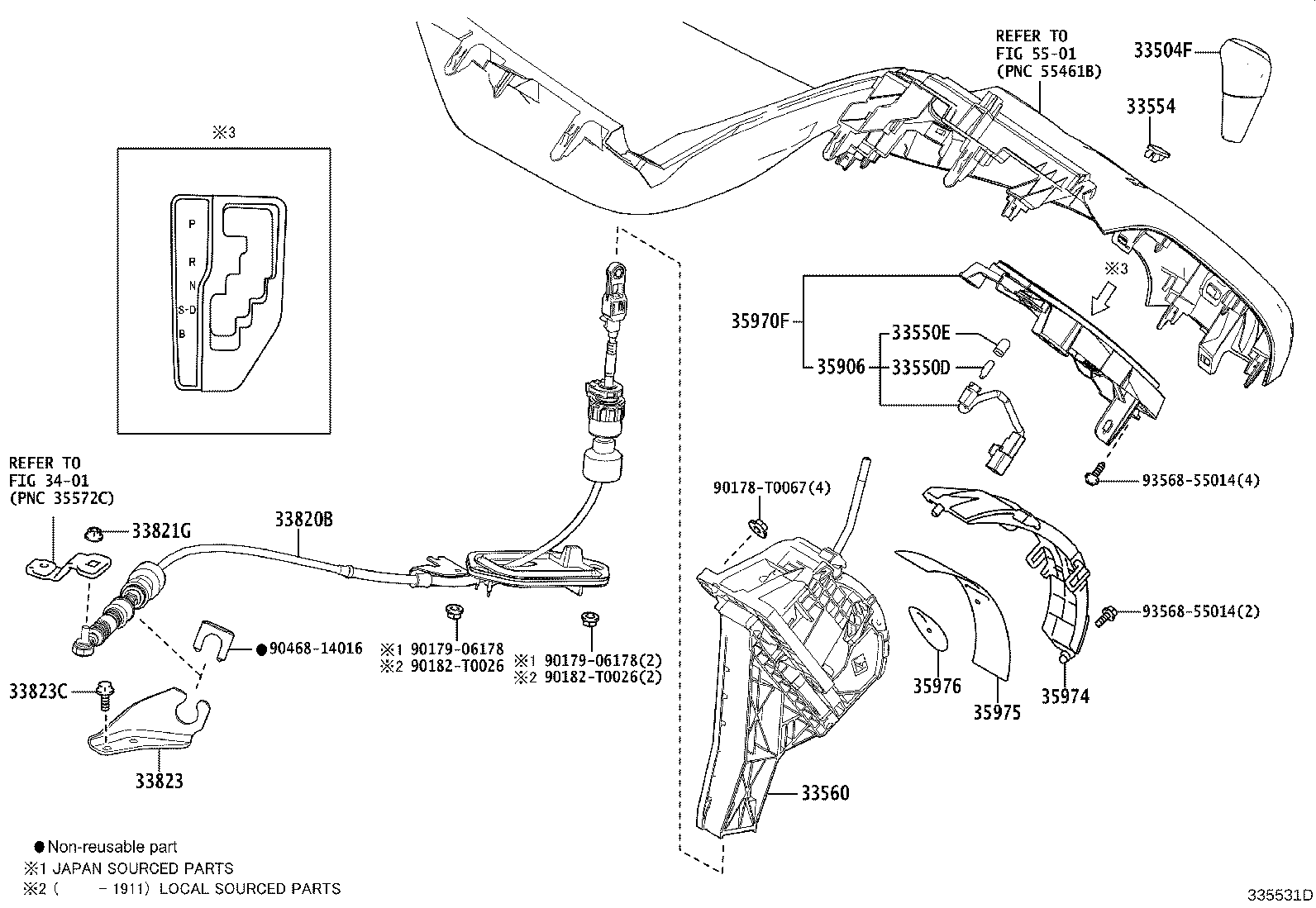

Figure 335530D 335530D 2016-11 → — Figure 335531D 335531D 2016-11 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33554 Cap, Shift Lever
33560 Unit Assy, Shift Lock Control
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
35906 Wire Sub-assy, Indicator Lamp
35970F Housing Assy, Position Indicator
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
