Toyota Sienta (TAIWAN)
2016-11 → present · chassis NSP170,ZSP170 · catalogue 11B310 · General
Supported model
Data version 2020-11

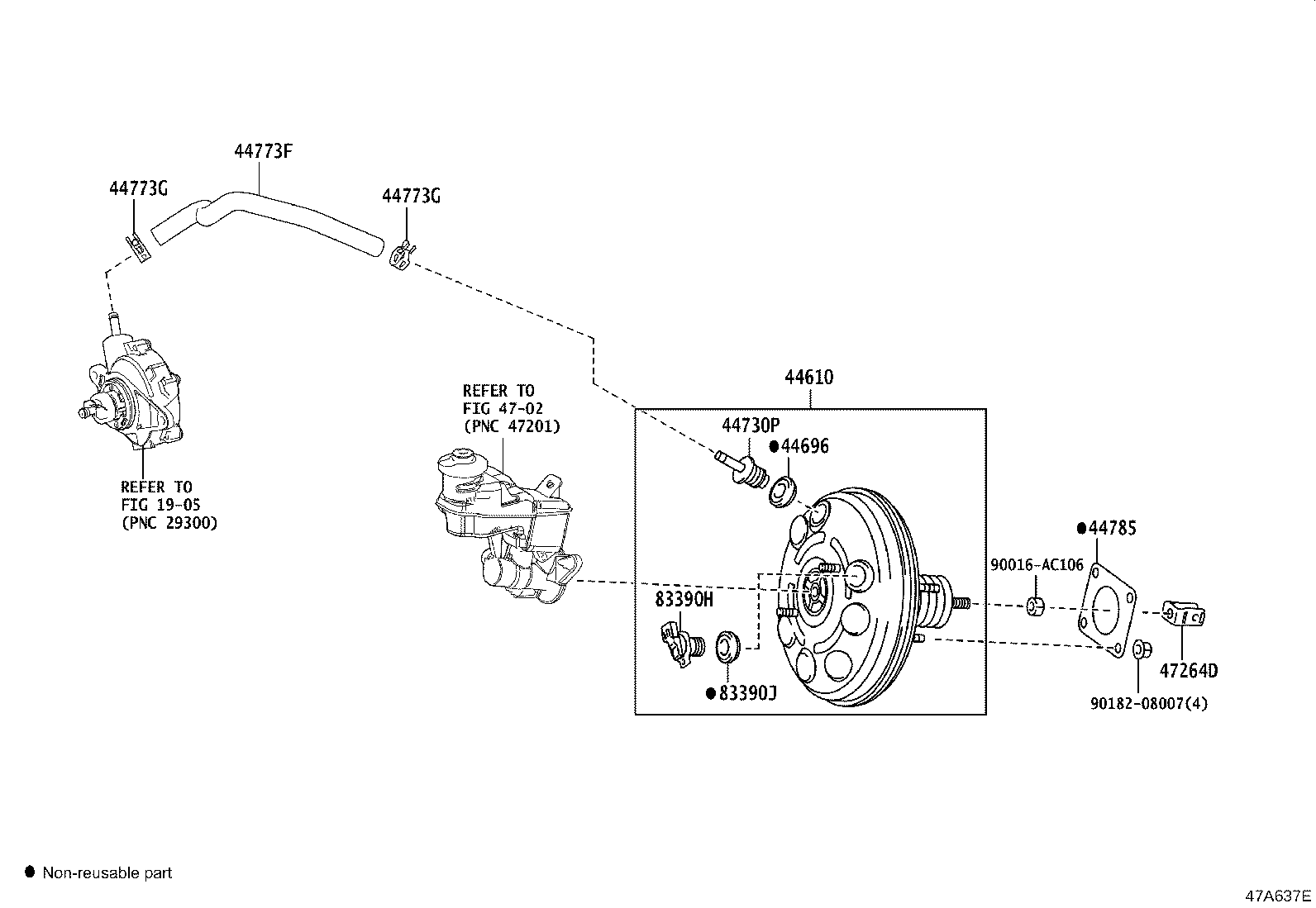

Brake Booster & Vacuum Tube
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44727A | Hose, Air, NO.2 |
| 44730P | Valve Assy, Vacuum Check, NO.1 |
| 44730Q | Valve Assy, Vacuum Check, NO.2 |
| 44763A | Tube, Hose TO Hose, NO.1 |
| 4476B | Ejector, Brake Booster Vacuum |
| 44771 | Hose, Vacuum Tube Connector |
| 44771D | Hose, Vacuum Tube Connector |
| 44772 | Hose, Check Valve TO Connector Tube |
| 44773F | Hose, Union TO Check Valve |
| 44773G | Clip(FOR UNION TO CHECK VALVE HOSE) |
| 44774A | Clip(FOR UNION TO CONNECTOR TUBE HOSE) |
| 44774E | Hose, Union TO Connector Tube |
| 44781 | Bracket, Hose |
| 44783 | Clamp, Vacuum Hose |
| 44785 | Gasket, Brake Booster |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
| 83390H | Switch Assy, Vacuum Warning |
| 83390J | Grommet, Vacuum Warning Switch |
| 89420H | Sensor Assy, Vacuum |
| 89420K | Grommet, Vacuum Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
