Toyota Sienta (TAIWAN)

2016-11 → present · chassis NSP170,ZSP170 · catalogue 11B310 · General

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

13 part groups · 3 illustrations

Illustrations

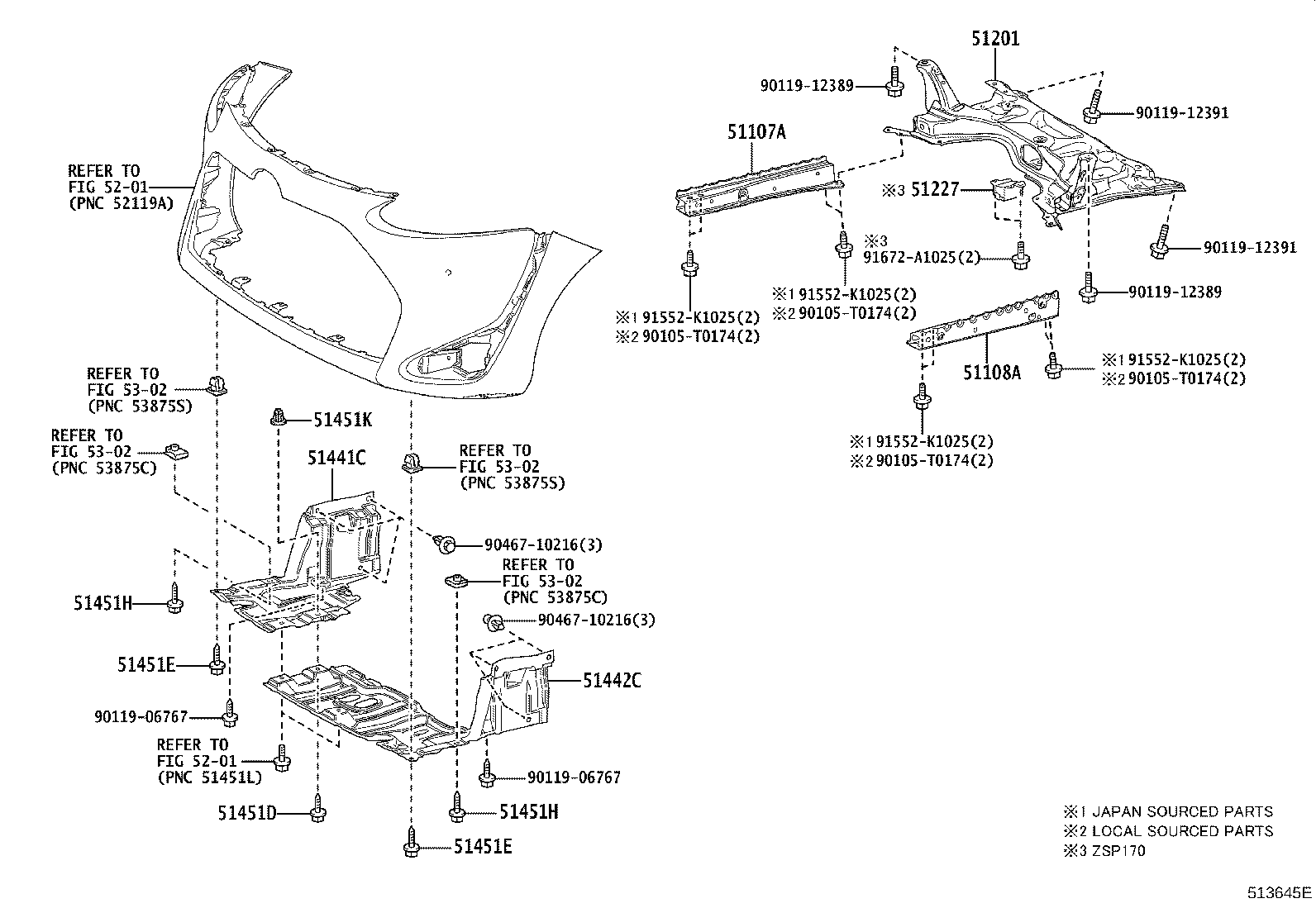

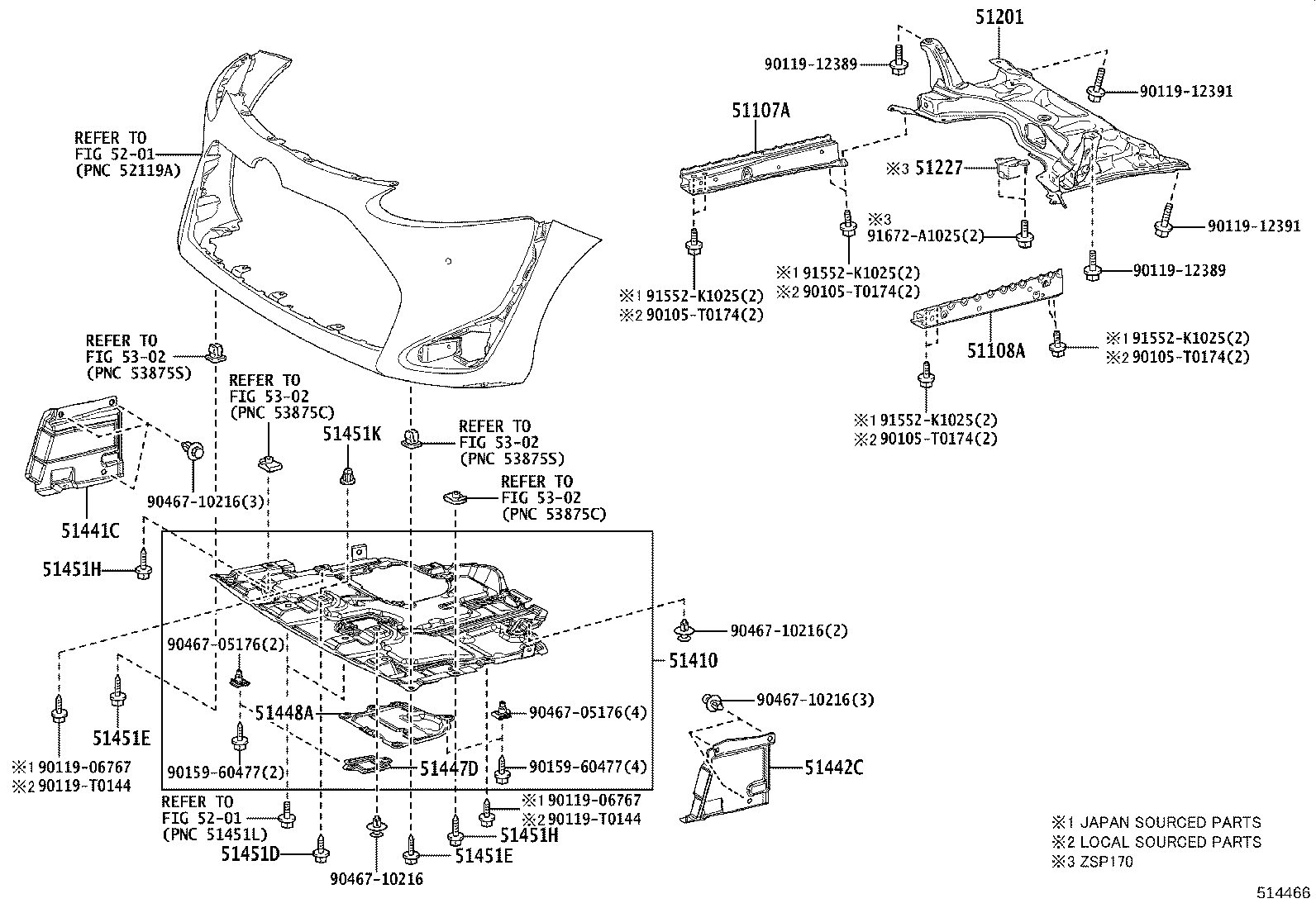

Figure 513091C 513091C 2016-11 → 2019-11 Figure 513645E 513645E 2019-11 → 2023-06 Figure 514466 514466 2023-06 → —

Part groups

PNCDescription
51107A Reinforcement Sub-assy, Side Rail, Rear RH
51108A Reinforcement Sub-assy, Side Rail, Rear LH
51201 Crossmember Sub-assy, Front Suspension
51227 Weight, Front Suspension Member Damper
51410 Cover Assy, Engine Under, NO.1
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51447D Cover, Engine Under, NO.4 Center
51448A Cover, Engine Side Under, RH
51451D Screw, NO.1
51451E Screw, NO.2
51451H Screw, NO.3
51451K Grommet, Screw, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
