Toyota Sienta (TAIWAN)
2016-11 → present · chassis NSP170,ZSP170 · catalogue 11B310 · General
Supported model
Data version 2020-11

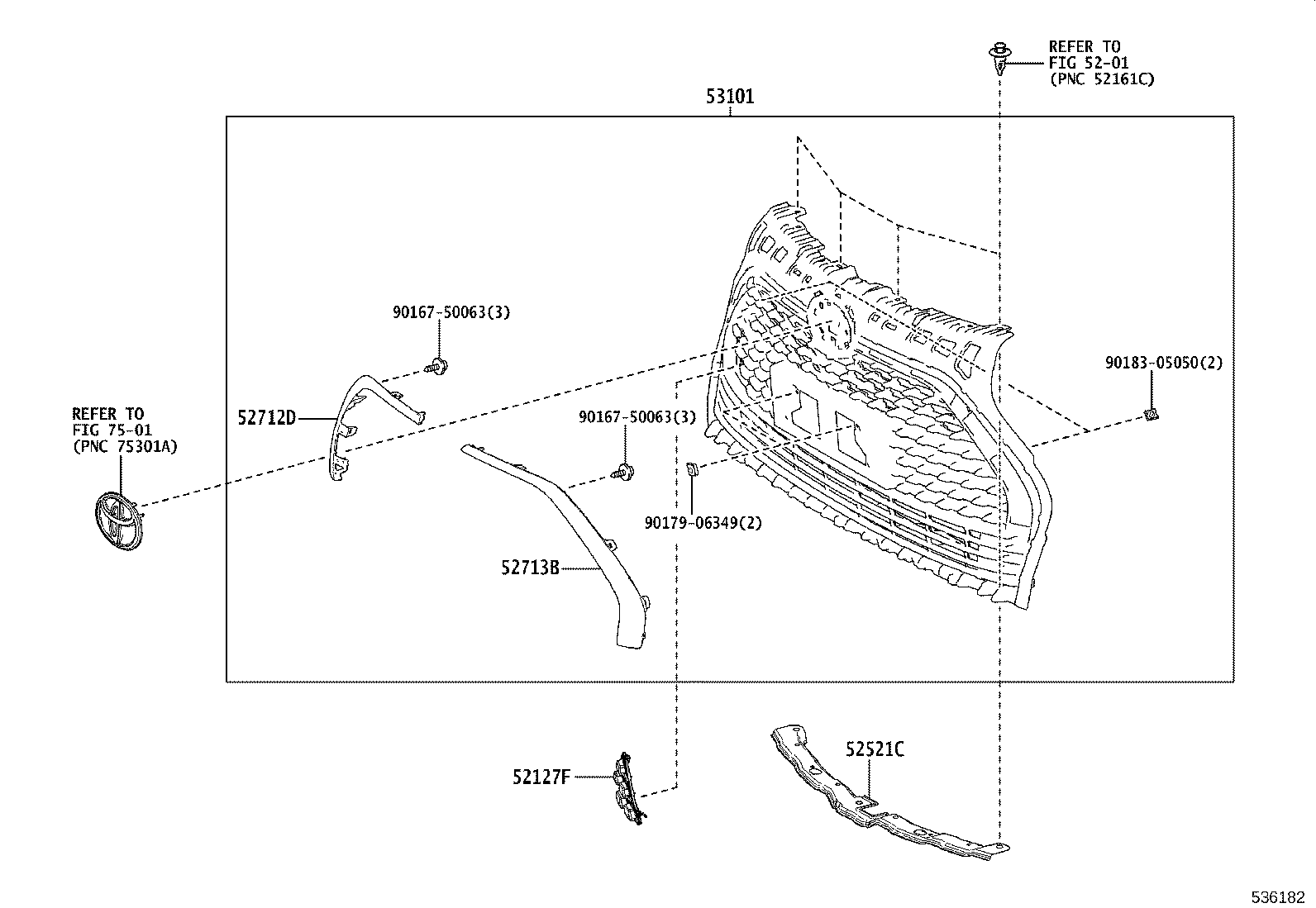

Radiator Grille
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52127F | Cover, Front Bumper Hole |
| 52521C | Retainer, Front Bumper, Upper |
| 52712D | Moulding, Front Bumper Side, RH |
| 52713B | Moulding, Front Bumper Side, LH |
| 53101 | Grille Sub-assy, Radiator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
