Toyota Sienta (TAIWAN)

2016-11 → present · chassis NSP170,ZSP170 · catalogue 11B310 · General

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

14 part groups · 2 illustrations

Illustrations

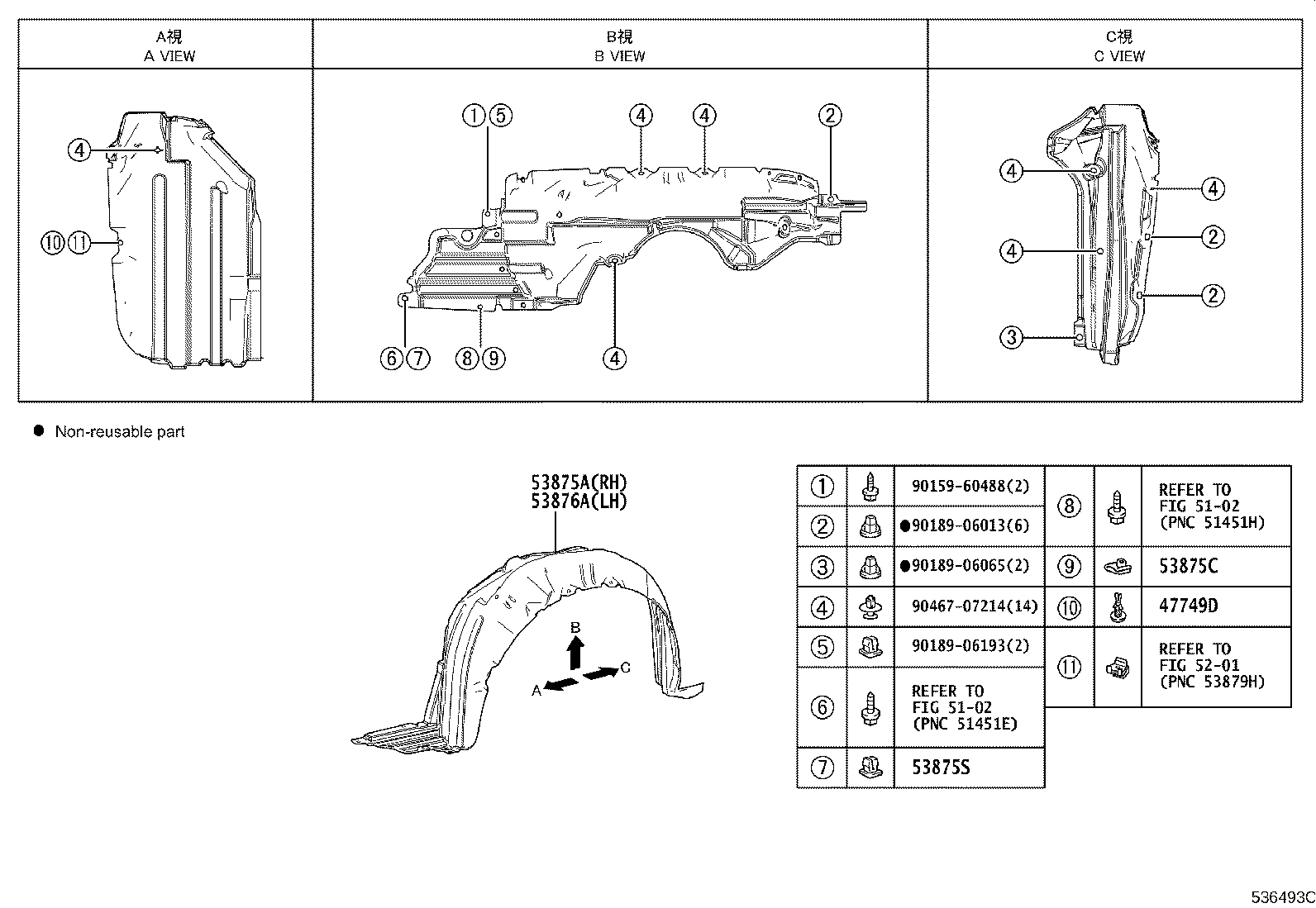

Figure 535156D 535156D 2016-11 → — Figure 536493C 536493C 2016-11 → —

Part groups

PNCDescription
47749D Clip, Pin Hold
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53811A Panel, Front Fender, RH
53812C Panel, Front Fender, LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875S Grommet, NO.1
53876A Liner, Front Fender, LH
53882F Seal, Front Fender
55739G Stopper, Hood
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
