Toyota Sienta (TAIWAN)

2016-11 → present · chassis NSP170,ZSP170 · catalogue 11B310 · General

Supported model Data version 2020-11

Floor Side Member

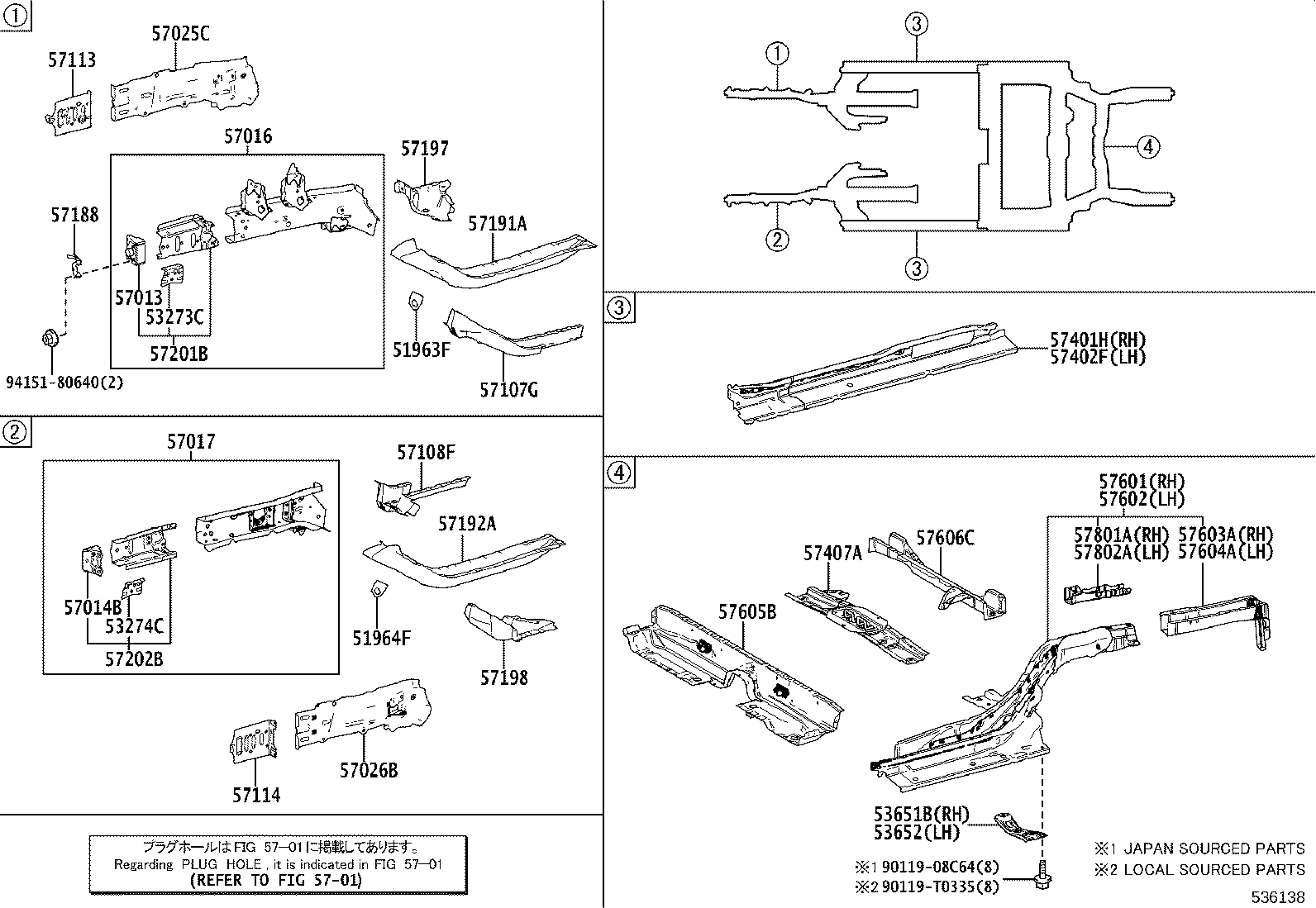

34 part groups · 2 illustrations

PNC	Description
51963F	Hook, Transport
51964F	Hook, Transport, LH
53273C	Reinforcement, Radiator Support, RH
53274C	Reinforcement, Radiator Support, LH
53651B	Brace, Rear Suspension, Upper RH
53652	Brace, Rear Suspension, Upper LH
57013	Bracket Sub-assy, Front Side Member, RH
57014B	Bracket Sub-assy, Front Side Member, LH
57016	Reinforcement Sub-assy, Front Side Member, RH
57017	Reinforcement Sub-assy, Front Side Member, LH
57025C	Member Sub-assy, Front Side, Outer RH
57026B	Member Sub-assy, Front Side, Outer LH
57107G	Bracket Sub-assy, Front Suspension Member Mounting, Rear RH
57108F	Bracket Sub-assy, Front Suspension Member Mounting, Rear LH
57113	Extension, Front Side Member, RH
57114	Extension, Front Side Member, LH
57188	Reinforcement, Front Side Member Extension, RH
57191A	Member, Front Side, Inner Rear RH
57192A	Member, Front Side, Inner Rear LH
57197	Box, Torque, Front RH
57198	Box, Torque, Front LH
57201B	Extension Sub-assy, Front Side Member, RH
57202B	Extension Sub-assy, Front Side Member, LH
57401H	Member Sub-assy, Floor Side, Inner RH
57402F	Member Sub-assy, Floor Side, Inner LH
57407A	Member Sub-assy, Center Floor Cross
57601	Member Sub-assy, Rear Floor Side, RH
57602	Member Sub-assy, Rear Floor Side, LH
57603A	Member Sub-assy, Rear Floor Side, Rear RH
57604A	Member Sub-assy, Rear Floor Side, Rear LH
57605B	Member Sub-assy, Rear Floor Cross, NO.1
57606C	Member Sub-assy, Rear Floor Cross, NO.2
57801A	Reinforcement Sub-assy, Rear Floor Side Member, RH
57802A	Reinforcement Sub-assy, Rear Floor Side Member, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
