Toyota Sienta (TAIWAN)

2016-11 → present · chassis NSP170,ZSP170 · catalogue 11B310 · General

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

46 part groups · 20 illustrations

Illustrations

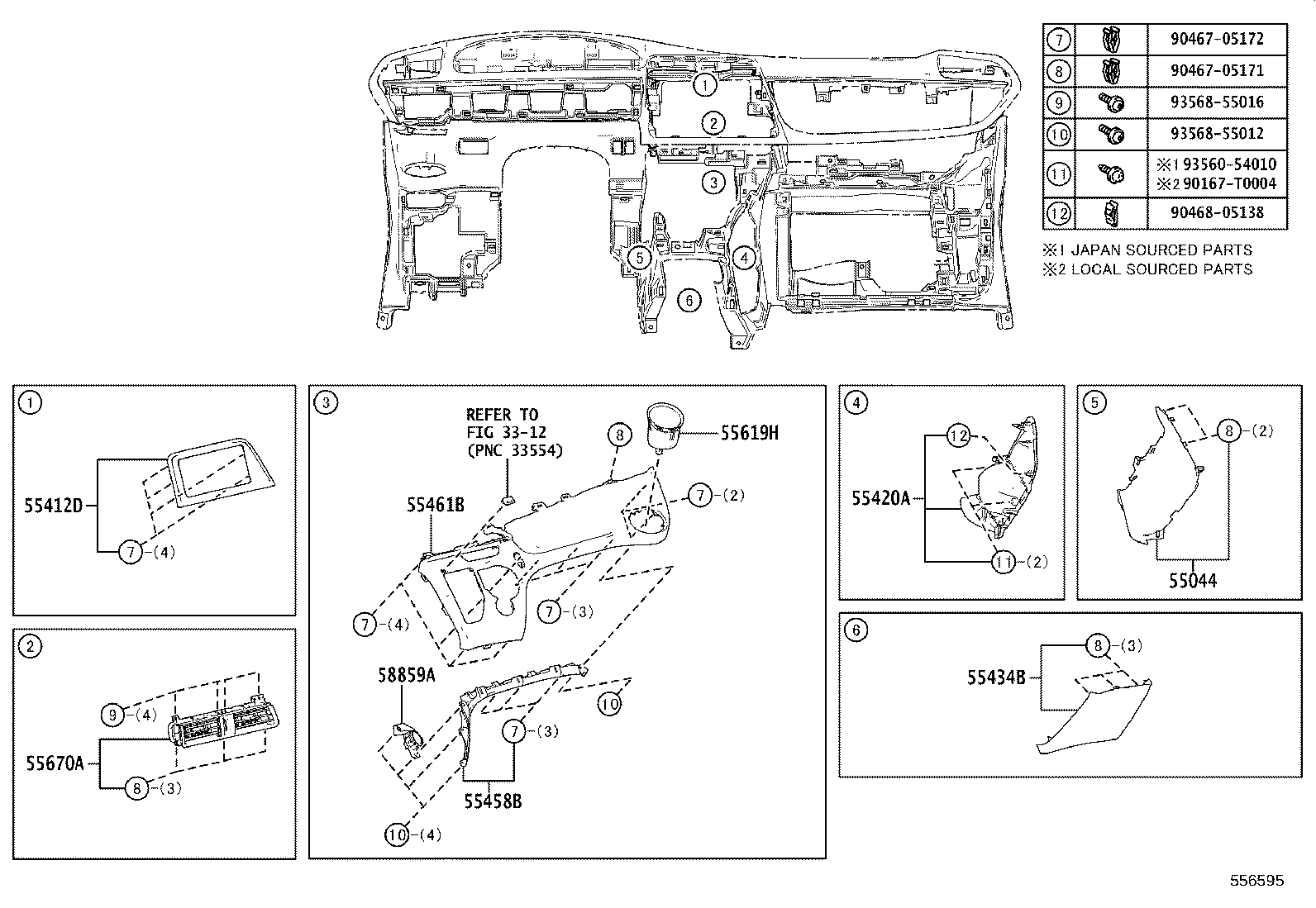

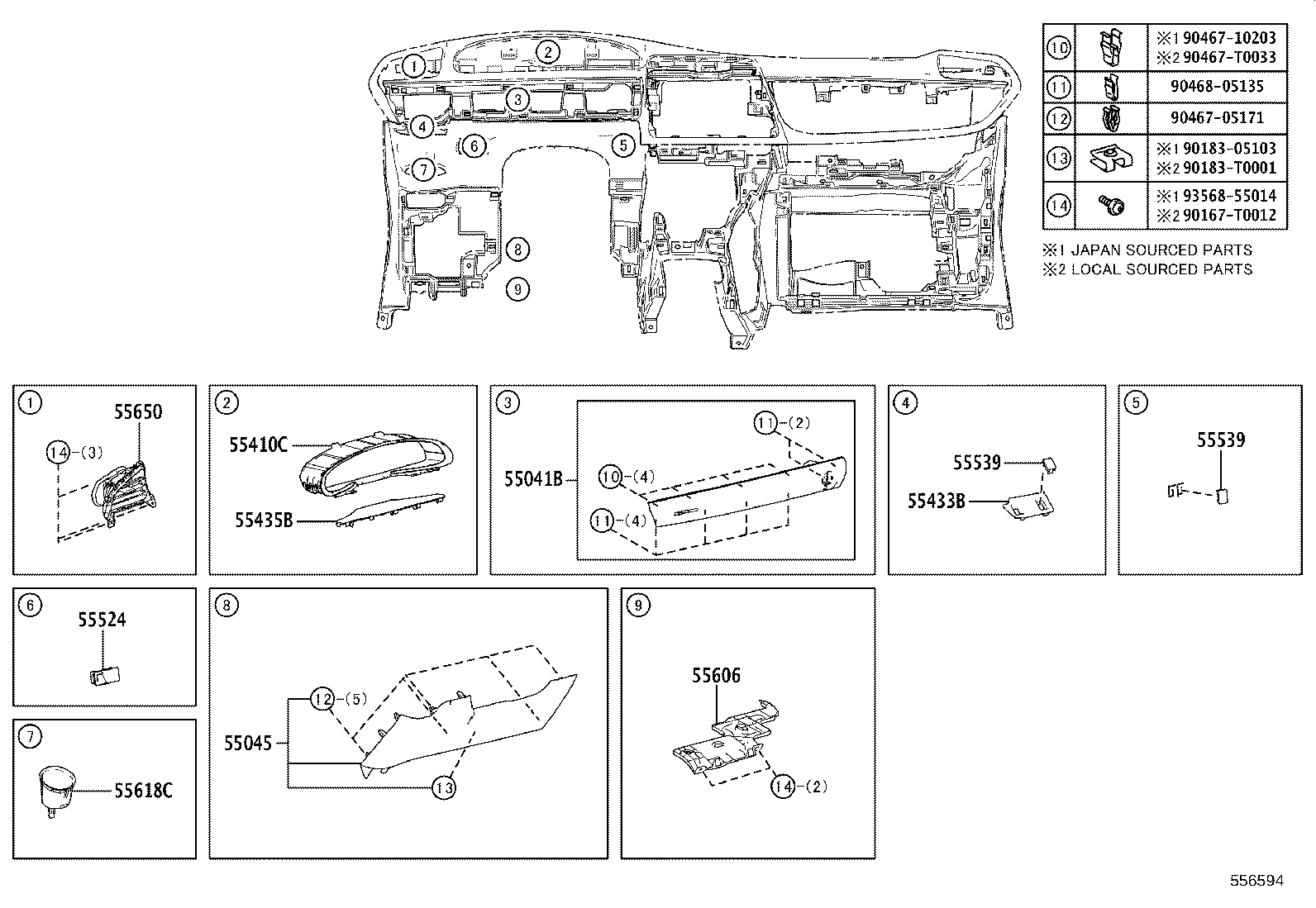

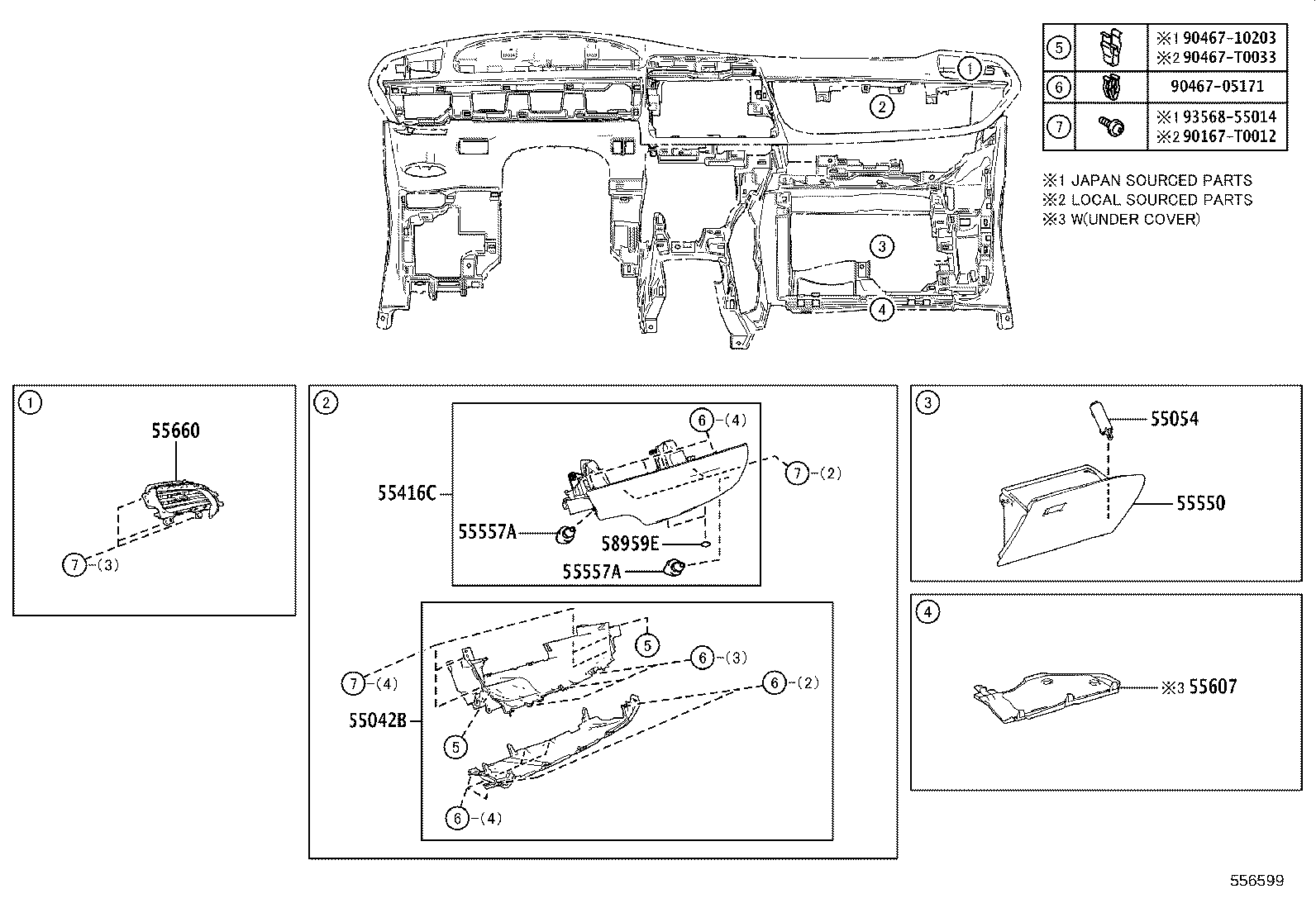

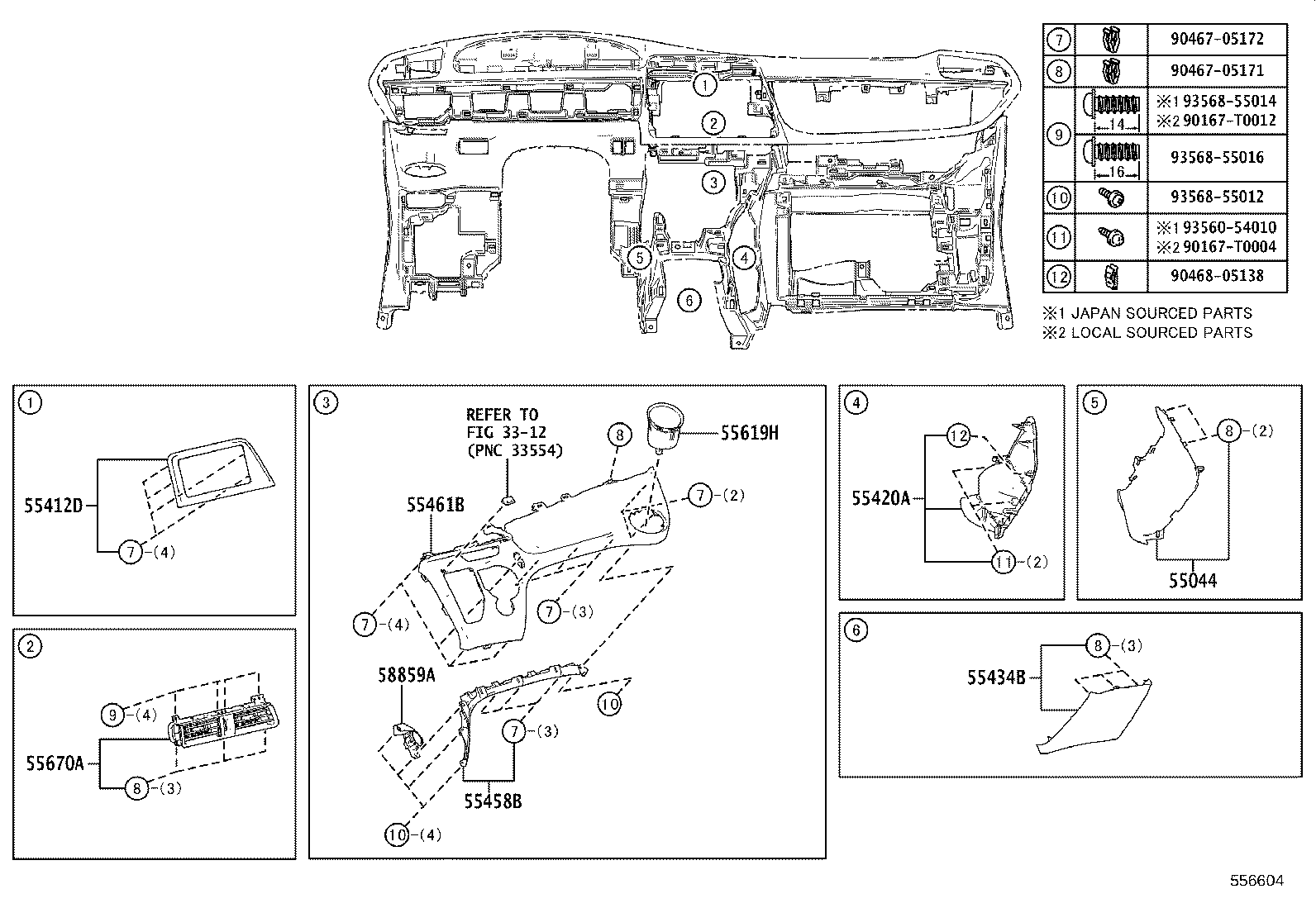

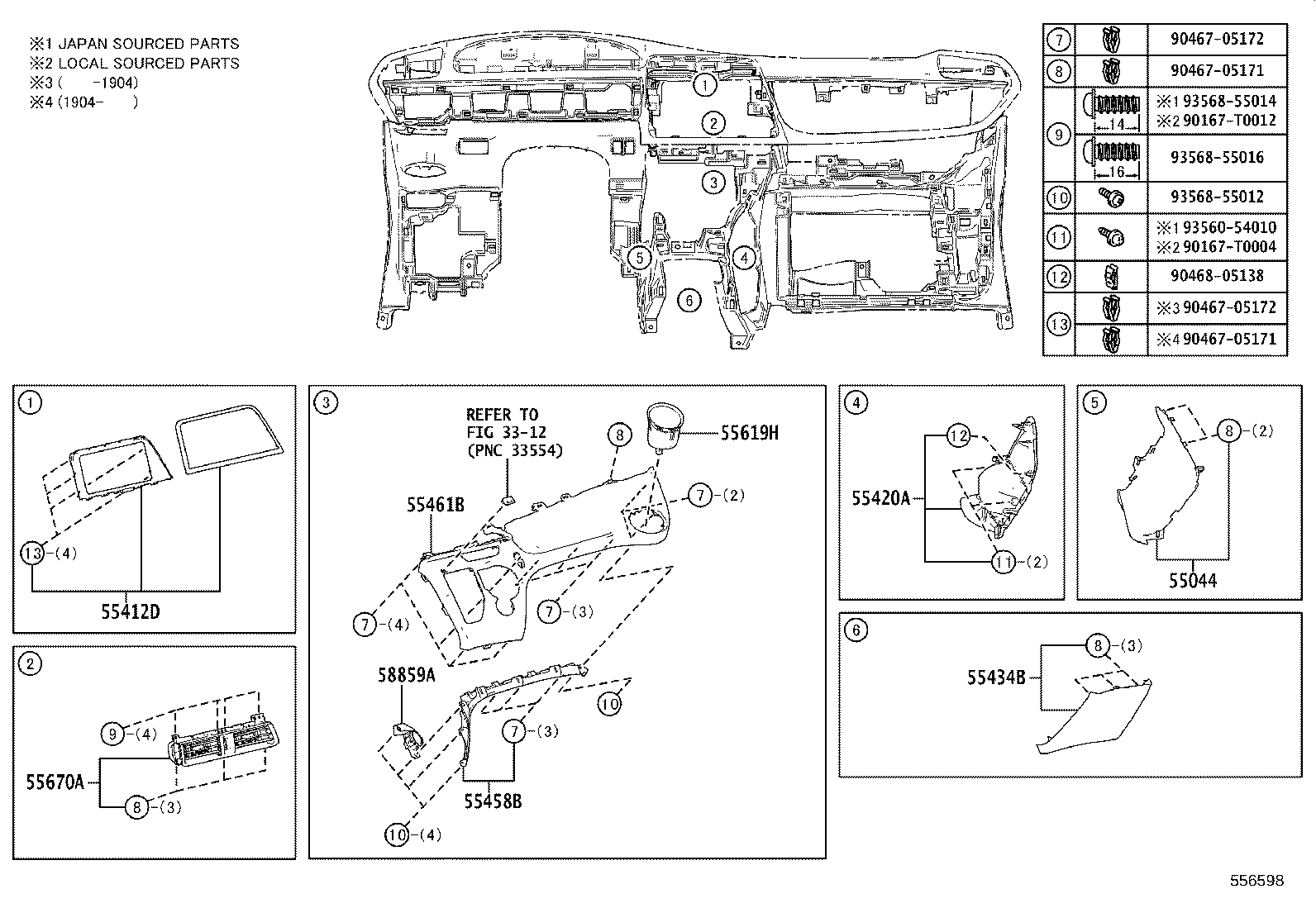

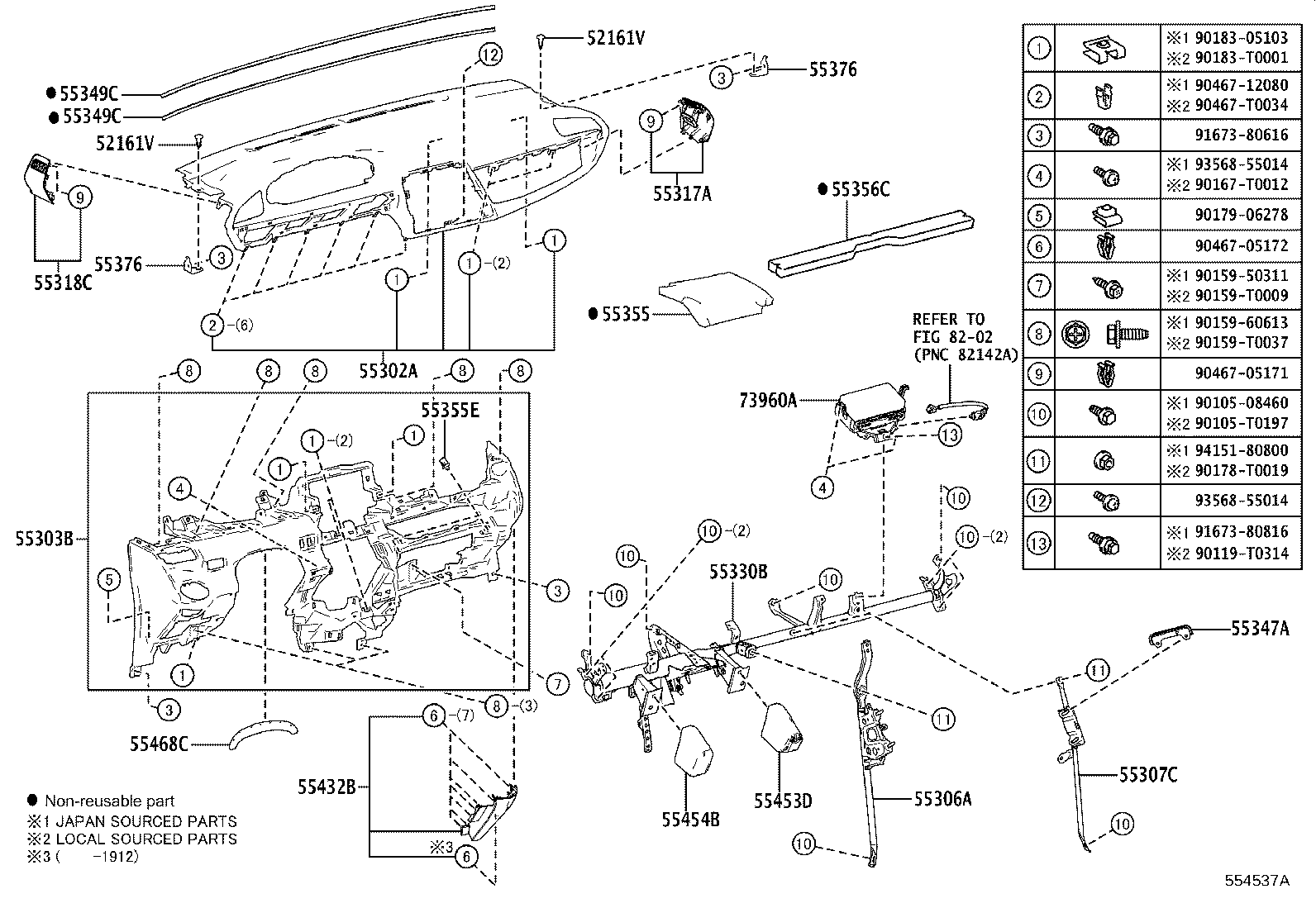

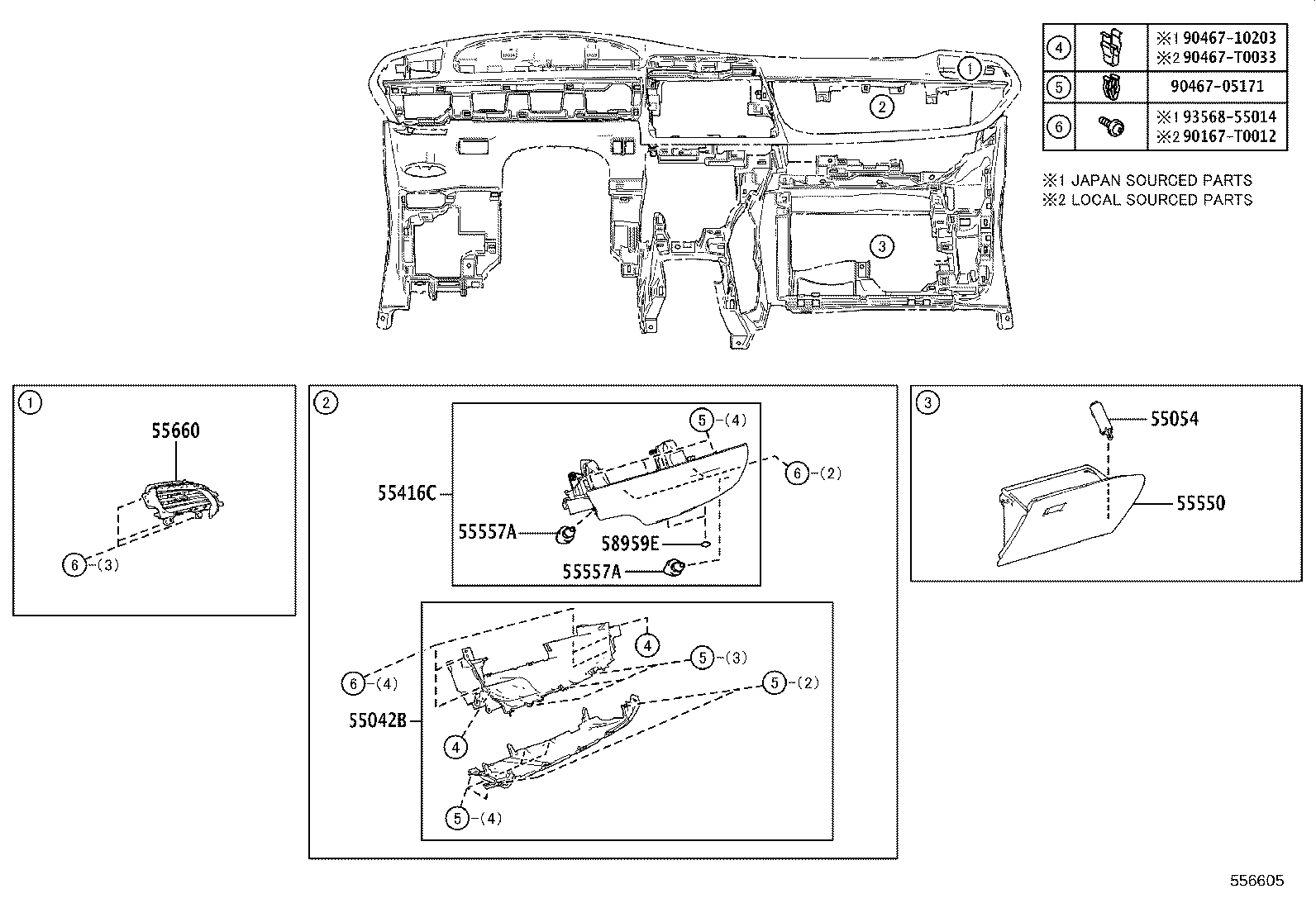

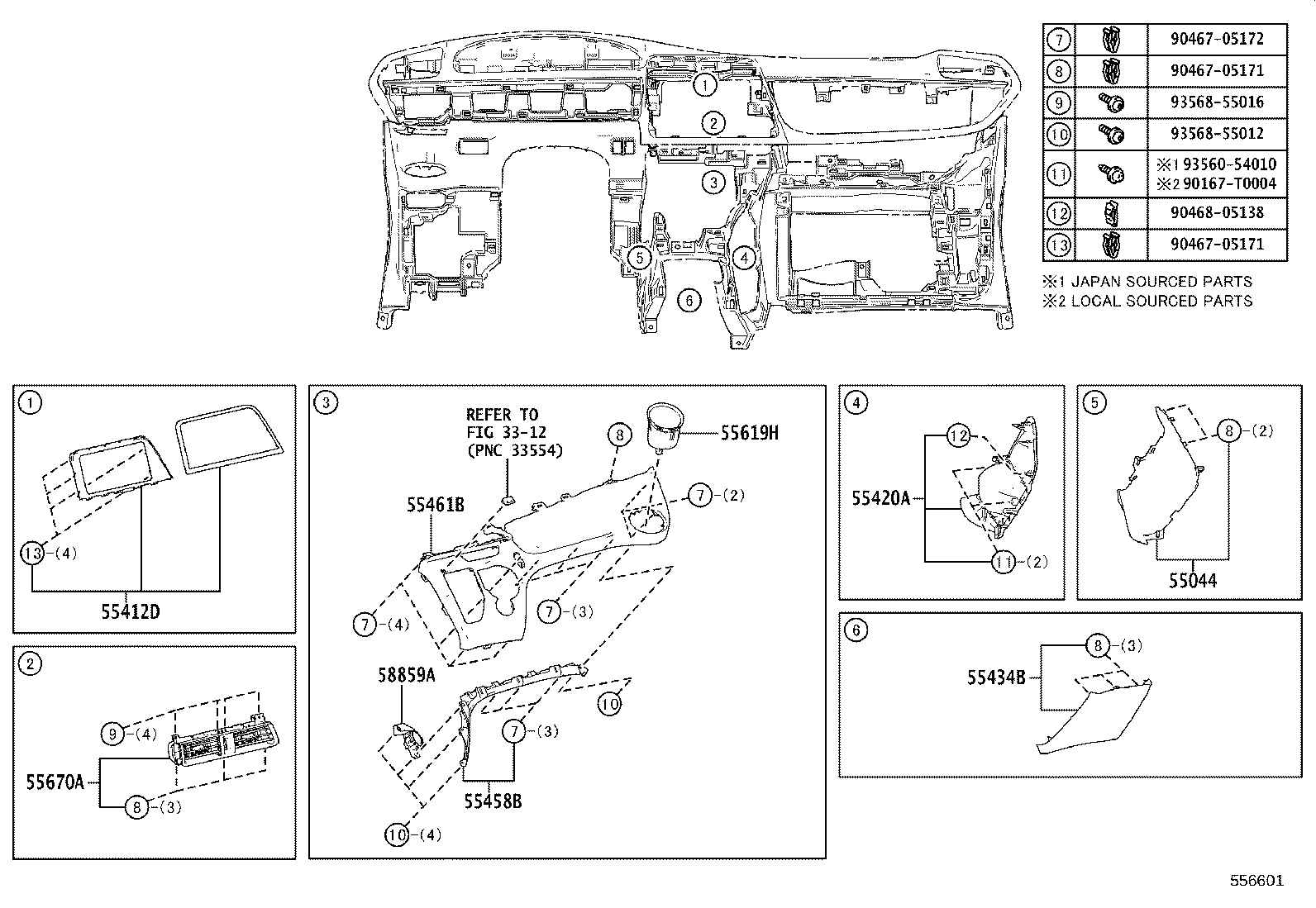

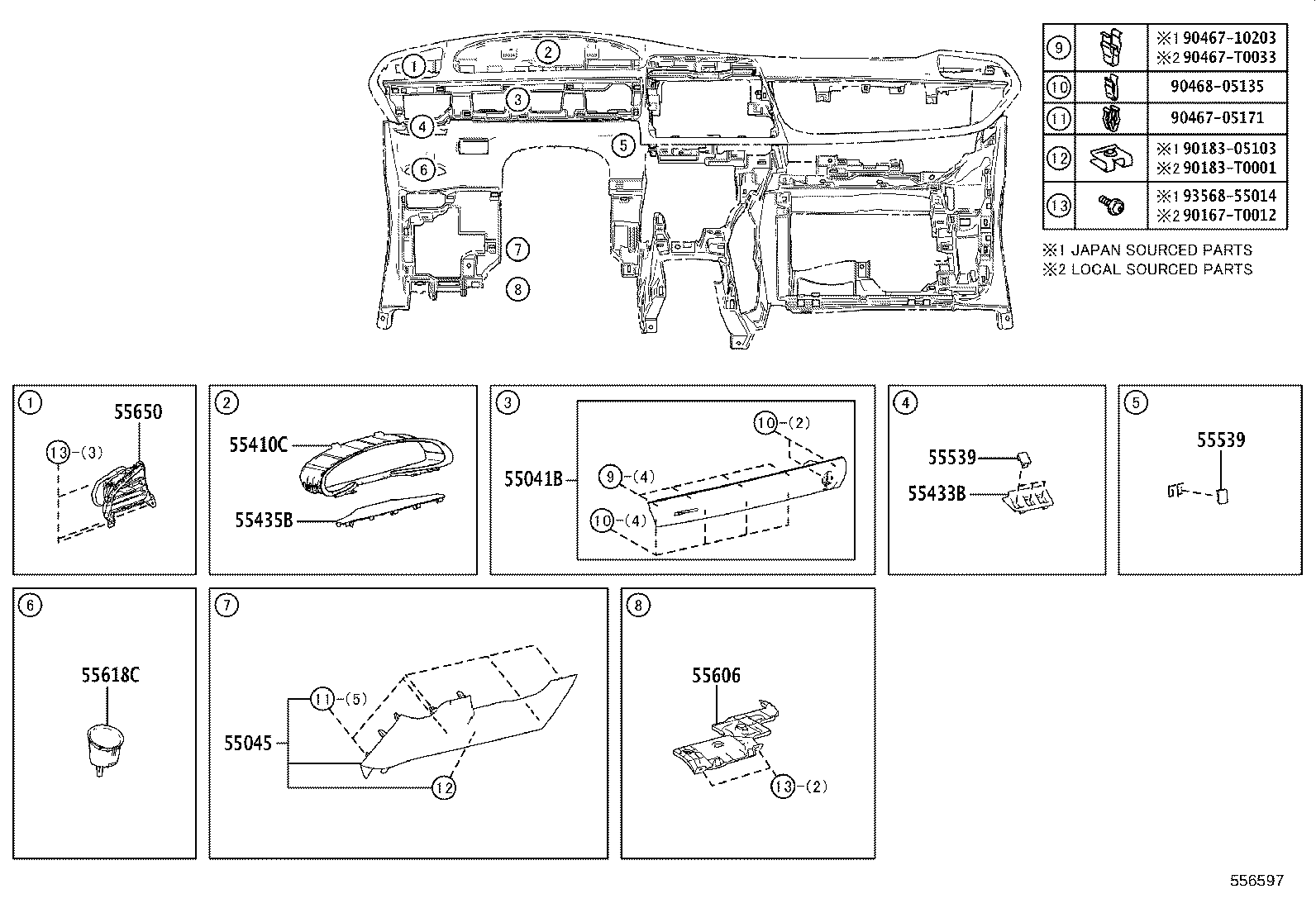

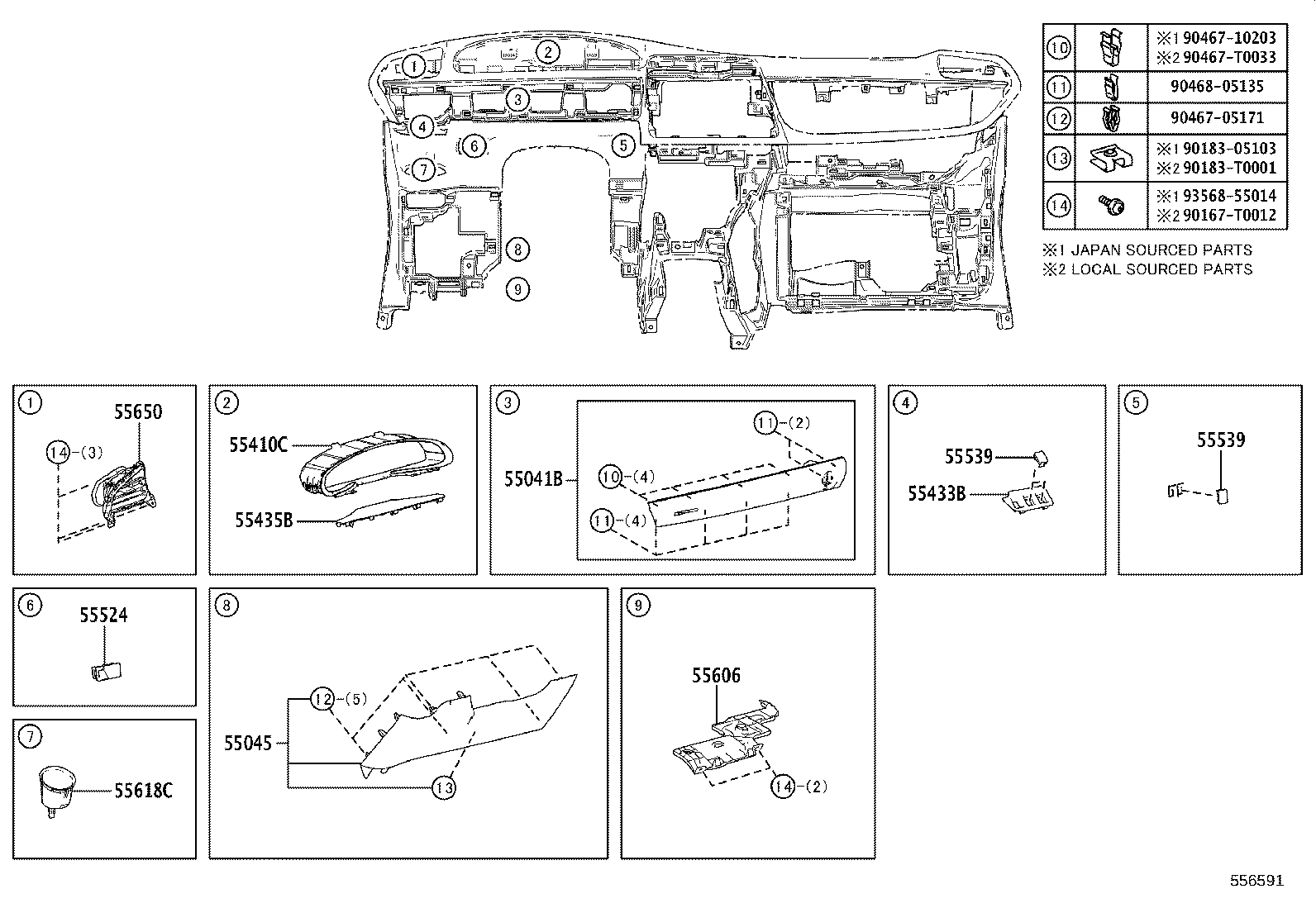

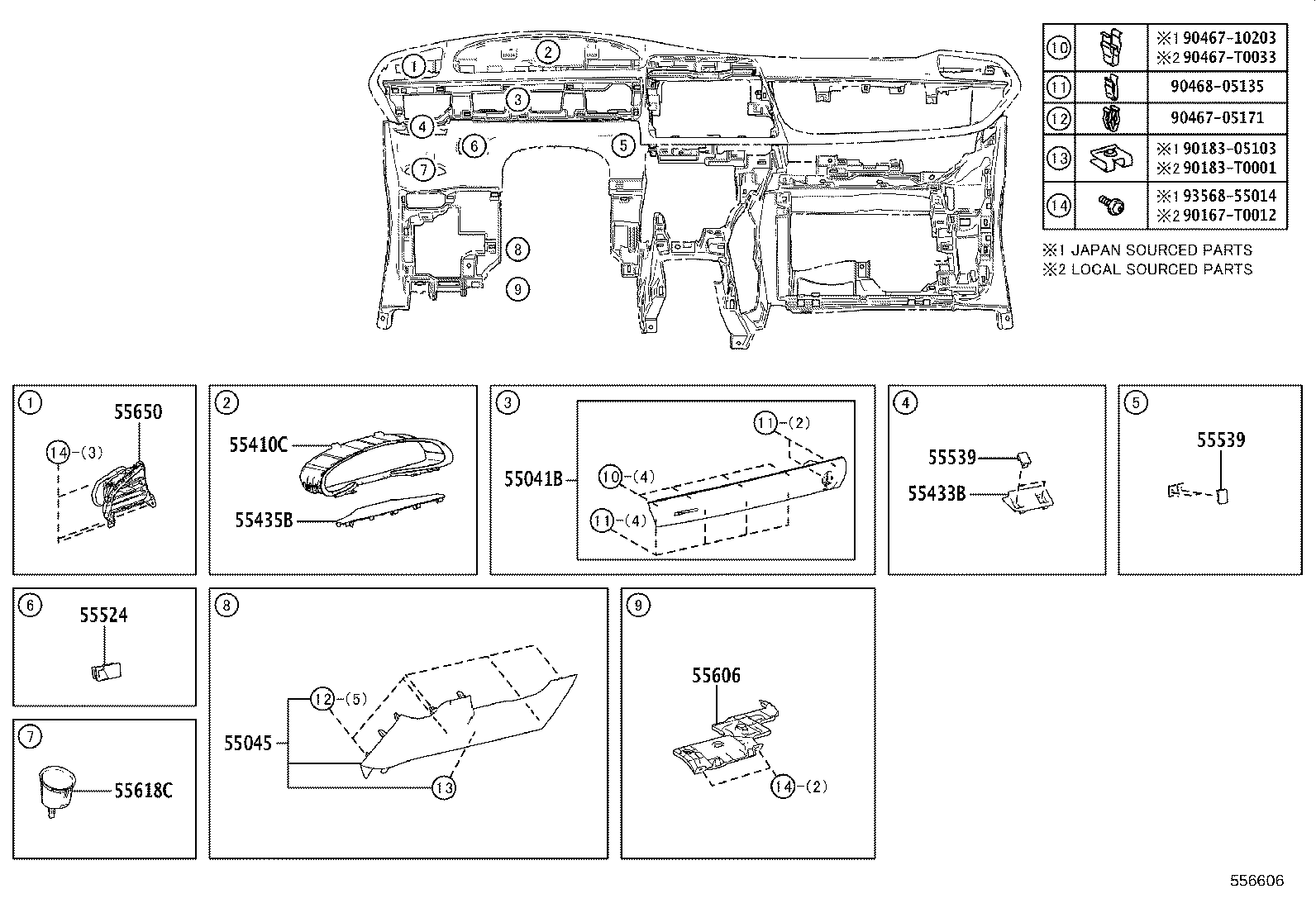

Figure 553859E 553859E 2016-11 → 2019-11 Figure 554537A 554537A 2019-11 → — Figure 556591 556591 2016-11 → 2019-11 Figure 556592 556592 2016-11 → 2019-11 Figure 556593 556593 2016-11 → 2019-11 Figure 556594 556594 2019-11 → — Figure 556595 556595 2019-11 → — Figure 556596 556596 2019-11 → — Figure 556597 556597 2016-11 → 2019-11 Figure 556598 556598 2016-11 → 2019-11 Figure 556599 556599 2016-11 → 2019-11 Figure 556600 556600 2019-11 → — Figure 556601 556601 2019-11 → — Figure 556602 556602 2019-11 → — Figure 556603 556603 2016-11 → 2019-11 Figure 556604 556604 2016-11 → 2019-11 Figure 556605 556605 2016-11 → 2019-11 Figure 556606 556606 2019-11 → — Figure 556607 556607 2019-11 → — Figure 556608 556608 2019-11 → —

Part groups

PNCDescription
52161V Piece, Instrument Panel
55041B Door Sub-assy, Instrument Panel Box, NO.1
55042B Door Sub-assy, Instrument Panel Box, NO.2
55044 Panel Sub-assy, Instrument Panel Finish, Lower LH
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55054 Stopper Sub-assy, Glove Compartment Door
55302A Panel Sub-assy, Instrument, Upper
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55330B Reinforcement Assy, Instrument Panel
55347A Bracket, Instrument Panel Brace Mounting, NO.1
55349C Cushion, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55355E Cushion, Instrument Panel
55356C Cushion, Instrument Panel, NO.2
55376 Bracket, Instrument Panel Mounting, NO.1
55410C Panel Assy, Instrument Cluster Finish
55412D Panel, Instrument Cluster Finish, Center
55416C Retainer, Instrument Cluster Finish Panel
55420A Panel Assy, Instrument Cluster Finish, Center
55432B Panel, Instrument Panel Finish, Lower
55433B Panel, Instrument Panel Finish, Lower NO.2
55434B Panel, Instrument Panel Finish, Lower Center
55435B Cluster, Meter Hood, NO.1
55453D Pad, Instrument Panel Safety, NO.1
55454B Pad, Instrument Panel Safety, NO.2
55458B Cover, Instrument, Lwr
55461B Box, Instrument Panel, Center
55468C Seal, Instrument Cluster Finish Panel, NO.1
55524 Cover, Switch Bace Hole
55539 Cover, Spare Switch Hole
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55618C Holder, Instrument Panel Cup
55619H Holder, Instrument Panel Cup, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670A Register Assy, Instrument Panel, Center
58859A Hook, Console Box Holder
58959E Cushion, Console Compartment Door
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
