Toyota Sienta (TAIWAN)
2016-11 → present · chassis NSP170,ZSP170 · catalogue 11B310 · General
Supported model
Data version 2020-11

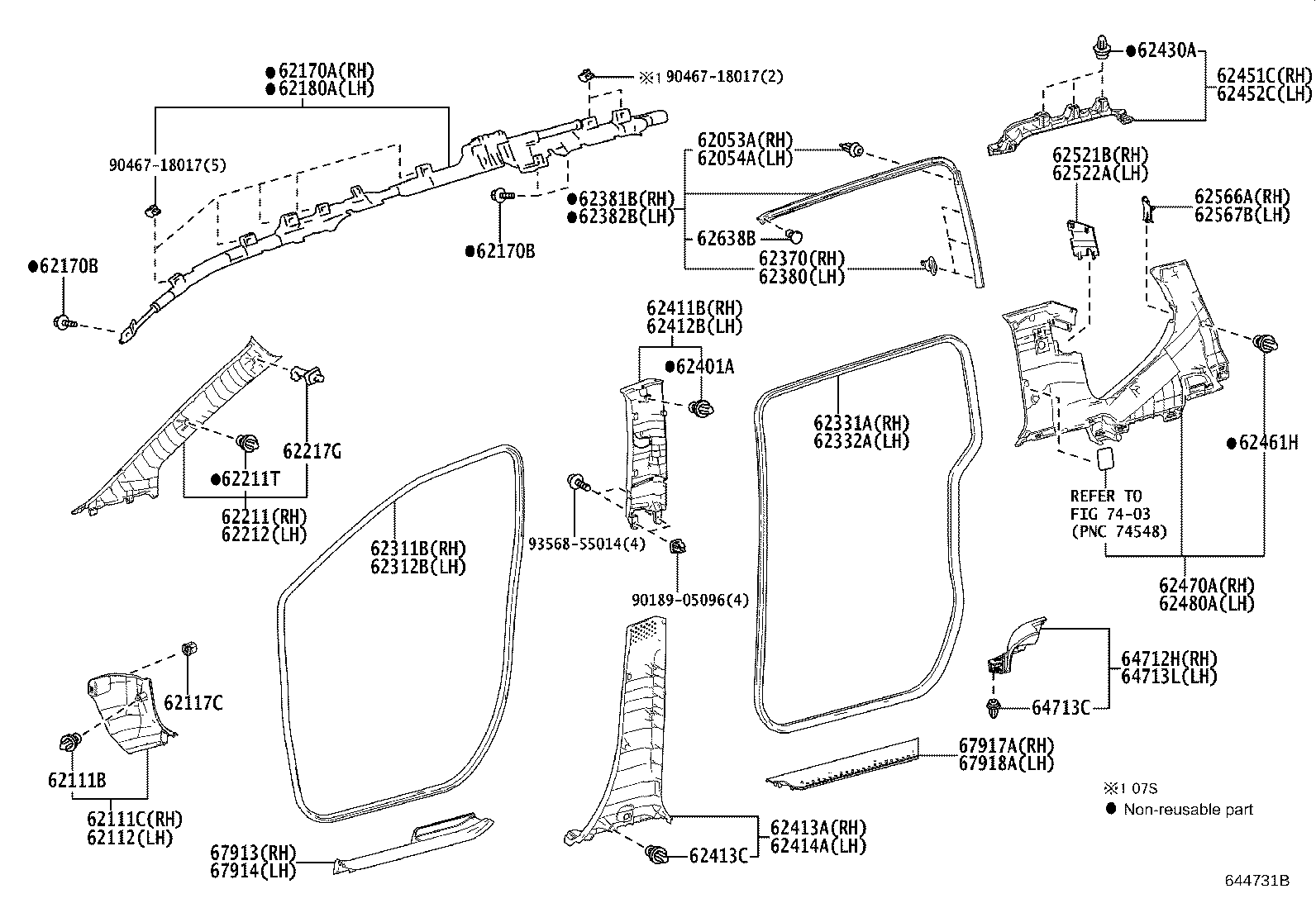

Inside Trim Board & Door Opening Trim Moulding
51 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62053A | Retainer Sub-assy, Roof Side Weatherstrip, Rear RH |
| 62054A | Retainer Sub-assy, Roof Side Weatherstrip, Rear LH |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117C | Clip, NO.2(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62189A | Spacer, Curtain Shield Airbag Clip |
| 62211 | Garnish, Front Pillar, RH |
| 62211T | Clip(FOR FRONT PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62370 | Retainer Assy, Roof Side Rail Weatherstrip, RH |
| 62380 | Retainer Assy, Roof Side Rail Weatherstrip, LH |
| 62381B | Weatherstrip, Roof Side Rail, RH |
| 62382B | Weatherstrip, Roof Side Rail, LH |
| 62401A | Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER) |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62430A | Clip, Roof Side Rail Garnish |
| 62451C | Garnish, Roof Side Rail, Rear RH |
| 62452C | Garnish, Roof Side Rail, Rear LH |
| 62461H | Clip (FOR ROOF SIDE INNER GARNISH) |
| 62470A | Garnish Assy, Roof Side, Inner RH |
| 62480A | Garnish Assy, Roof Side, Inner LH |
| 62521B | Cover, Quarter Trim, RH |
| 62522A | Cover, Quarter Trim, LH |
| 62566A | Cover, Rear Pillar, RH |
| 62567B | Cover, Rear Pillar, LH |
| 62638B | Clip |
| 64712H | Cover, Deck Side Trim, Front RH |
| 64713C | Clip, Deck Side Trim Cover |
| 64713L | Cover, Deck Side Trim, Front LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |

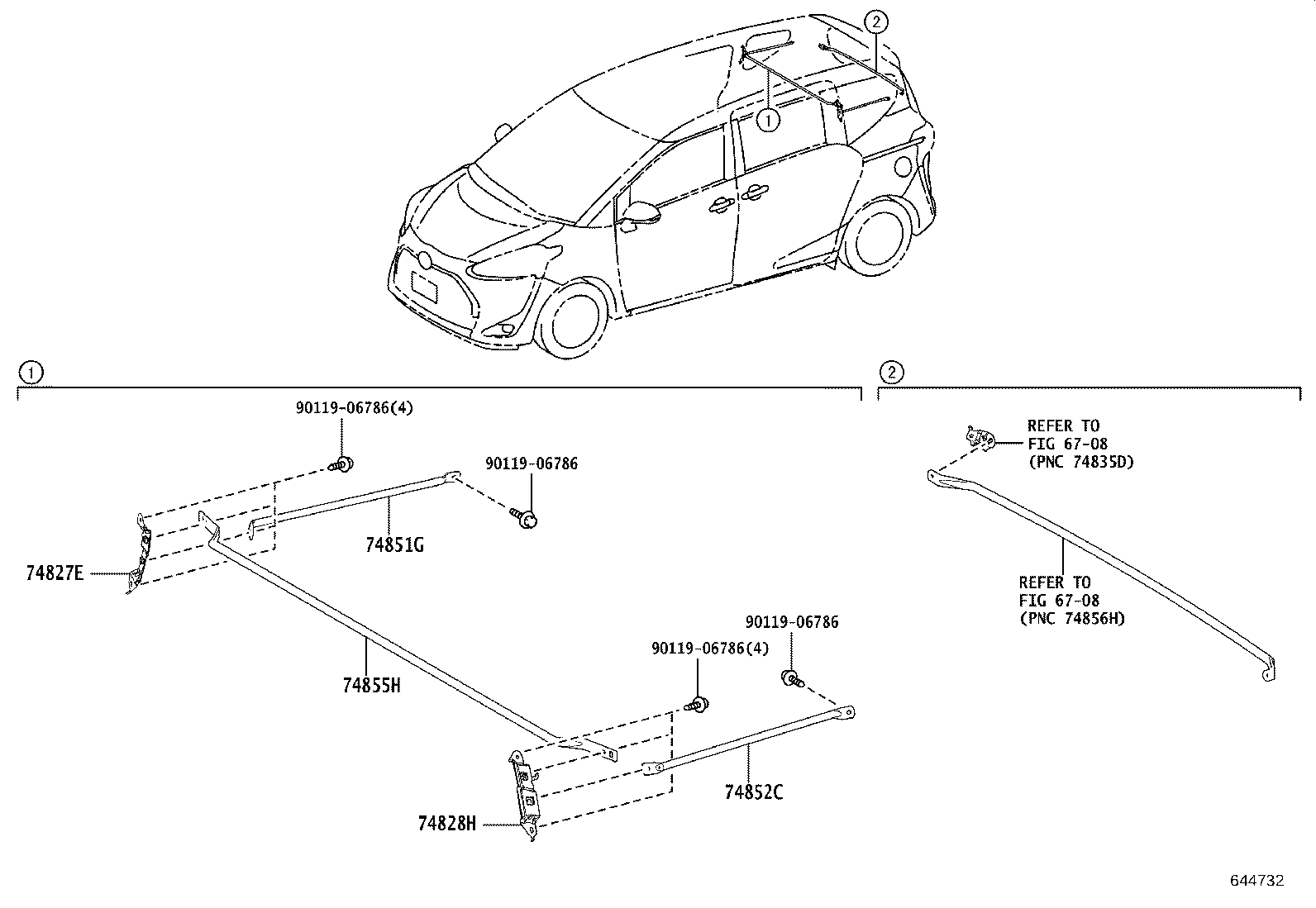

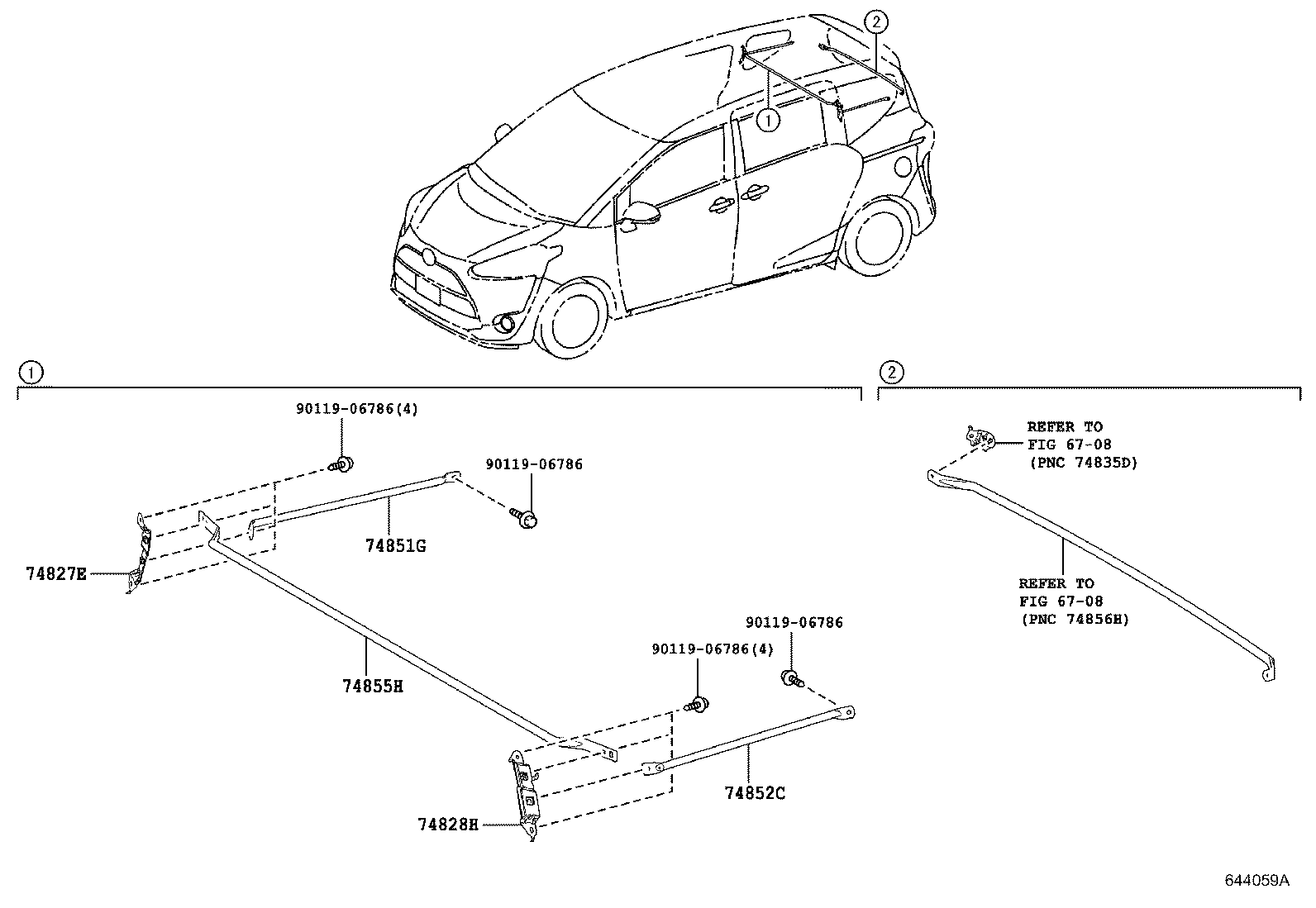

| 74827E | Bracket, Separator Bar, RH |
| 74828H | Bracket, Separator Bar, LH |
| 74851G | Bar, Separator, NO.1 |
| 74852C | Bar, Separator, NO.2 |
| 74855H | Bar, Separator, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
