Toyota Sienta (TAIWAN)

2016-11 → present · chassis NSP170,ZSP170 · catalogue 11B310 · General

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

13 part groups · 5 illustrations

Illustrations

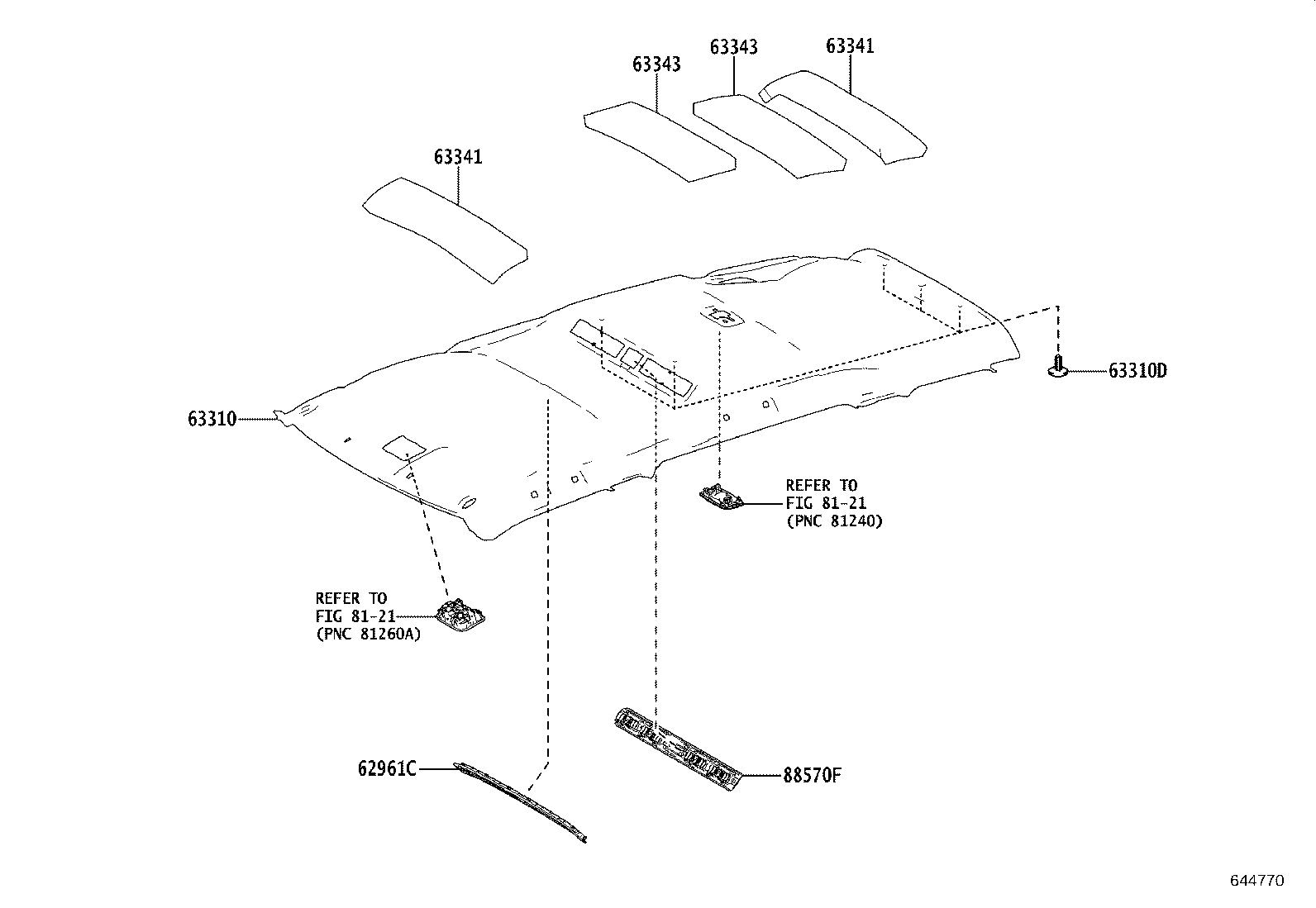

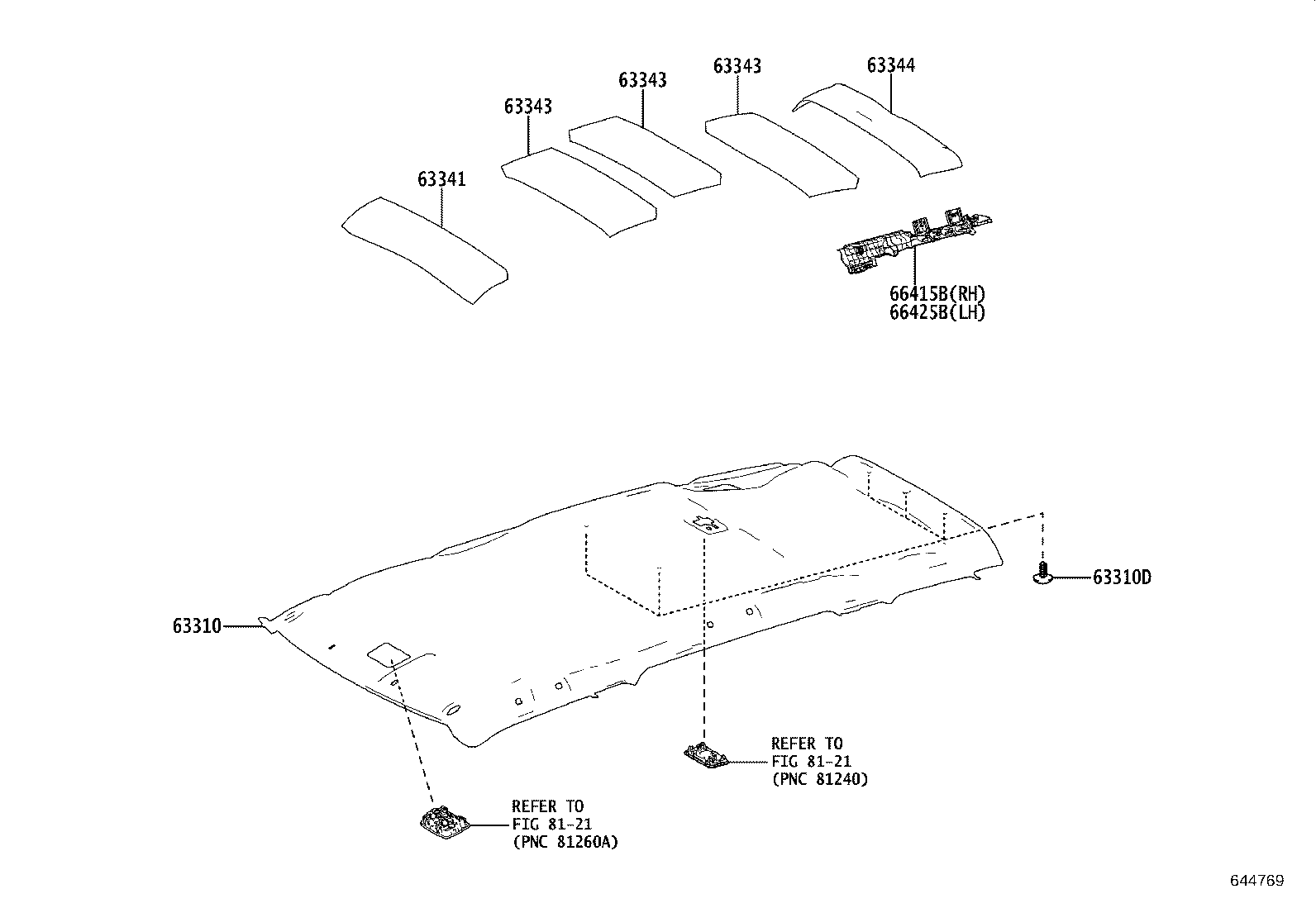

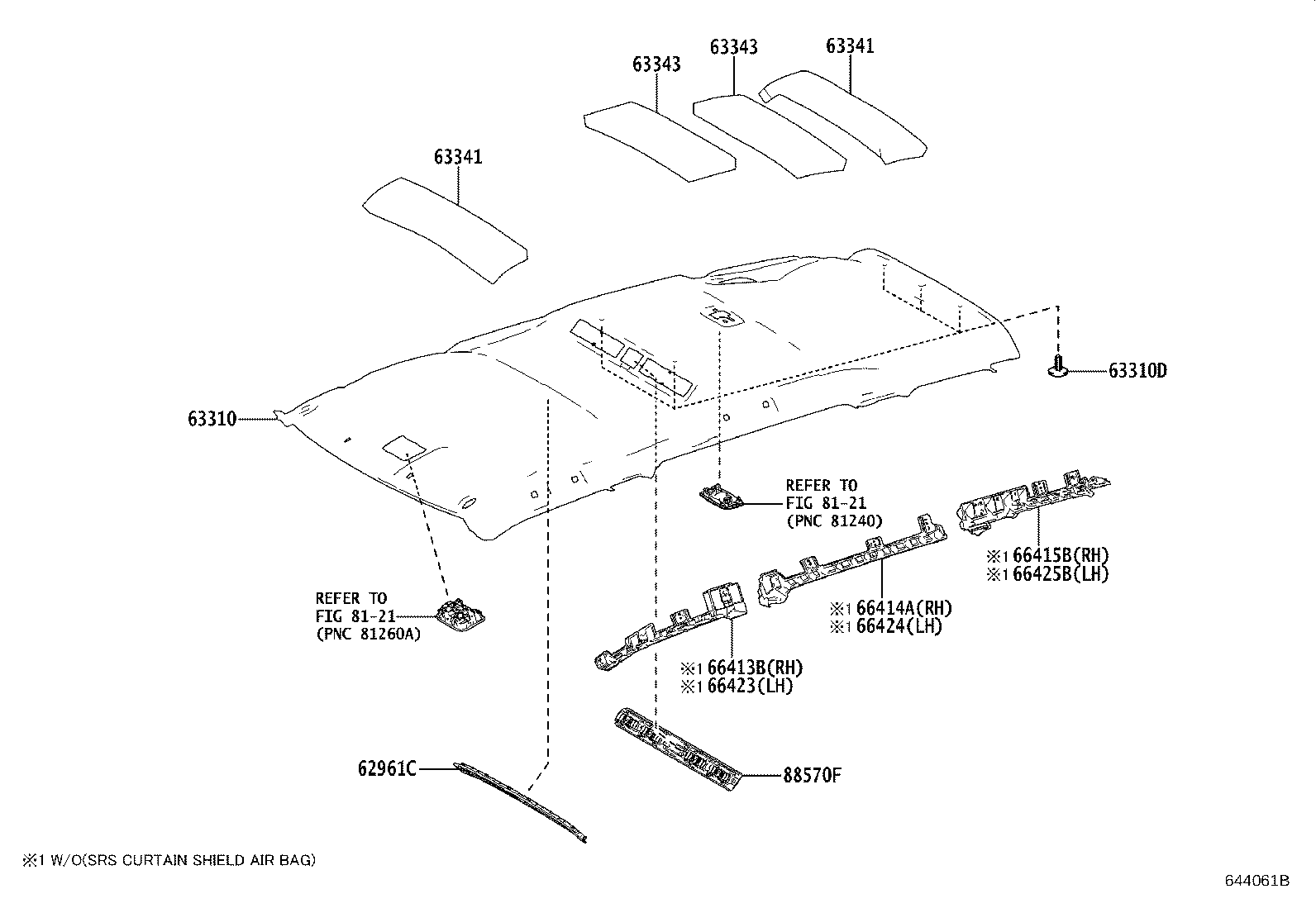

Figure 644060B 644060B 2016-11 → 2019-11 Figure 644769 644769 2019-11 → — Figure 644061B 644061B 2016-11 → 2019-11 Figure 644061B 644061B 2020-12 → 2022-10 Figure 644770 644770 2019-11 → —

Part groups

PNCDescription
62961C Grille, Room Vent
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63341 Pad, Roof Silencer, NO.1
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66415B Spacer, Side Rail, Rear NO.2 RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
66425B Spacer, Side Rail, Rear NO.2 LH
88570F Grille Assy, Air Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
