Toyota Sienta (TAIWAN)

2016-11 → present · chassis NSP170,ZSP170 · catalogue 11B310 · General

Supported model Data version 2020-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

12 part groups · 3 illustrations

Illustrations

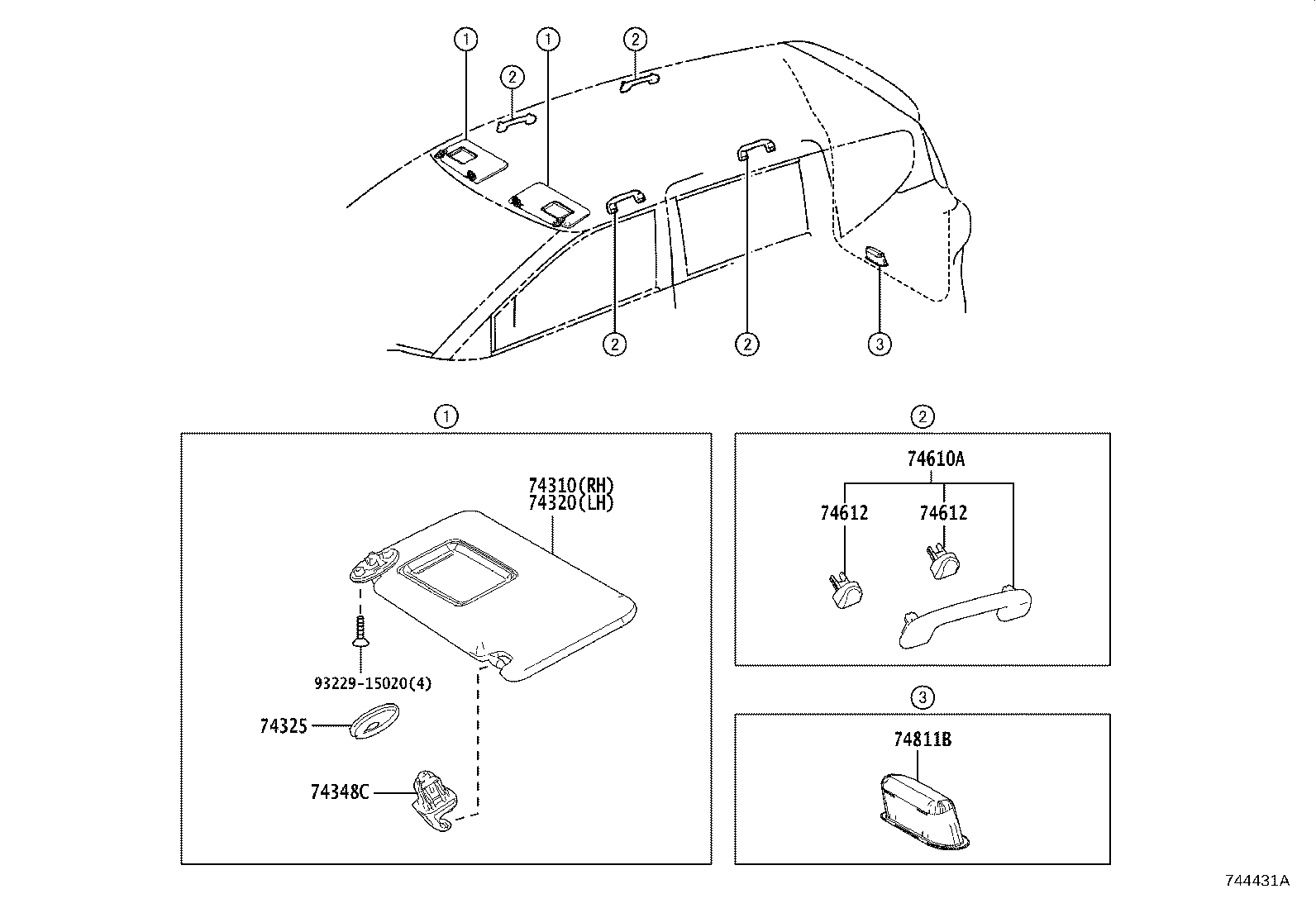

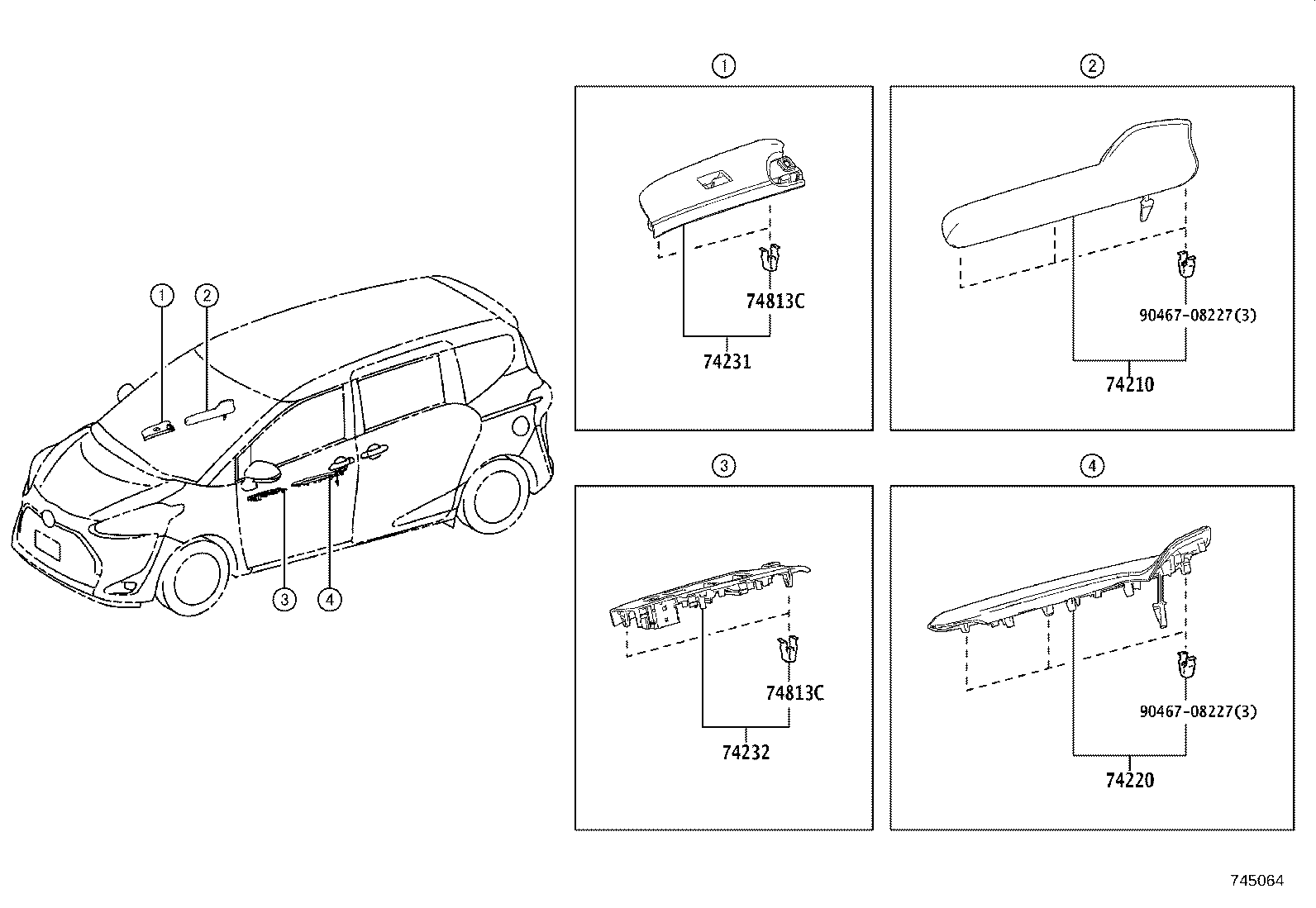

Figure 744430 744430 2016-11 → 2019-11 Figure 745064 745064 2019-11 → — Figure 744431A 744431A 2016-11 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74325 Cover, Visor Bracket
74348C Holder, Visor, LH
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
74811B Handle, Door Pull
74813C Clip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
