Toyota Sienta (TAIWAN)
2016-11 → present · chassis NSP170,ZSP170 · catalogue 11B310 · General
Supported model
Data version 2020-11

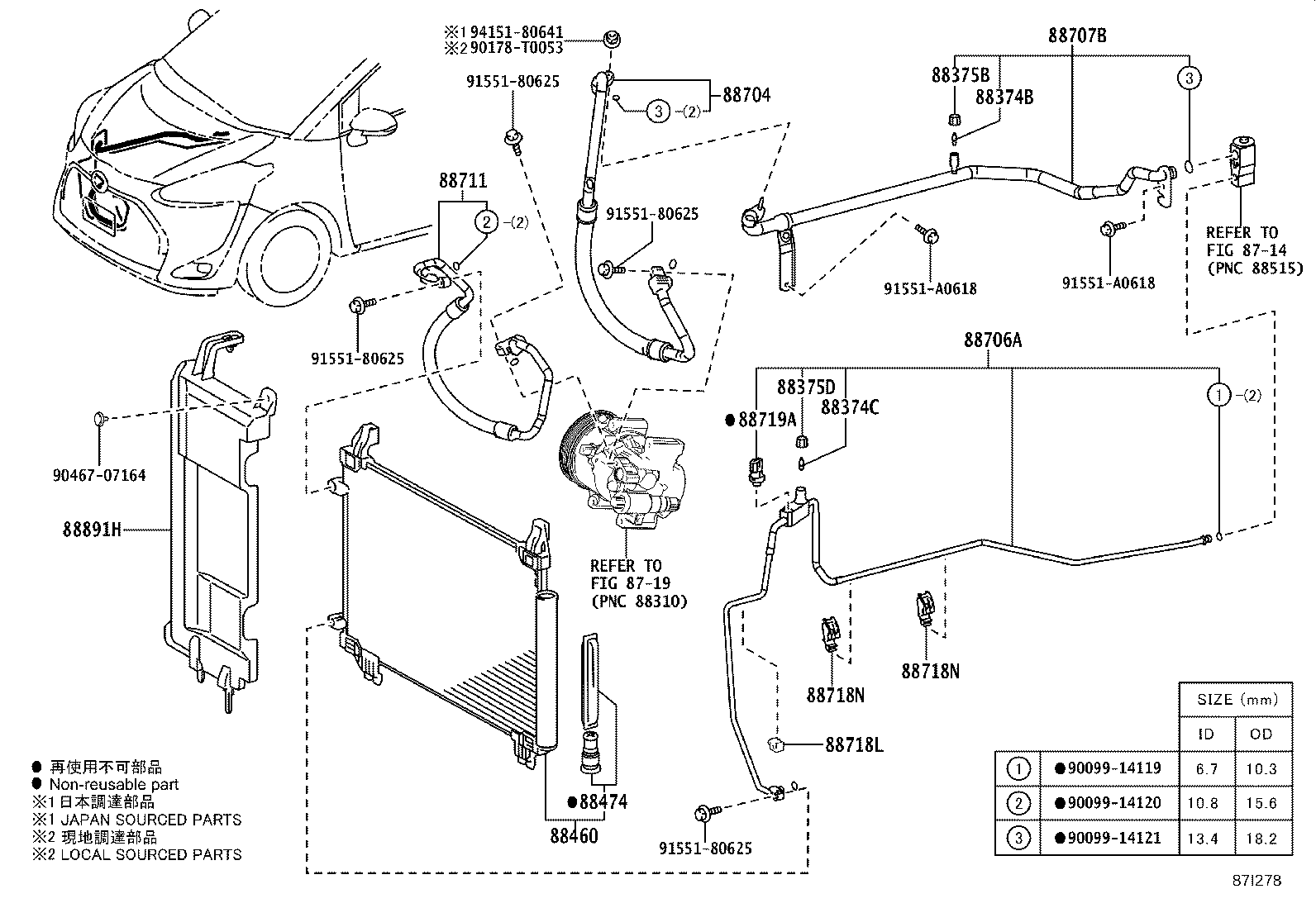

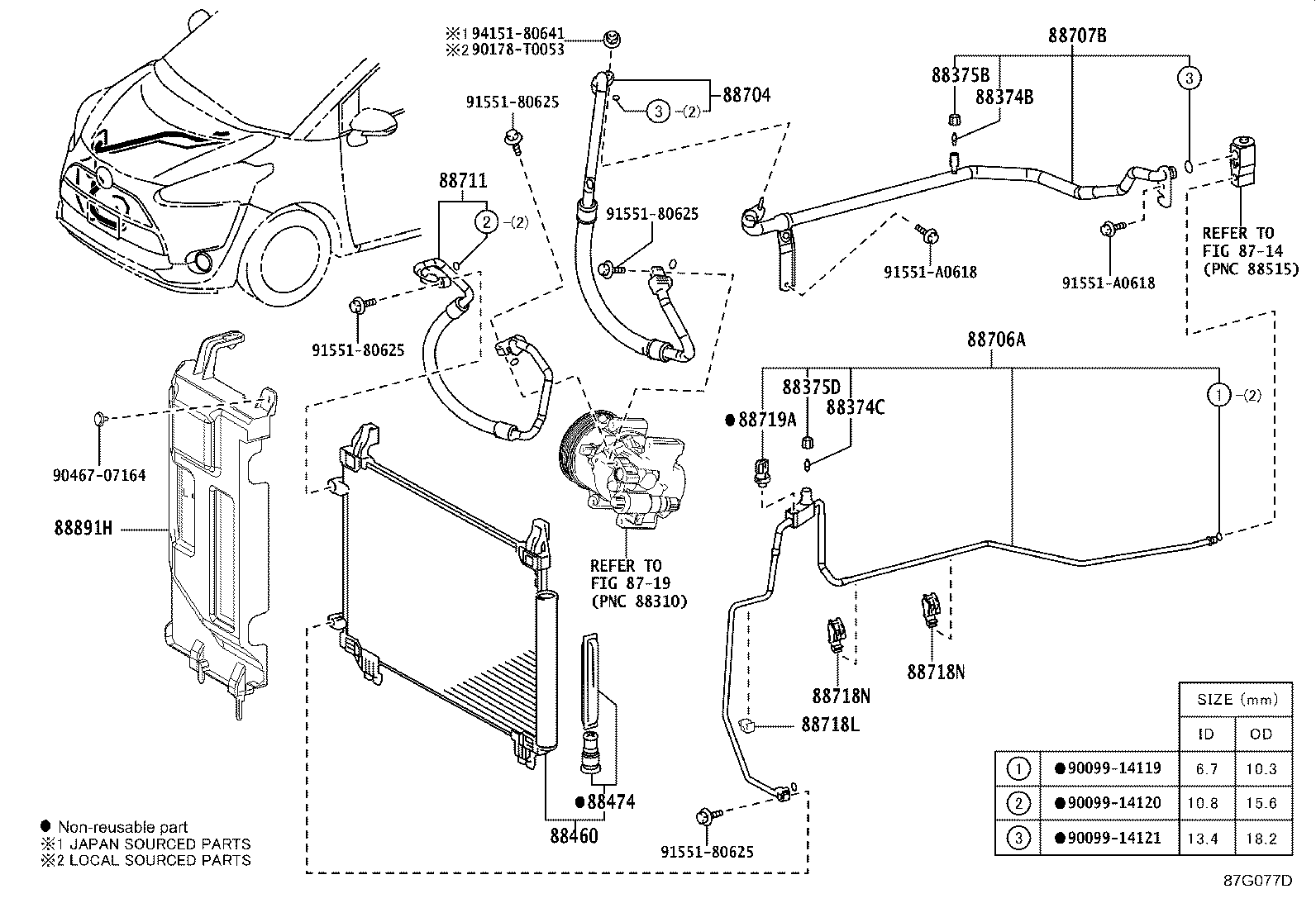

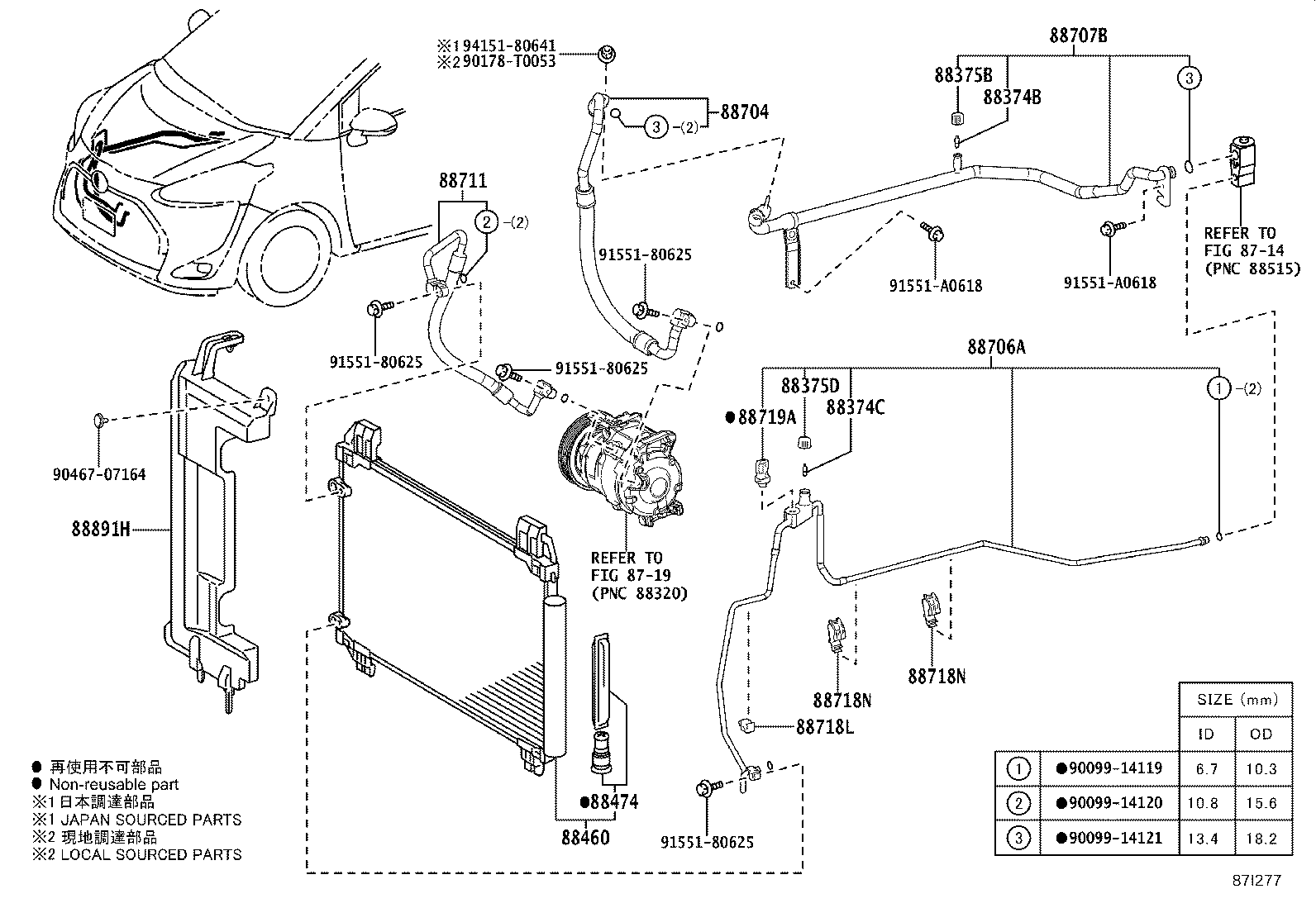

Heating & Air Conditioning - Cooler Piping
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88460 | Condenser Assy, Cooler |
| 88474 | Dryer, Cooler |
| 88704 | Hose Sub-assy, Suction |
| 88706A | Tube Sub-assy, Liquid, A |
| 88707B | Tube Sub-assy, Suction, B |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88718L | Clamp, Piping |
| 88718N | Clamp, Piping |
| 88719A | Sensor, Air Conditioner Pressure |
| 88891H | Cover, Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
