Toyota Yaris GR

2020-08 → present · chassis GXPA16 · catalogue 11E210 · General

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

6 part groups · 3 illustrations

Illustrations

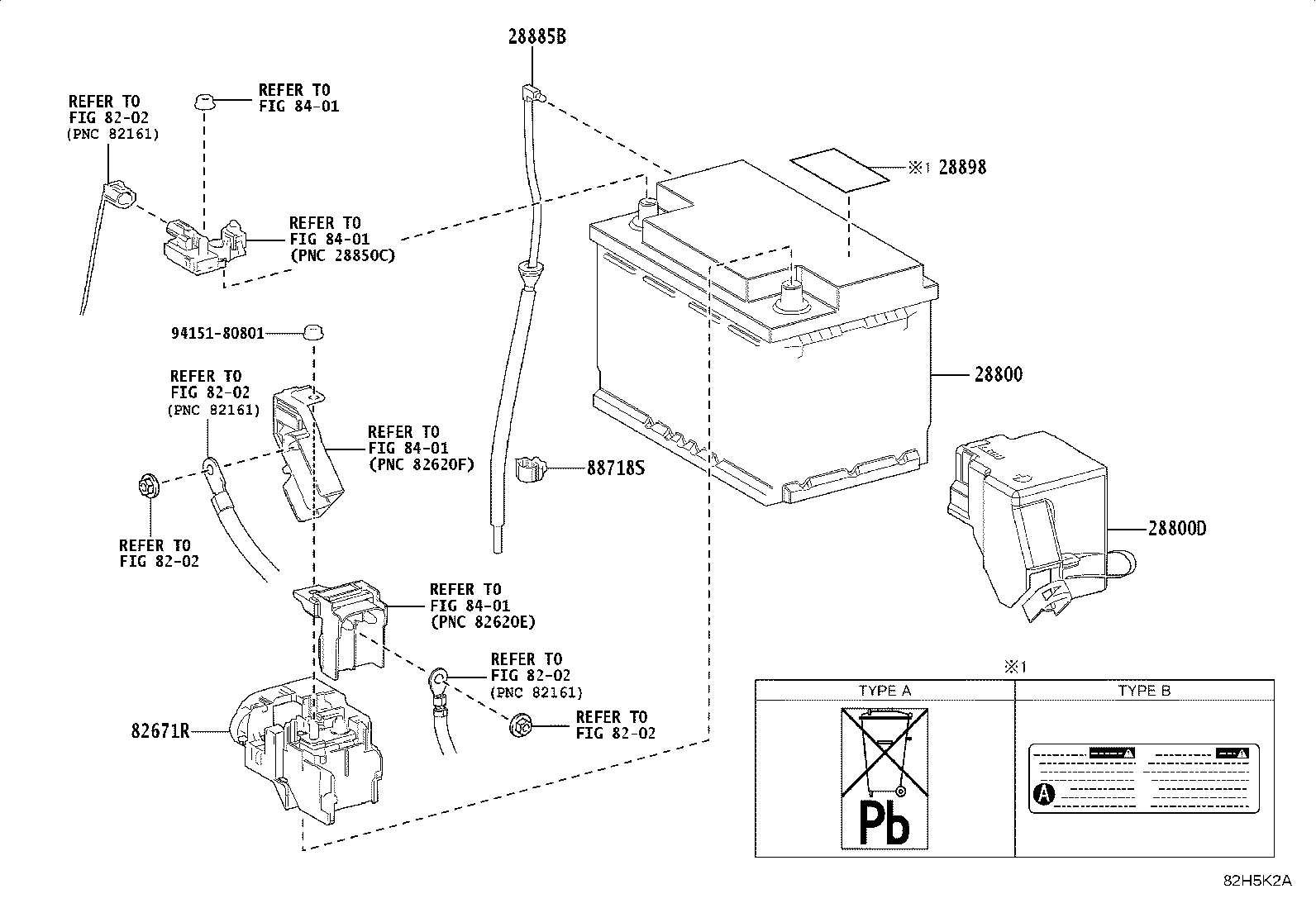

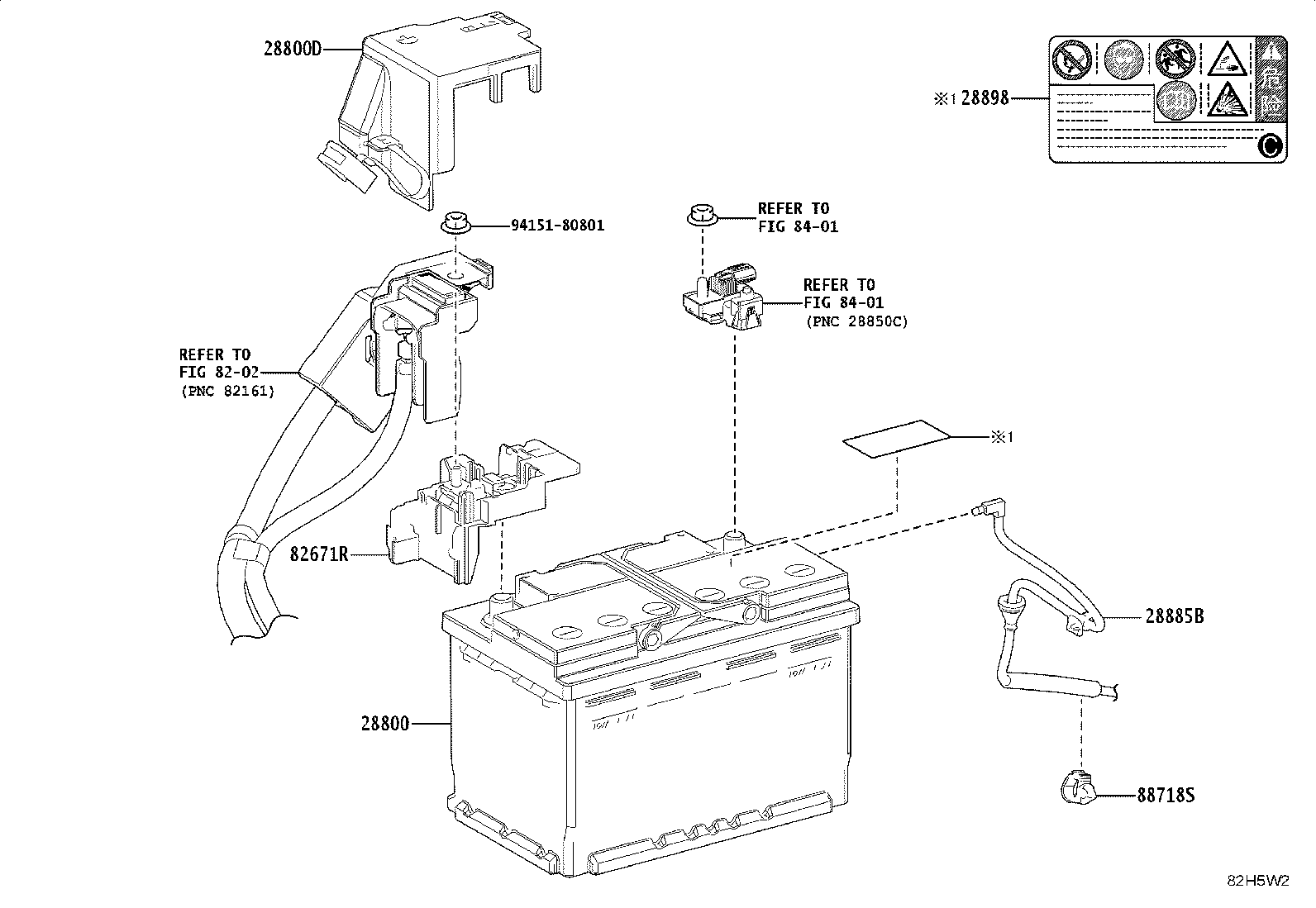

Figure 82E016B 82E016B 2020-08 → 2024-04 Figure 82H5K2A 82H5K2A 2024-04 → — Figure 82H5W2 82H5W2 2024-10 → —

Part groups

PNCDescription
28800 Battery
28800D Cover, Connector(FOR BATTERY TERMINAL)
28885B Hose, Battery
28898 Plate, Battery
82671R Stopper, Battery Terminal
88718S Clamp, Piping NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
