Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

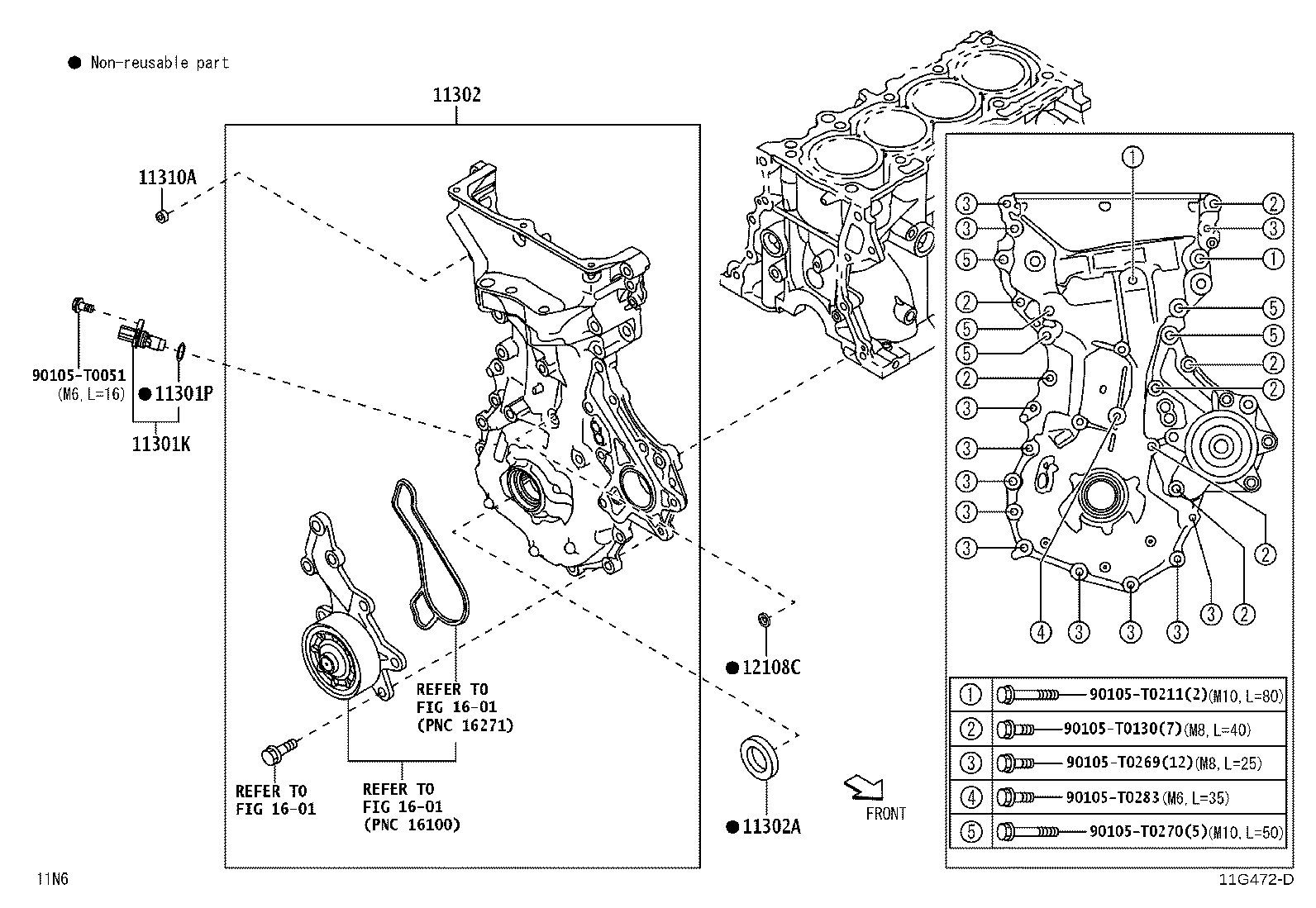

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11301K — Sensor, Crank Position | ||||
| 9004A-19006 |
Sensor, Crank Position
2023-03 → 2024-01
ended
|
2NRVE NGC102 MA | — | |
| 90919-05079 |
Sensor, Crank Position
2022-08 → —
|
3NRVE NGC100 | — | |
| 90919-T5001 |
Sensor, Crank Position
2022-08 → —
|
1NRVE,2NRVE NGC101,102 THP | — | |
| 90919-T5001 |
Sensor, Crank Position
2024-01 → —
|
2NRVE NGC102 MA | — | |
| 11301P — O Ring, Crank Position Sensor | ||||
| 9004A-30059 |
O Ring, Crank Position Sensor
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 11302 — Cover Sub-assy, Timing Chain OR Belt | ||||
| 11310-0Y061 |
Cover Sub-assy, Timing Chain OR Belt
2022-08 → —
|
3NRVE NGC100 | — | |
| 11310-BZ200 |
Cover Sub-assy, Timing Chain OR Belt
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 11310-BZ250 |
Cover Sub-assy, Timing Chain OR Belt
2022-08 → —
|
1NRVE,2NRVE NGC101,102 THP | — | |
| 11302A — Seal, Oil(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-T0075 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2022-08 → —
|
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP | — | |
| 90311-T0076 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 11310A — Plug, Taper Screw(FOR TIMING CHAIN COVER) | ||||
| 90043-44022 |
Plug, Taper Screw(FOR TIMING CHAIN COVER)
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 90344-53008 |
Plug, Taper Screw(FOR TIMING CHAIN COVER)
2022-08 → —
|
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP | — | |
| 12108C — Gasket | ||||
| 16258-0T020 |
Gasket
2022-08 → —
|
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP | — | |
| 16258-0Y010 |
Gasket
2023-03 → —
|
2NRVE NGC102 MA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
