Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

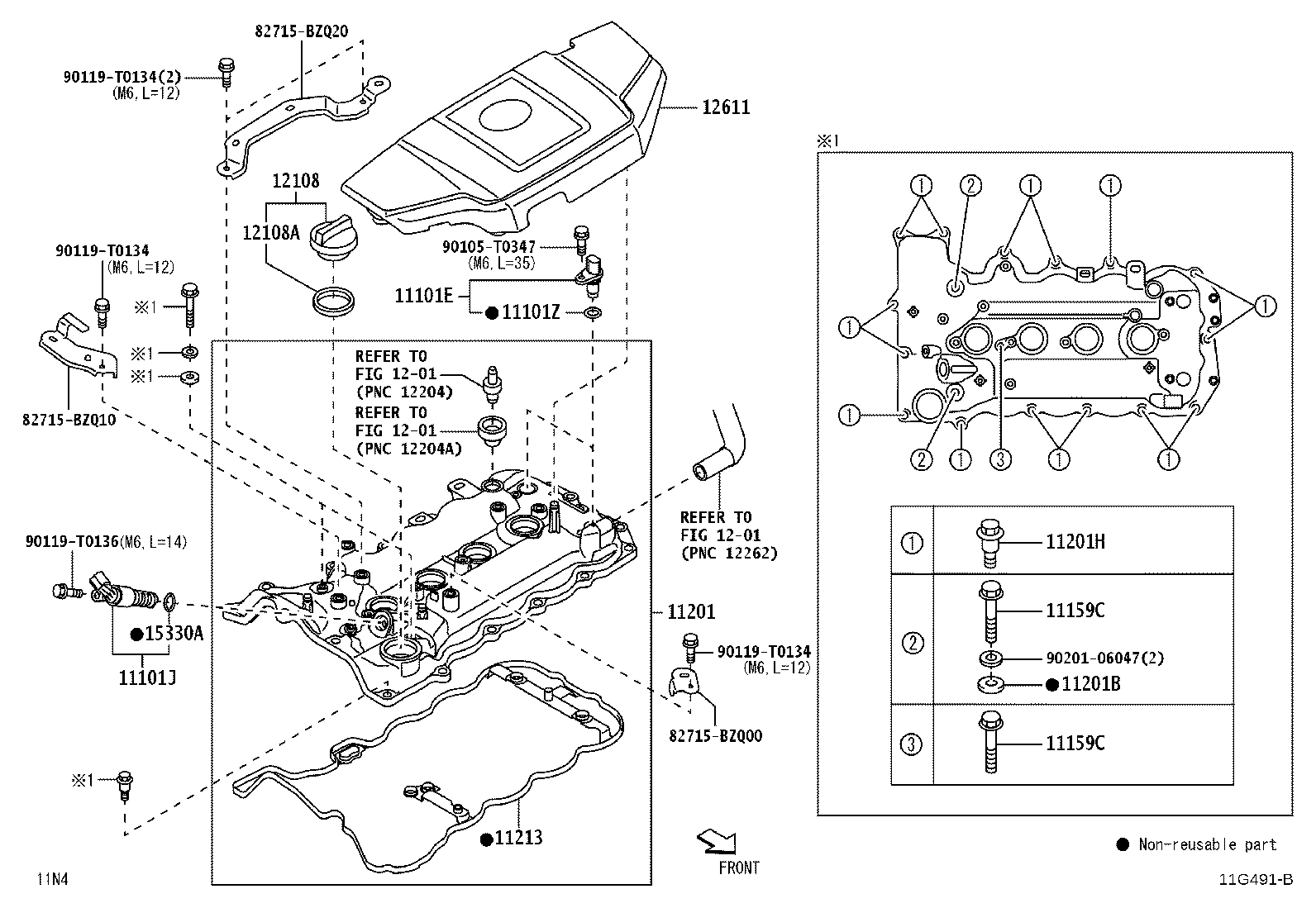

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101E — Sensor, Cam Position | ||||
| 90919-T5002 |
Sensor, Cam Position
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 11101J — Valve Assy, Camshaft Timing Oil Control | ||||
| 15330-0Y060 |
Valve Assy, Camshaft Timing Oil Control
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 11101Z — O Ring, Cam Position Sensor | ||||
| 9004A-30059 |
O Ring, Cam Position Sensor
2022-08 → —
|
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP | — | |
| 9004A-30059 |
O Ring, Cam Position Sensor
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 11159C — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-T0347 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 11201 — Cover Sub-assy, Cylinder Head | ||||
| 11201-0Y040 |
Cover Sub-assy, Cylinder Head
2022-08 → —
|
3NRVE NGC100 | — | |
| 11201-BZ160 |
Cover Sub-assy, Cylinder Head
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 11201B — Washer, Seal(FOR CYLINDER HEAD COVER) | ||||
| 90210-T0001 |
Washer, Seal(FOR CYLINDER HEAD COVER)
2022-08 → —
|
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP | — | |
| 90210-T0002 |
Washer, Seal(FOR CYLINDER HEAD COVER)
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 11201H — Bolt(FOR CYLINDER HEAD COVER) | ||||
| 90109-T0055 note |
Bolt(FOR CYLINDER HEAD COVER)
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 90109-T0055 note |
Bolt(FOR CYLINDER HEAD COVER)
2022-08 → —
|
3NRVE NGC100 | — | |
| 11213 — Gasket, Cylinder Head Cover | ||||
| 11213-0Y010 |
Gasket, Cylinder Head Cover
2022-08 → —
|
3NRVE NGC100 | — | |
| 11213-BZ110 |
Gasket, Cylinder Head Cover
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 12108 — Cap Sub-assy, Oil Filler | ||||
| 12180-0H020 |
Cap Sub-assy, Oil Filler
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 12108A — Gasket(FOR OIL FILLER CAP) | ||||
| 90080-43027 |
Gasket(FOR OIL FILLER CAP)
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 12611 — Cover, Engine, NO.1 | ||||
| 12611-BZ010 |
Cover, Engine, NO.1
2022-08 → —
|
3NRVE NGC100 | — | |
| 12611-BZ020 |
Cover, Engine, NO.1
2022-08 → —
|
2NRVE ,PHL NGC102 RHD +7 | — | |
| 12611-BZ020 note |
Cover, Engine, NO.1
2022-08 → —
|
1NRVE NGC101 5F M +1 | — | |
| 12611-BZ020 note |
Cover, Engine, NO.1
2022-08 → —
|
1NRVE NGC101 CVT L | — | |
| 12611-BZ020 note |
Cover, Engine, NO.1
2022-08 → —
|
1NRVE NGC101 CVT L | — | |
| 12611-BZ020 note |
Cover, Engine, NO.1
2022-08 → —
|
1NRVE NGC101 RHD M | — | |
| 12611-BZ020 note |
Cover, Engine, NO.1
2022-08 → —
|
1NRVE NGC101 LHD H +1 | — | |
| 15330A — Ring, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90068-14041 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
