Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

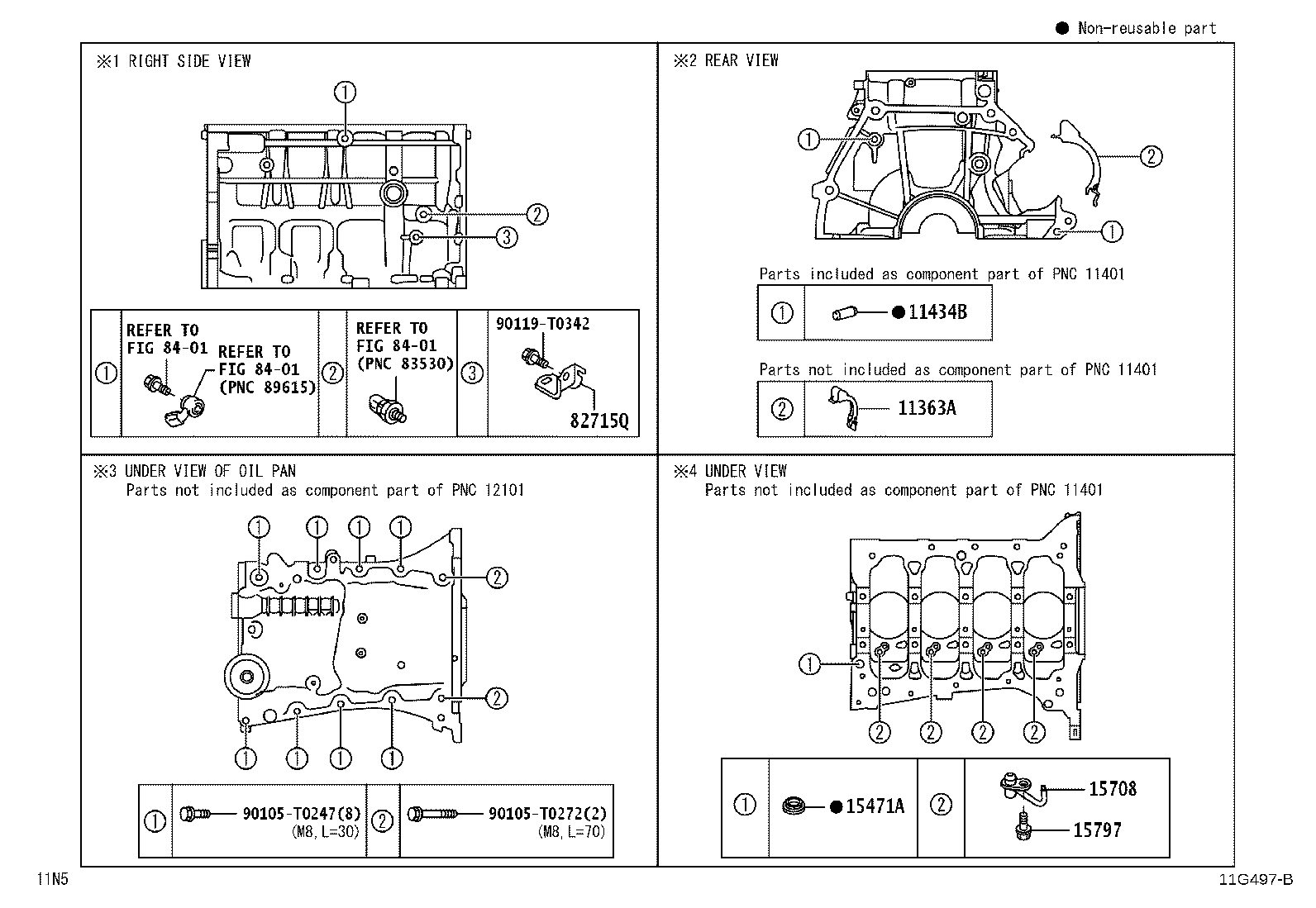

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11363A — Cover, Flywheel Housing Side | ||||
| 11363-0Y020 |
Cover, Flywheel Housing Side
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 11434B — Pin, Straight(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 90250-T0018 note |
Pin, Straight(FOR CLUTCH HOUSING SET)
2022-08 → —
|
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP | — | |
| 15471A — Gasket(FOR CLYINDER BLOCK) | ||||
| 90430-T0022 |
Gasket(FOR CLYINDER BLOCK)
2022-08 → —
|
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP | — | |
| 90430-T0023 |
Gasket(FOR CLYINDER BLOCK)
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 15708 — Nozzle Sub-assy, Oil, NO.1 | ||||
| 15708-0Y040 |
Nozzle Sub-assy, Oil, NO.1
2022-08 → 2023-11
ended
|
3NRVE NGC100 | — | |
| 15708-0Y040 |
Nozzle Sub-assy, Oil, NO.1
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 15708-BZ020 |
Nozzle Sub-assy, Oil, NO.1
2023-12 → —
|
3NRVE NGC100 | — | |
| 15797 — Bolt, Oil Nozzle Union | ||||
| 90110-06040 |
Bolt, Oil Nozzle Union
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 90110-T0002 |
Bolt, Oil Nozzle Union
2022-08 → —
|
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP | — | |
| 82715Q — Bracket, Wiring Harness Clamp | ||||
| 82715-BZK80 |
Bracket, Wiring Harness Clamp
2022-08 → —
|
NGC10# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
