Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

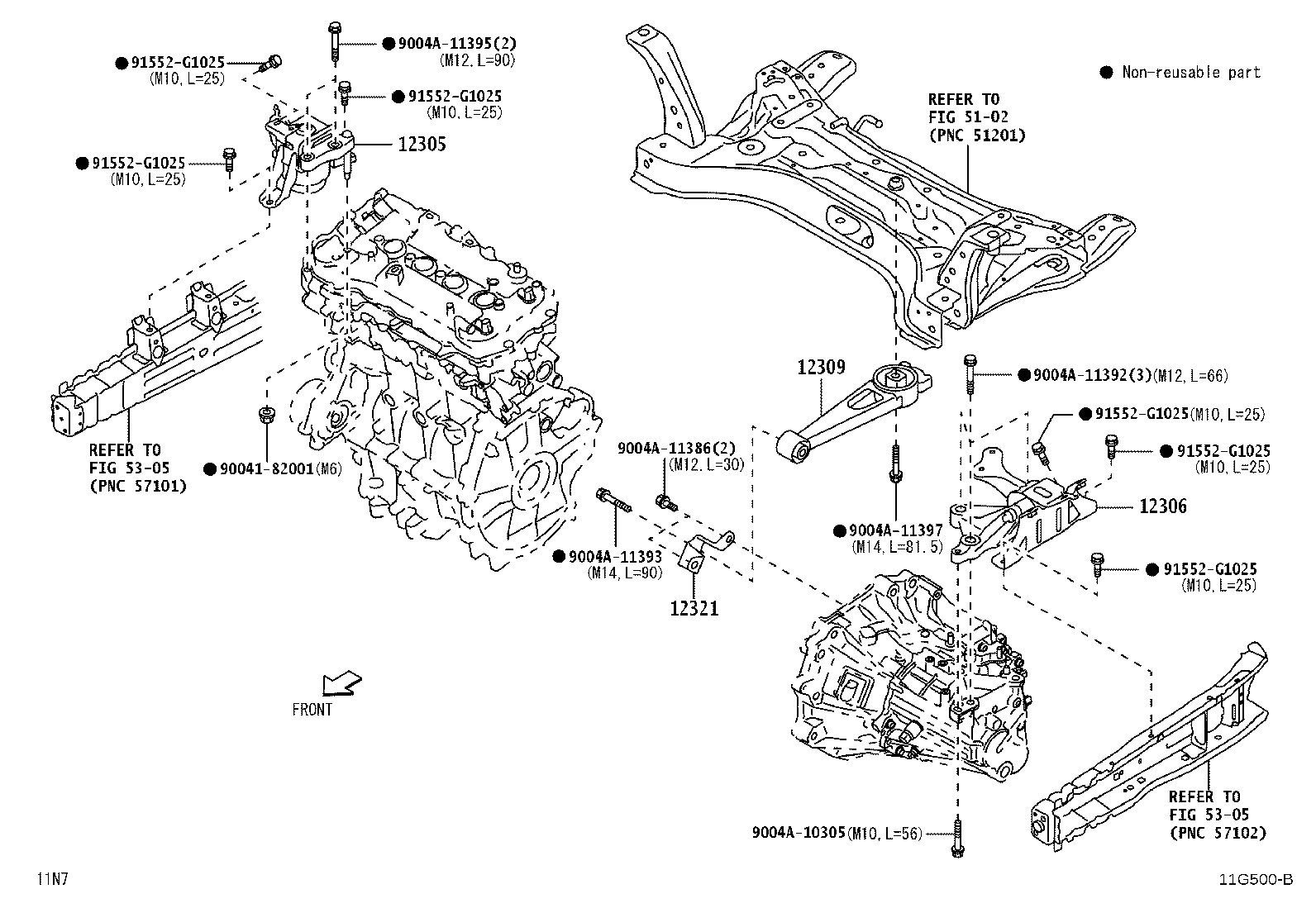

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12305 — Insulator Sub-assy, Engine Mounting, RH | ||||
| 12305-BZ370 |
Insulator Sub-assy, Engine Mounting, RH
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 12305-BZ400 |
Insulator Sub-assy, Engine Mounting, RH
2022-08 → —
|
1NRVE,2NRVE NGC101,102 THP CVT | — | |
| 12305-BZ410 |
Insulator Sub-assy, Engine Mounting, RH
2022-08 → —
|
1NRVE,2NRVE NGC101,102 5F | — | |
| 12305-BZ420 |
Insulator Sub-assy, Engine Mounting, RH
2022-08 → —
|
3NRVE NGC100 | — | |
| 12306 — Insulator Sub-assy, Engine Mounting, LH | ||||
| 12306-BZ410 |
Insulator Sub-assy, Engine Mounting, LH
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 12306-BZ430 |
Insulator Sub-assy, Engine Mounting, LH
2022-08 → —
|
1NRVE,2NRVE NGC101,102 THP CVT | — | |
| 12306-BZ440 |
Insulator Sub-assy, Engine Mounting, LH
2022-08 → —
|
1NRVE,2NRVE NGC101,102 5F | — | |
| 12306-BZ450 |
Insulator Sub-assy, Engine Mounting, LH
2022-08 → —
|
3NRVE NGC100 | — | |
| 12309 — Rod Sub-assy, Engine Moving Control | ||||
| 12309-BZ310 |
Rod Sub-assy, Engine Moving Control
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 12309-BZ320 |
Rod Sub-assy, Engine Moving Control
2022-08 → —
|
1NRVE,2NRVE NGC101,102 THP CVT | — | |
| 12309-BZ330 |
Rod Sub-assy, Engine Moving Control
2022-08 → —
|
1NRVE,2NRVE NGC101,102 5F | — | |
| 12309-BZ340 |
Rod Sub-assy, Engine Moving Control
2022-08 → —
|
3NRVE NGC100 | — | |
| 12321 — Bracket, Engine Mounting, Rear, NO.1 | ||||
| 12321-BZ380 |
Bracket, Engine Mounting, Rear, NO.1
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
