Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

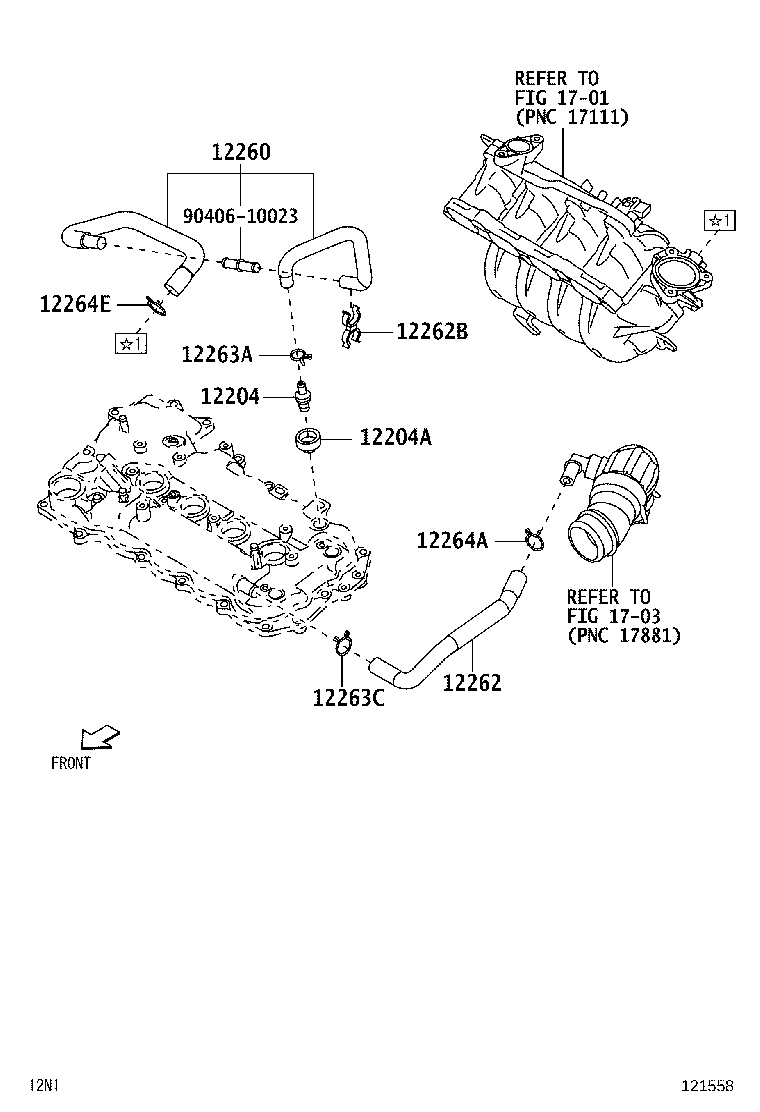

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12204 — Valve Sub-assy, Ventilation | ||||
| 12204-0Y020 |
Valve Sub-assy, Ventilation
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 12204-0Y040 |
Valve Sub-assy, Ventilation
2022-08 → —
|
3NRVE NGC100 | — | |
| 12204A — Grommet(FOR VENTILATION SYSTEM) | ||||
| 90480-T0013 |
Grommet(FOR VENTILATION SYSTEM)
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 12260 — Hose Assy, Ventilation | ||||
| 12260-0Y010 |
Hose Assy, Ventilation
2022-08 → —
|
3NRVE NGC100 | — | |
| 12262 — Hose, Ventilation, NO.2 | ||||
| 12262-BZ190 |
Hose, Ventilation, NO.2
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 12262-BZ210 |
Hose, Ventilation, NO.2
2022-08 → —
|
3NRVE NGC100 | — | |
| 12262B — Clamp(FOR VENTILATION HOSE) | ||||
| 90464-00801 |
Clamp(FOR VENTILATION HOSE)
2022-08 → —
|
3NRVE NGC100 | — | |
| 12263A — Clip(FOR VENTILATION HOSE) | ||||
| 90466-T0060 |
Clip(FOR VENTILATION HOSE)
2022-08 → —
|
1NRVE,2NR# NGC101,102,NYC100 THP | — | |
| 90466-T0061 |
Clip(FOR VENTILATION HOSE)
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 90467-15021 |
Clip(FOR VENTILATION HOSE)
2022-08 → —
|
3NRVE NGC100 | — | |
| 12263C — Clip(FOR VENTILATION HOSE) | ||||
| 90466-T0020 |
Clip(FOR VENTILATION HOSE)
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 90466-T0020 |
Clip(FOR VENTILATION HOSE)
2023-08 → —
|
3NRVE NGC100 | — | |
| 90466-T0063 |
Clip(FOR VENTILATION HOSE)
2022-08 → 2023-08
ended
|
3NRVE NGC100 | — | |
| 12264A — Clip(FOR VENTILATION HOSE) | ||||
| 90466-T0020 |
Clip(FOR VENTILATION HOSE)
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 90466-T0020 |
Clip(FOR VENTILATION HOSE)
2023-08 → —
|
3NRVE NGC100 | — | |
| 90466-T0063 |
Clip(FOR VENTILATION HOSE)
2022-08 → 2023-08
ended
|
3NRVE NGC100 | — | |
| 12264E — Clip(FOR VENTILATION HOSE) | ||||
| 90466-T0032 |
Clip(FOR VENTILATION HOSE)
2022-08 → —
|
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP | — | |
| 90466-T0062 |
Clip(FOR VENTILATION HOSE)
2023-03 → —
|
2NRVE NGC102 MA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
