Toyota Vios/Yaris/Yarisativ

2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

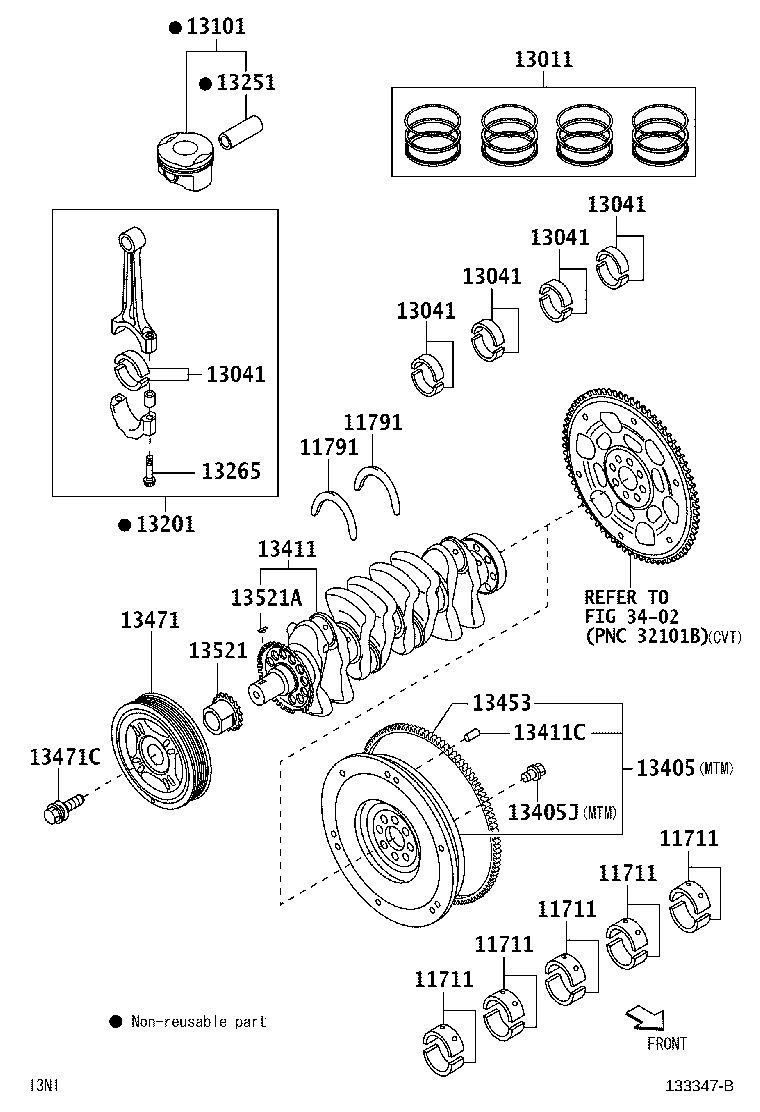

Exploded illustration 133347B 11711 — BEARING, CRANKSHAFT (8 parts) 11711 — BEARING, CRANKSHAFT (8 parts) 11711 — BEARING, CRANKSHAFT (8 parts) 11711 — BEARING, CRANKSHAFT (8 parts) 11711 — BEARING, CRANKSHAFT (8 parts) 13011 — RING SET, PISTON (2 parts) 13041 — BEARING, CONNECTING ROD (3 parts) 13101 — PISTON SUB-ASSY, W/PIN (3 parts) 13251 — PIN, PISTON (2 parts) 13201 — ROD SUB-ASSY, CONNECTING (3 parts) 13411 — CRANKSHAFT (4 parts) 13521A — KEY(FOR CRANKSHAFT TIMING GEAR) (1 parts) 13471 — PULLEY, CRANKSHAFT (3 parts) 13521 — GEAR OR SPROCKET, CRANKSHAFT TIMING (2 parts) 13471C — BOLT(FOR CRANKSHAFT PULLEY SET) (1 parts) 13041 — BEARING, CONNECTING ROD (3 parts) 13041 — BEARING, CONNECTING ROD (3 parts) 13041 — BEARING, CONNECTING ROD (3 parts) 11791 — WASHER, CRANKSHAFT THRUST, UPPER (2 parts) 11791 — WASHER, CRANKSHAFT THRUST, UPPER (2 parts) 13265 — BOLT, CONNECTING ROD (2 parts) 13041 — BEARING, CONNECTING ROD (3 parts) 3402 — not listed in this catalogue 13411C — PIN, STRAIGHT(FOR CRANKSHAFT) (1 parts) 13453 — GEAR, FLYWHEEL RING (1 parts) 13405 — FLYWHEEL SUB-ASSY (1 parts) 13405J — BOLT(FOR FLYWHEEL) (1 parts)
133347B · 26 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
11711 — Bearing, Crankshaft
11701-0Y030-02 note Bearing, Crankshaft
2022-08 → —
1NRVE,2NRVE NGC101,102 —
11701-0Y030-03 note Bearing, Crankshaft
2022-08 → —
1NRVE,2NRVE NGC101,102 —
11701-0Y030-04 note Bearing, Crankshaft
2022-08 → —
1NRVE,2NRVE NGC101,102 —
11701-0Y030-05 note Bearing, Crankshaft
2022-08 → —
1NRVE,2NRVE NGC101,102 —
11701-0Y040-02 note Bearing, Crankshaft
2022-08 → —
3NRVE NGC100 —
11701-0Y040-03 note Bearing, Crankshaft
2022-08 → —
3NRVE NGC100 —
11701-0Y040-04 note Bearing, Crankshaft
2022-08 → —
3NRVE NGC100 —
11701-0Y040-05 note Bearing, Crankshaft
2022-08 → —
3NRVE NGC100 —
11791 — Washer, Crankshaft Thrust, Upper
11791-47031 note Washer, Crankshaft Thrust, Upper
2022-08 → —
2NRVEX,3NRVE NGC100,NYC100 THP —
11791-B0010 note Washer, Crankshaft Thrust, Upper
2022-08 → —
1NRVE,2NRVE NGC101,102 —
13011 — Ring Set, Piston
13011-0Y030 note Ring Set, Piston
2022-08 → —
1NRVE,2NRVE NGC101,102 —
13011-0Y130 note Ring Set, Piston
2022-08 → —
3NRVE NGC100 —
13041 — Bearing, Connecting Rod
13041-0Y040-01 note Bearing, Connecting Rod
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# —
13041-0Y040-02 note Bearing, Connecting Rod
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# —
13041-0Y040-03 note Bearing, Connecting Rod
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# —
13101 — Piston Sub-assy, W/Pin
13101-0Y070 note Piston Sub-assy, W/Pin
2022-08 → —
3NRVE NGC100 —
13101-0Y120 note Piston Sub-assy, W/Pin
2022-08 → —
2NRVE NGC102 —
13101-0Y130 note Piston Sub-assy, W/Pin
2022-08 → —
1NRVE NGC101 —
13201 — Rod Sub-assy, Connecting
13201-09C60 Rod Sub-assy, Connecting
2022-08 → —
2NR# NGC102,NYC100 THP —
13201-09C70 Rod Sub-assy, Connecting
2022-08 → —
1NRVE,3NRVE NGC100,101 —
13201-B9095 Rod Sub-assy, Connecting
2023-03 → —
2NRVE NGC102 MA —
13251 — Pin, Piston
13251-0Y060 Pin, Piston
2023-03 → —
2NRVE NGC102 MA —
13251-0Y060 Pin, Piston
2022-08 → —
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP —
13265 — Bolt, Connecting Rod
13265-0Y010 Bolt, Connecting Rod
2022-08 → —
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP —
13265-0Y020 Bolt, Connecting Rod
2023-03 → —
2NRVE NGC102 MA —
13405 — Flywheel Sub-assy
13405-BZ150 Flywheel Sub-assy
2022-08 → —
1NRVE,2NRVE NGC101,102 5F —
13405J — Bolt(FOR FLYWHEEL)
90913-01029 Bolt(FOR FLYWHEEL)
2022-08 → —
1NRVE,2NRVE NGC101,102 5F —
13411 — Crankshaft
13401-0Y150 Crankshaft
2022-08 → —
2NR# NGC102,NYC100 THP —
13401-0Y160 Crankshaft
2022-08 → —
3NRVE NGC100 —
13401-0Y170 Crankshaft
2022-08 → —
1NRVE NGC101 —
13401-BZ100 Crankshaft
2023-03 → —
2NRVE NGC102 MA —
13411C — Pin, Straight(FOR CRANKSHAFT)
9004A-25035 Pin, Straight(FOR CRANKSHAFT)
2022-08 → —
1NRVE,2NRVE NGC101,102 5F —
13453 — Gear, Flywheel Ring
13453-87Z03 Gear, Flywheel Ring
2022-08 → —
1NRVE,2NRVE NGC101,102 5F —
13471 — Pulley, Crankshaft
13470-0Y020 Pulley, Crankshaft
2023-03 → —
2NRVE NGC102 MA —
13470-0Y030 Pulley, Crankshaft
2022-08 → —
1NRVE,2NRVE NGC101,102 THP —
13470-0Y040 Pulley, Crankshaft
2022-08 → —
3NRVE NGC100 —
13471C — Bolt(FOR CRANKSHAFT PULLEY SET)
90119-T0444 Bolt(FOR CRANKSHAFT PULLEY SET)
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# —
13521 — Gear OR Sprocket, Crankshaft Timing
13521-0Y070 Gear OR Sprocket, Crankshaft Timing
2022-08 → —
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP —
13521-BZ040 Gear OR Sprocket, Crankshaft Timing
2023-03 → —
2NRVE NGC102 MA —
13521A — Key(FOR CRANKSHAFT TIMING GEAR)
90280-04001 Key(FOR CRANKSHAFT TIMING GEAR)
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
