Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

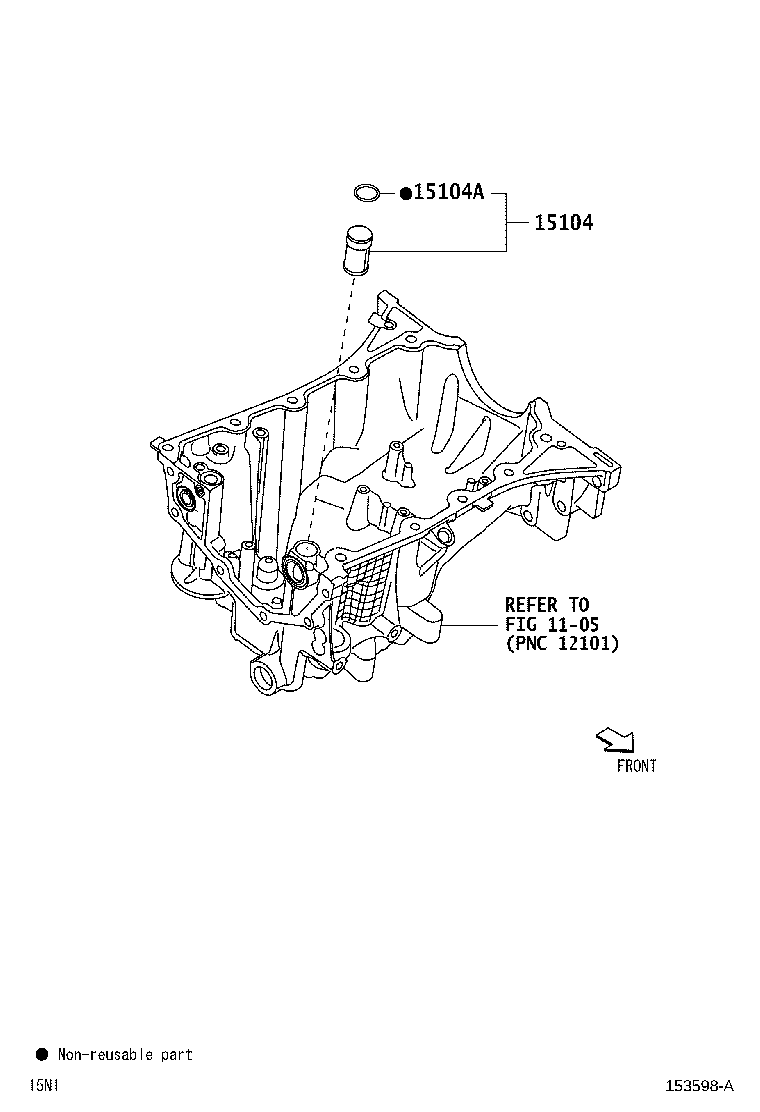

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15104 — Strainer Sub-assy, Oil | ||||
| 15104-0Y010 |
Strainer Sub-assy, Oil
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 15104A — Ring, O(FOR OIL STRAINER) | ||||
| 90301-T0061 |
Ring, O(FOR OIL STRAINER)
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
