Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

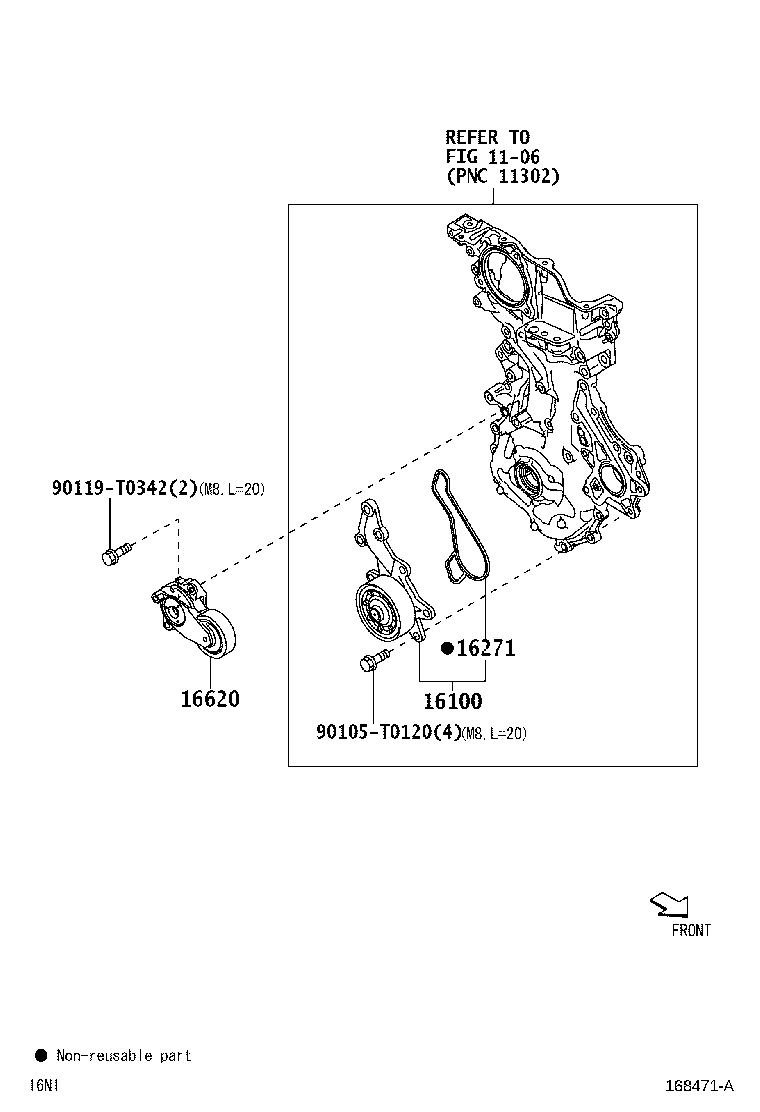

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-09770 |
Pump Assy, Engine Water
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# THP | — | |
| 16100-B9490 |
Pump Assy, Engine Water
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 16271 — Gasket, Water Pump | ||||
| 16271-0Y030 |
Gasket, Water Pump
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 16271-0Y040 |
Gasket, Water Pump
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# THP | — | |
| 16620 — Tensioner Assy, V-ribbed Belt | ||||
| 16620-0Y043 |
Tensioner Assy, V-ribbed Belt
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 16620-0Y061 |
Tensioner Assy, V-ribbed Belt
2022-08 → —
|
1NRVE,2NRVE NGC101,102 THP | — | |
| 16620-0Y100 |
Tensioner Assy, V-ribbed Belt
2022-08 → —
|
3NRVE NGC100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
