Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

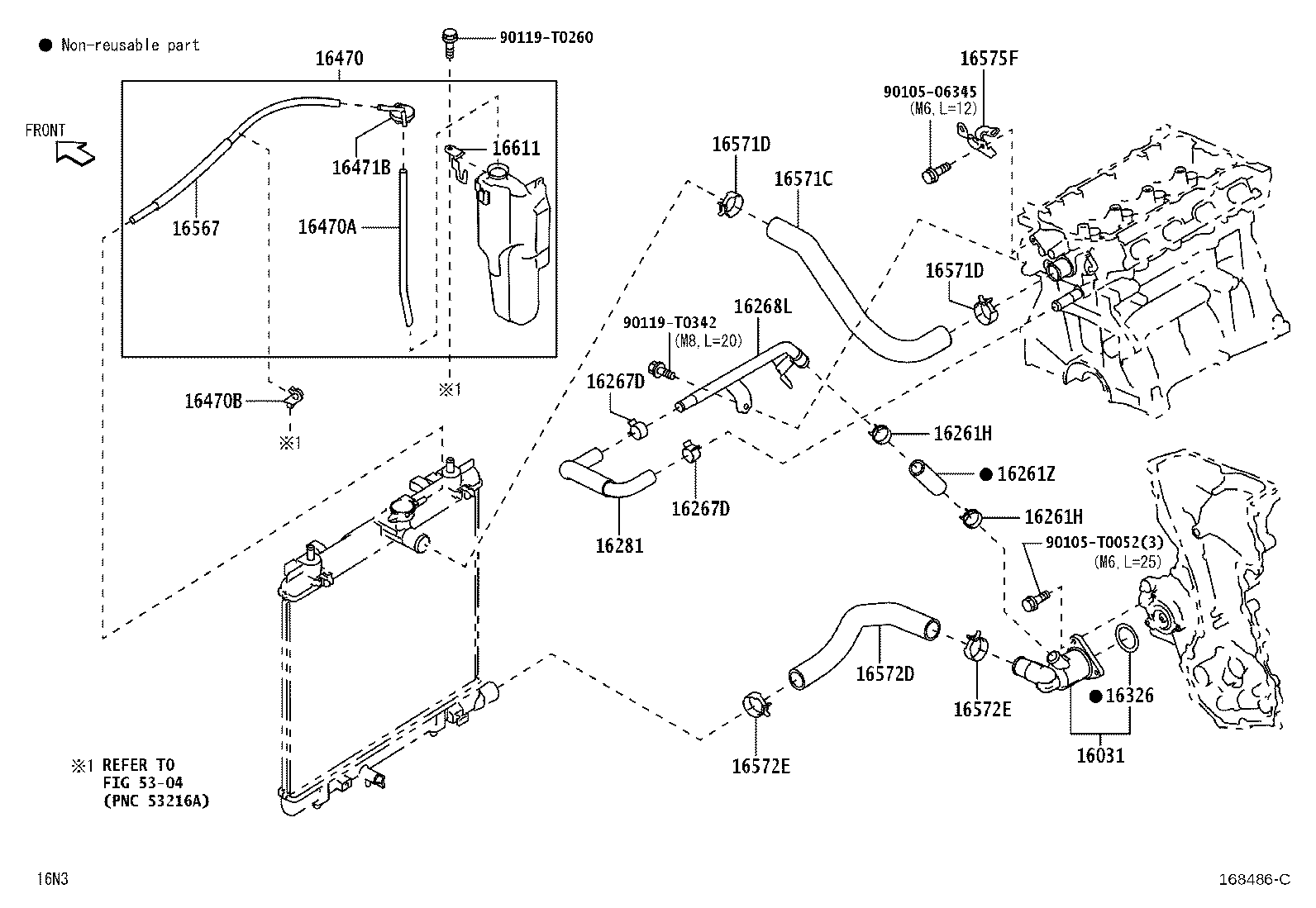

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16031 — Water Inlet Sub-assy, W/Thermostat | ||||
| 16031-0Y030 |
Water Inlet Sub-assy, W/Thermostat
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 16261H — Clip(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-66054 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 90466-T0050 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# THP | — | |
| 16261Z — Hose, Water By-pass, NO.1 | ||||
| 16261-0Y100 |
Hose, Water By-pass, NO.1
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# THP | — | |
| 16261-BZ270 |
Hose, Water By-pass, NO.1
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 16267D — Clip(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-T0020 |
Clip(FOR WATER BY-PASS HOSE NO.4)
2022-08 → —
|
2NRVE NGC102 5F H;1NRVE +3 | — | |
| 16268L — Pipe, Water By-pass | ||||
| 16268-0Y040 |
Pipe, Water By-pass
2022-08 → —
|
1NRVE,2NRVE NGC101,102 LHD 5F +1 | — | |
| 16268-0Y140 |
Pipe, Water By-pass
2022-08 → —
|
3NRVE NGC100 | — | |
| 16268-0Y150 |
Pipe, Water By-pass
2022-08 → —
|
2NRVE NGC102 5F H;1NRVE +6 | — | |
| 16268-0Y180 |
Pipe, Water By-pass
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 16281 — Hose, Water By-pass, NO.4 | ||||
| 16281-BZ150 |
Hose, Water By-pass, NO.4
2022-08 → —
|
2NRVE NGC102 5F H;1NRVE +3 | — | |
| 16326 — Gasket, Water Inlet Housing, NO.2 | ||||
| 16326-0Y010 |
Gasket, Water Inlet Housing, NO.2
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 16470 — Tank Assy, Radiator Reserve | ||||
| 16470-BZ350 |
Tank Assy, Radiator Reserve
2022-08 → —
|
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP | — | |
| 16470-BZ430 |
Tank Assy, Radiator Reserve
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 16470A — Hose OR Pipe(FOR RADIATOR RESERVE TANK) | ||||
| 16472-BZ190 |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 16472-BZ210 |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2022-08 → —
|
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP | — | |
| 16470B — Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 9004A-46408 |
Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 16471B — Cap, Reserve Tank | ||||
| 16471-BZ120 |
Cap, Reserve Tank
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 16471-BZ140 |
Cap, Reserve Tank
2022-08 → —
|
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP | — | |
| 16567 — Hose(FOR RADIATOR RESERVE TANK) | ||||
| 16472-BZ180 |
Hose(FOR RADIATOR RESERVE TANK)
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 16472-BZ200 |
Hose(FOR RADIATOR RESERVE TANK)
2022-08 → —
|
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP | — | |
| 16571C — Hose, Radiator, NO.1 | ||||
| 16571-BZ470 |
Hose, Radiator, NO.1
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 16571-BZ471 |
Hose, Radiator, NO.1
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# THP | — | |
| 16571D — Clip, Radiator Hose, NO.1 | ||||
| 96136-43901 |
Clip, Radiator Hose, NO.1
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 16572D — Hose, Radiator, NO.2 | ||||
| 16572-BZ410 |
Hose, Radiator, NO.2
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 16572E — Clip, Radiator Hose, NO.2 | ||||
| 96136-43901 |
Clip, Radiator Hose, NO.2
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 16575F — Bracket, Water Hose Clamp, NO.3 | ||||
| 16575-BZ090 |
Bracket, Water Hose Clamp, NO.3
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 16611 — Bracket, Radiator Reserve Tank | ||||
| 16611-BZ030 |
Bracket, Radiator Reserve Tank
2022-08 → —
|
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP | — | |
| 16611-BZ070 |
Bracket, Radiator Reserve Tank
2023-03 → —
|
2NRVE NGC102 MA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
