Toyota Vios/Yaris/Yarisativ

2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

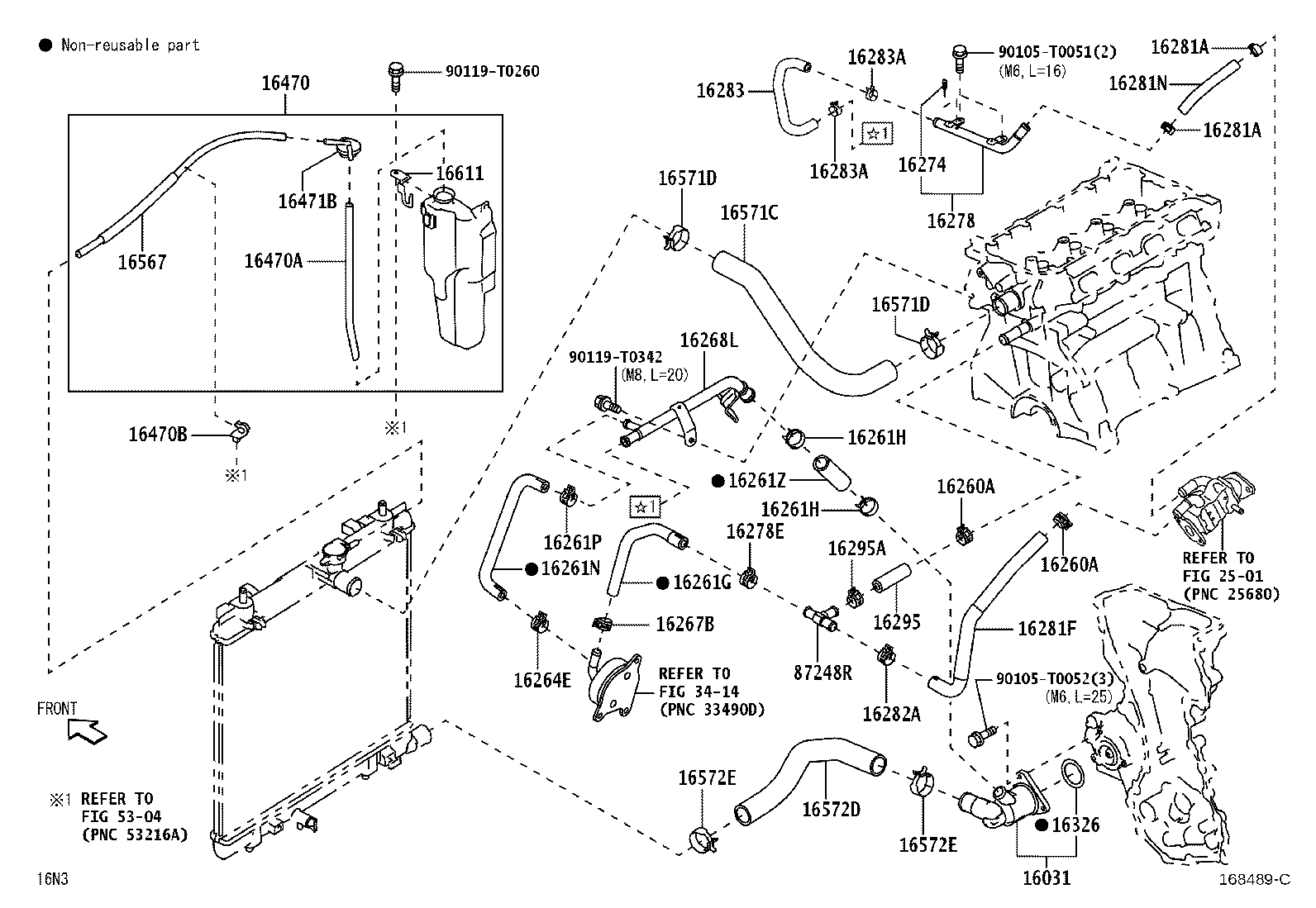

Exploded illustration 168489C 16031 — WATER INLET SUB-ASSY, W/THERMOSTAT (1 parts) 16261G — HOSE, WATER BY-PASS, NO.1 (2 parts) 16261H — CLIP(FOR WATER BY-PASS HOSE NO.1) (2 parts) 16281A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) (1 parts) 16281N — HOSE, WATER BY-PASS, NO.4 (1 parts) 16274 — PLUG, WATER BY-PASS (1 parts) 16278 — PIPE, WATER BY-PASS, NO.2 (1 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (1 parts) 16283 — HOSE, WATER BY-PASS, NO.6 (1 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (1 parts) 16281A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) (1 parts) 16261H — CLIP(FOR WATER BY-PASS HOSE NO.1) (2 parts) 16281F — HOSE, WATER BY-PASS, NO.5 (1 parts) 16261N — HOSE, WATER BY-PASS, NO.2 (2 parts) 16261P — CLIP(FOR WATER BY-PASS HOSE NO.2) (2 parts) 16261Z — HOSE, WATER BY-PASS, NO.1 (2 parts) 16264E — CLIP(FOR WATER BY-PASS HOSE NO.2) (1 parts) 16267B — CLIP(FOR WATER BY-PASS HOSE) (1 parts) 87248R — PIPE, WATER (1 parts) 16282A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) (1 parts) 16295A — CLIP(FOR WATER BY-PASS HOSE NO.7) (1 parts) 16278E — CLIP(FOR WATER BY-PASS HOSE) (1 parts) 16260A — CLIP(FOR WATER BY-PASS HOSE ASSY) (1 parts) 16260A — CLIP(FOR WATER BY-PASS HOSE ASSY) (1 parts) 16295 — HOSE, WATER BY-PASS, NO.7 (1 parts) 16268L — PIPE, WATER BY-PASS (4 parts) 16326 — GASKET, WATER INLET HOUSING, NO.2 (1 parts) 16470 — TANK ASSY, RADIATOR RESERVE (2 parts) 16470A — HOSE OR PIPE(FOR RADIATOR RESERVE TANK) (2 parts) 16471B — CAP, RESERVE TANK (2 parts) 16611 — BRACKET, RADIATOR RESERVE TANK (2 parts) 16567 — HOSE(FOR RADIATOR RESERVE TANK) (2 parts) 16470B — CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) (1 parts) 16571C — HOSE, RADIATOR, NO.1 (2 parts) 16571D — CLIP, RADIATOR HOSE, NO.1 (1 parts) 16571D — CLIP, RADIATOR HOSE, NO.1 (1 parts) 16572D — HOSE, RADIATOR, NO.2 (1 parts) 16572E — CLIP, RADIATOR HOSE, NO.2 (1 parts) 16572E — CLIP, RADIATOR HOSE, NO.2 (1 parts) 90119T0260 — not listed in this catalogue 90105T0051 — not listed in this catalogue 90105T0052 — not listed in this catalogue 90119T0342 — not listed in this catalogue 2501 — not listed in this catalogue 3414 — not listed in this catalogue 5304 — not listed in this catalogue
168489C · 39 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
47 parts on this figure
Part number Description Fitment Price
16031 — Water Inlet Sub-assy, W/Thermostat
16031-0Y030 Water Inlet Sub-assy, W/Thermostat
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# —
16260A — Clip(FOR WATER BY-PASS HOSE ASSY)
90466-T0020 Clip(FOR WATER BY-PASS HOSE ASSY)
2022-08 → —
3NRVE NGC100 —
16261G — Hose, Water By-pass, NO.1
16261-BZ430 note Hose, Water By-pass, NO.1
2022-08 → —
2NRVE NGC102 RHD CVT;1NRVE,2NRVE +3 —
16261-BZ670 note Hose, Water By-pass, NO.1
2022-08 → —
3NRVE NGC100 —
16261H — Clip(FOR WATER BY-PASS HOSE NO.1)
90044-66054 Clip(FOR WATER BY-PASS HOSE NO.1)
2023-03 → —
2NRVE NGC102 MA —
90466-T0050 Clip(FOR WATER BY-PASS HOSE NO.1)
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# THP —
16261N — Hose, Water By-pass, NO.2
16264-BZ230 Hose, Water By-pass, NO.2
2022-08 → —
2NRVE NGC102 RHD CVT;1NRVE,2NRVE +3 —
16264-BZ270 Hose, Water By-pass, NO.2
2022-08 → —
3NRVE NGC100 —
16261P — Clip(FOR WATER BY-PASS HOSE NO.2)
90466-T0017 Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → —
3NRVE NGC100 —
90466-T0020 Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → —
2NRVE NGC102 RHD CVT;1NRVE,2NRVE +3 —
16261Z — Hose, Water By-pass, NO.1
16261-0Y100 Hose, Water By-pass, NO.1
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# THP —
16261-BZ270 Hose, Water By-pass, NO.1
2023-03 → —
2NRVE NGC102 MA —
16264E — Clip(FOR WATER BY-PASS HOSE NO.2)
90466-T0017 Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → —
2NRVE NGC102 RHD CVT;1NRVE,2NRVE,3NRVE +3 —
16267B — Clip(FOR WATER BY-PASS HOSE)
90466-T0017 Clip(FOR WATER BY-PASS HOSE)
2022-08 → —
2NRVE NGC102 RHD CVT;1NRVE,2NRVE,3NRVE +3 —
16268L — Pipe, Water By-pass
16268-0Y040 Pipe, Water By-pass
2022-08 → —
1NRVE,2NRVE NGC101,102 LHD 5F +1 —
16268-0Y140 Pipe, Water By-pass
2022-08 → —
3NRVE NGC100 —
16268-0Y150 Pipe, Water By-pass
2022-08 → —
2NRVE NGC102 5F H;1NRVE +6 —
16268-0Y180 Pipe, Water By-pass
2023-03 → —
2NRVE NGC102 MA —
16274 — Plug, Water By-pass
47547-20010 Plug, Water By-pass
2022-08 → —
3NRVE NGC100 —
16278 — Pipe, Water By-pass, NO.2
16270-BZ020 Pipe, Water By-pass, NO.2
2022-08 → —
3NRVE NGC100 —
16278E — Clip(FOR WATER BY-PASS HOSE)
90466-T0020 Clip(FOR WATER BY-PASS HOSE)
2022-08 → —
2NRVE NGC102 RHD CVT;1NRVE,2NRVE,3NRVE +3 —
16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
90466-T0020 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-08 → —
3NRVE NGC100 —
16281F — Hose, Water By-pass, NO.5
16282-BZ080 Hose, Water By-pass, NO.5
2022-08 → —
3NRVE NGC100 —
16281N — Hose, Water By-pass, NO.4
16281-0Y180 Hose, Water By-pass, NO.4
2022-08 → —
3NRVE NGC100 —
16282A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
90466-T0020 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-08 → —
3NRVE NGC100 —
16283 — Hose, Water By-pass, NO.6
16283-0Y041 Hose, Water By-pass, NO.6
2022-08 → —
3NRVE NGC100 —
16283A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
90466-T0020 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2022-08 → —
3NRVE NGC100 —
16295 — Hose, Water By-pass, NO.7
16295-0Y020 Hose, Water By-pass, NO.7
2022-08 → —
3NRVE NGC100 —
16295A — Clip(FOR WATER BY-PASS HOSE NO.7)
90466-T0020 Clip(FOR WATER BY-PASS HOSE NO.7)
2022-08 → —
3NRVE NGC100 —
16326 — Gasket, Water Inlet Housing, NO.2
16326-0Y010 Gasket, Water Inlet Housing, NO.2
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# —
16470 — Tank Assy, Radiator Reserve
16470-BZ350 Tank Assy, Radiator Reserve
2022-08 → —
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP —
16470-BZ430 Tank Assy, Radiator Reserve
2023-03 → —
2NRVE NGC102 MA —
16470A — Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16472-BZ190 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2023-03 → —
2NRVE NGC102 MA —
16472-BZ210 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2022-08 → —
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP —
16470B — Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
9004A-46408 Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# —
16471B — Cap, Reserve Tank
16471-BZ120 Cap, Reserve Tank
2023-03 → —
2NRVE NGC102 MA —
16471-BZ140 Cap, Reserve Tank
2022-08 → —
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP —
16567 — Hose(FOR RADIATOR RESERVE TANK)
16472-BZ180 Hose(FOR RADIATOR RESERVE TANK)
2023-03 → —
2NRVE NGC102 MA —
16472-BZ200 Hose(FOR RADIATOR RESERVE TANK)
2022-08 → —
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP —
16571C — Hose, Radiator, NO.1
16571-BZ470 Hose, Radiator, NO.1
2023-03 → —
2NRVE NGC102 MA —
16571-BZ471 Hose, Radiator, NO.1
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# THP —
16571D — Clip, Radiator Hose, NO.1
96136-43901 Clip, Radiator Hose, NO.1
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# —
16572D — Hose, Radiator, NO.2
16572-BZ410 Hose, Radiator, NO.2
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# —
16572E — Clip, Radiator Hose, NO.2
96136-43901 Clip, Radiator Hose, NO.2
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# —
16611 — Bracket, Radiator Reserve Tank
16611-BZ030 Bracket, Radiator Reserve Tank
2022-08 → —
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP —
16611-BZ070 Bracket, Radiator Reserve Tank
2023-03 → —
2NRVE NGC102 MA —
87248R — Pipe, Water
87248-26880 Pipe, Water
2022-08 → —
NGC100 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
