Toyota Vios/Yaris/Yarisativ

2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 168513B 16031 — WATER INLET SUB-ASSY, W/THERMOSTAT (1 parts) 16261G — HOSE, WATER BY-PASS, NO.1 (2 parts) 16261H — CLIP(FOR WATER BY-PASS HOSE NO.1) (2 parts) 16261H — CLIP(FOR WATER BY-PASS HOSE NO.1) (2 parts) 16261N — HOSE, WATER BY-PASS, NO.2 (2 parts) 16261P — CLIP(FOR WATER BY-PASS HOSE NO.2) (2 parts) 16261Z — HOSE, WATER BY-PASS, NO.1 (2 parts) 16264E — CLIP(FOR WATER BY-PASS HOSE NO.2) (1 parts) 16267B — CLIP(FOR WATER BY-PASS HOSE) (1 parts) 16268L — PIPE, WATER BY-PASS (4 parts) 16278E — CLIP(FOR WATER BY-PASS HOSE) (1 parts) 16326 — GASKET, WATER INLET HOUSING, NO.2 (1 parts) 16470 — TANK ASSY, RADIATOR RESERVE (2 parts) 16470A — HOSE OR PIPE(FOR RADIATOR RESERVE TANK) (2 parts) 16471B — CAP, RESERVE TANK (2 parts) 16567 — HOSE(FOR RADIATOR RESERVE TANK) (2 parts) 16470B — CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) (1 parts) 16571C — HOSE, RADIATOR, NO.1 (2 parts) 16571D — CLIP, RADIATOR HOSE, NO.1 (1 parts) 16571D — CLIP, RADIATOR HOSE, NO.1 (1 parts) 16572D — HOSE, RADIATOR, NO.2 (1 parts) 16572E — CLIP, RADIATOR HOSE, NO.2 (1 parts) 16572E — CLIP, RADIATOR HOSE, NO.2 (1 parts) 16575F — BRACKET, WATER HOSE CLAMP, NO.3 (1 parts) 9167180616 — not listed in this catalogue 9010506345 — not listed in this catalogue 90105T0052 — not listed in this catalogue 90119T0342 — not listed in this catalogue 16611 — BRACKET, RADIATOR RESERVE TANK (2 parts) 5304 — not listed in this catalogue 3414 — not listed in this catalogue

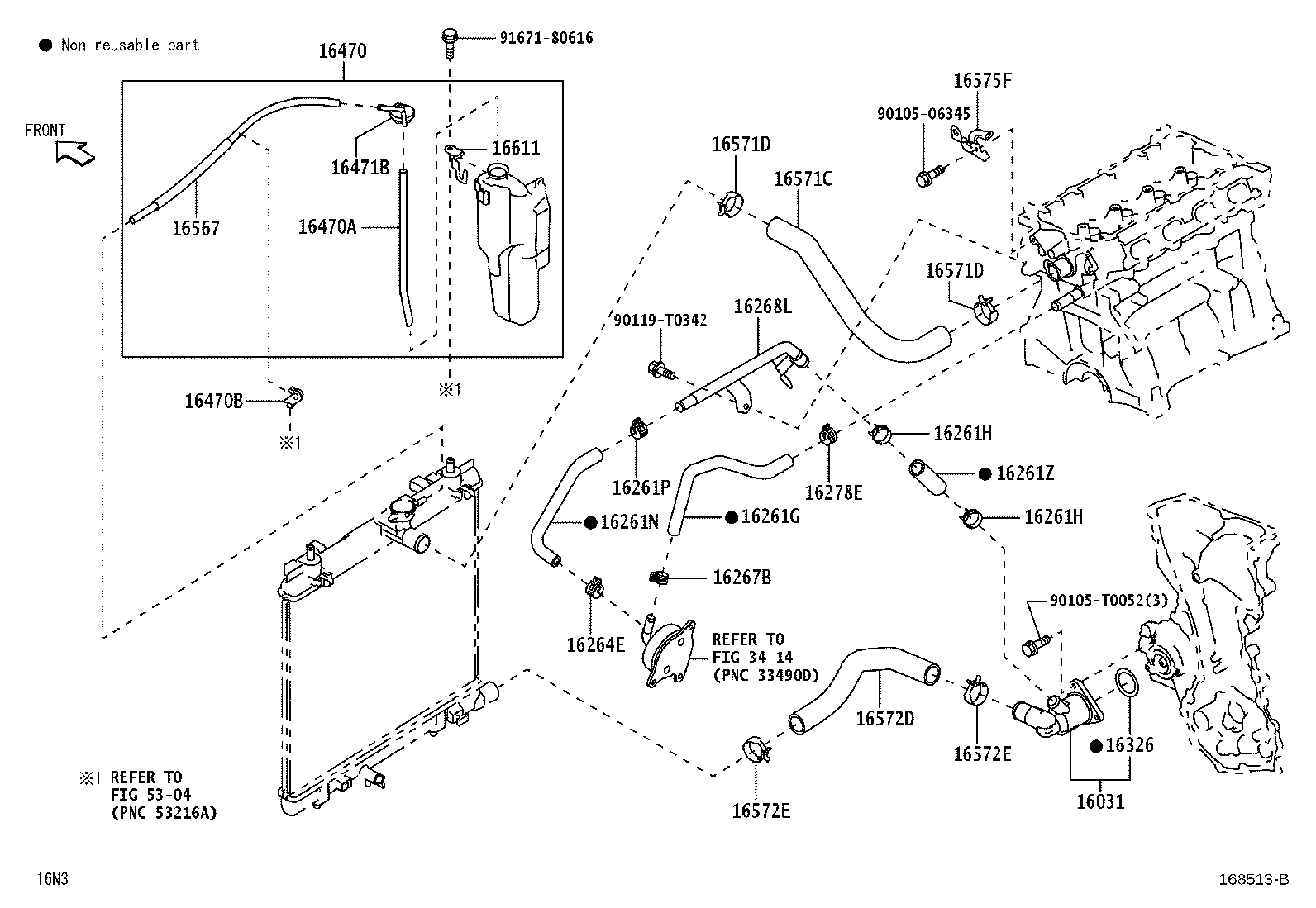

168513B · 25 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
36 parts on this figure
Part number Description Fitment Price
16031 — Water Inlet Sub-assy, W/Thermostat
16031-0Y030 Water Inlet Sub-assy, W/Thermostat
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# —
16261G — Hose, Water By-pass, NO.1
16261-BZ430 note Hose, Water By-pass, NO.1
2022-08 → —
2NRVE NGC102 RHD CVT;1NRVE,2NRVE +3 —
16261-BZ670 note Hose, Water By-pass, NO.1
2022-08 → —
3NRVE NGC100 —
16261H — Clip(FOR WATER BY-PASS HOSE NO.1)
90044-66054 Clip(FOR WATER BY-PASS HOSE NO.1)
2023-03 → —
2NRVE NGC102 MA —
90466-T0050 Clip(FOR WATER BY-PASS HOSE NO.1)
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# THP —
16261N — Hose, Water By-pass, NO.2
16264-BZ230 Hose, Water By-pass, NO.2
2022-08 → —
2NRVE NGC102 RHD CVT;1NRVE,2NRVE +3 —
16264-BZ270 Hose, Water By-pass, NO.2
2022-08 → —
3NRVE NGC100 —
16261P — Clip(FOR WATER BY-PASS HOSE NO.2)
90466-T0017 Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → —
3NRVE NGC100 —
90466-T0020 Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → —
2NRVE NGC102 RHD CVT;1NRVE,2NRVE +3 —
16261Z — Hose, Water By-pass, NO.1
16261-0Y100 Hose, Water By-pass, NO.1
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# THP —
16261-BZ270 Hose, Water By-pass, NO.1
2023-03 → —
2NRVE NGC102 MA —
16264E — Clip(FOR WATER BY-PASS HOSE NO.2)
90466-T0017 Clip(FOR WATER BY-PASS HOSE NO.2)
2022-08 → —
2NRVE NGC102 RHD CVT;1NRVE,2NRVE,3NRVE +3 —
16267B — Clip(FOR WATER BY-PASS HOSE)
90466-T0017 Clip(FOR WATER BY-PASS HOSE)
2022-08 → —
2NRVE NGC102 RHD CVT;1NRVE,2NRVE,3NRVE +3 —
16268L — Pipe, Water By-pass
16268-0Y040 Pipe, Water By-pass
2022-08 → —
1NRVE,2NRVE NGC101,102 LHD 5F +1 —
16268-0Y140 Pipe, Water By-pass
2022-08 → —
3NRVE NGC100 —
16268-0Y150 Pipe, Water By-pass
2022-08 → —
2NRVE NGC102 5F H;1NRVE +6 —
16268-0Y180 Pipe, Water By-pass
2023-03 → —
2NRVE NGC102 MA —
16278E — Clip(FOR WATER BY-PASS HOSE)
90466-T0020 Clip(FOR WATER BY-PASS HOSE)
2022-08 → —
2NRVE NGC102 RHD CVT;1NRVE,2NRVE,3NRVE +3 —
16326 — Gasket, Water Inlet Housing, NO.2
16326-0Y010 Gasket, Water Inlet Housing, NO.2
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# —
16470 — Tank Assy, Radiator Reserve
16470-BZ350 Tank Assy, Radiator Reserve
2022-08 → —
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP —
16470-BZ430 Tank Assy, Radiator Reserve
2023-03 → —
2NRVE NGC102 MA —
16470A — Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16472-BZ190 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2023-03 → —
2NRVE NGC102 MA —
16472-BZ210 Hose OR Pipe(FOR RADIATOR RESERVE TANK)
2022-08 → —
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP —
16470B — Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
9004A-46408 Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# —
16471B — Cap, Reserve Tank
16471-BZ120 Cap, Reserve Tank
2023-03 → —
2NRVE NGC102 MA —
16471-BZ140 Cap, Reserve Tank
2022-08 → —
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP —
16567 — Hose(FOR RADIATOR RESERVE TANK)
16472-BZ180 Hose(FOR RADIATOR RESERVE TANK)
2023-03 → —
2NRVE NGC102 MA —
16472-BZ200 Hose(FOR RADIATOR RESERVE TANK)
2022-08 → —
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP —
16571C — Hose, Radiator, NO.1
16571-BZ470 Hose, Radiator, NO.1
2023-03 → —
2NRVE NGC102 MA —
16571-BZ471 Hose, Radiator, NO.1
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# THP —
16571D — Clip, Radiator Hose, NO.1
96136-43901 Clip, Radiator Hose, NO.1
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# —
16572D — Hose, Radiator, NO.2
16572-BZ410 Hose, Radiator, NO.2
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# —
16572E — Clip, Radiator Hose, NO.2
96136-43901 Clip, Radiator Hose, NO.2
2022-08 → —
1NRVE,2NRVE,3NRVE NGC10# —
16575F — Bracket, Water Hose Clamp, NO.3
16575-BZ090 Bracket, Water Hose Clamp, NO.3
2022-08 → —
1NRVE,2NRVE NGC101,102 —
16611 — Bracket, Radiator Reserve Tank
16611-BZ030 Bracket, Radiator Reserve Tank
2022-08 → —
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP —
16611-BZ070 Bracket, Radiator Reserve Tank
2023-03 → —
2NRVE NGC102 MA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
