Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

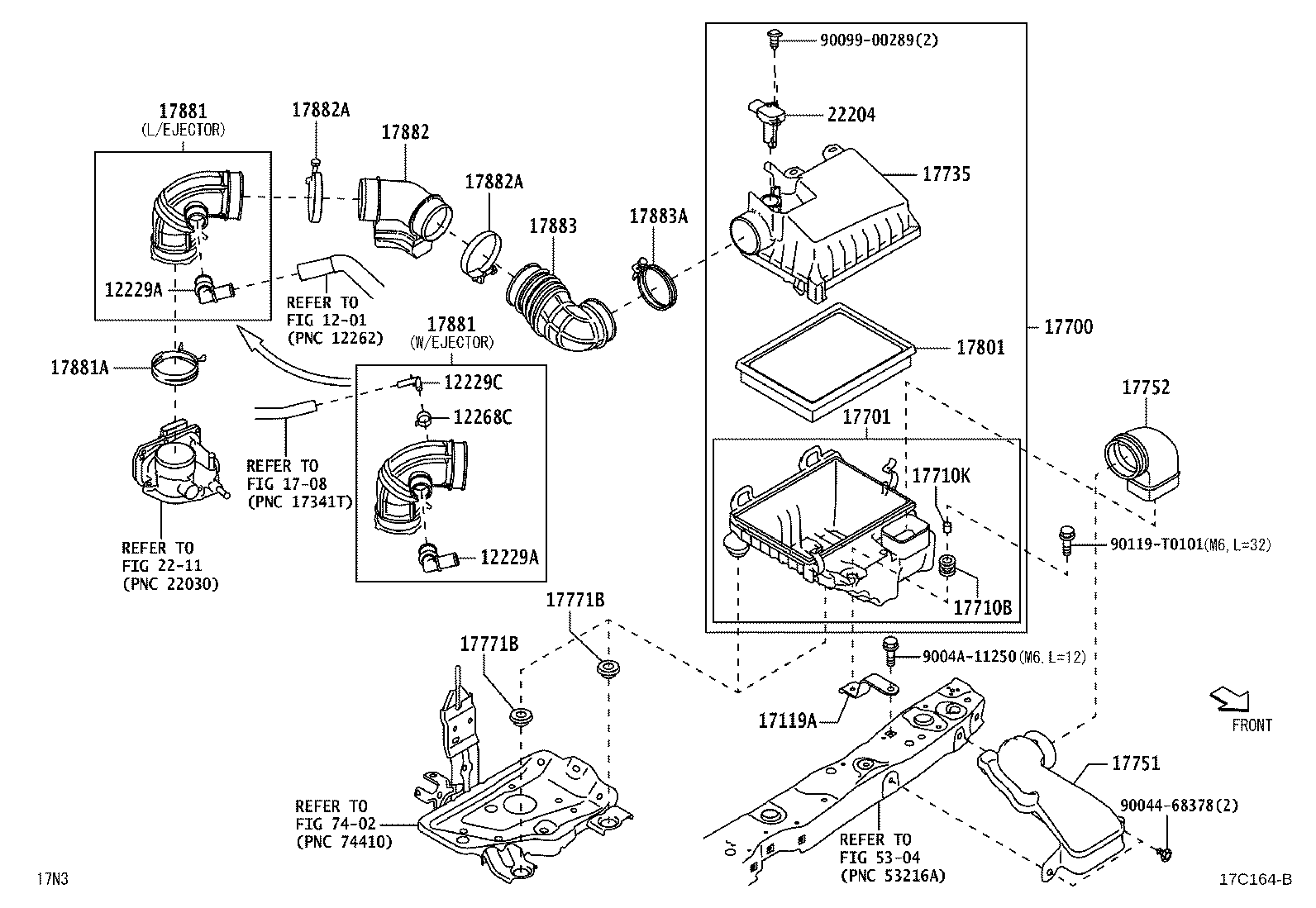

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12229A — Pipe, Ventilation | ||||
| 12229-BZ020 |
Pipe, Ventilation
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 12229C — Pipe, Ventilation, NO.2 | ||||
| 12229-0Y110 |
Pipe, Ventilation, NO.2
2022-08 → 2023-10
ended
|
1NRVE NGC101 5F L;2NRVE +6 | — | |
| 12229-0Y110 note |
Pipe, Ventilation, NO.2
2022-08 → 2023-10
ended
|
1NRVE NGC101 M GCC | — | |
| 12229-0Y110 note |
Pipe, Ventilation, NO.2
2022-08 → 2023-10
ended
|
2NRVE NGC102 5F L | — | |
| 12229-0Y110 note |
Pipe, Ventilation, NO.2
2022-08 → 2023-10
ended
|
1NRVE NGC101 LHD M +1 | — | |
| 12229-0Y110 note |
Pipe, Ventilation, NO.2
2022-08 → 2023-10
ended
|
2NRVE NGC102 5F L;2NRVE +4 | — | |
| 12268C — Clip, Hose | ||||
| 96136-41901 |
Clip, Hose
2022-08 → 2023-10
ended
|
1NRVE NGC101 5F L;2NRVE +6 | — | |
| 96136-41901 note |
Clip, Hose
2022-08 → 2023-10
ended
|
1NRVE NGC101 LHD M +1 | — | |
| 96136-41901 note |
Clip, Hose
2022-08 → 2023-10
ended
|
2NRVE NGC102 5F L;2NRVE +4 | — | |
| 96136-41901 note |
Clip, Hose
2022-08 → 2023-10
ended
|
2NRVE NGC102 5F L | — | |
| 96136-41901 note |
Clip, Hose
2022-08 → 2023-10
ended
|
1NRVE NGC101 M GCC | — | |
| 17119A — Bracket, Air Cleaner | ||||
| 17771-BZ170 |
Bracket, Air Cleaner
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 17700 — Cleaner Assy, Air | ||||
| 17700-BZ270 |
Cleaner Assy, Air
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 17700-BZ310 |
Cleaner Assy, Air
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# THP | — | |
| 17701 — Case Sub-assy, Air Cleaner | ||||
| 17701-BZ210 |
Case Sub-assy, Air Cleaner
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 17701-BZ280 |
Case Sub-assy, Air Cleaner
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# THP | — | |
| 17710B — Grommet | ||||
| 90044-80392 |
Grommet
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 17710K — Collar(FOR AIR CLEANER) | ||||
| 90042-09117 |
Collar(FOR AIR CLEANER)
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 17735 — Cap, Air Cleaner | ||||
| 17735-BZ040 |
Cap, Air Cleaner
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 17735-BZ080 |
Cap, Air Cleaner
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# THP | — | |
| 17751 — Inlet, Air Cleaner, NO.1 | ||||
| 17751-BZ190 |
Inlet, Air Cleaner, NO.1
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 17752 — Inlet, Air Cleaner, NO.2 | ||||
| 17752-BZ100 |
Inlet, Air Cleaner, NO.2
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 17771B — Grommet(FOR AIR CLEANER BRACKET) | ||||
| 9004A-48056 |
Grommet(FOR AIR CLEANER BRACKET)
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# THP | — | |
| 9004A-48062 |
Grommet(FOR AIR CLEANER BRACKET)
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-BZ110 |
Element Sub-assy, Air Cleaner Filter
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 17801-BZ200 |
Element Sub-assy, Air Cleaner Filter
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# THP | — | |
| 17881 — Hose, Air Cleaner, NO.1 | ||||
| 17881-BZ320 |
Hose, Air Cleaner, NO.1
2022-08 → —
|
3NRVE NGC100 | — | |
| 17881-BZ340 |
Hose, Air Cleaner, NO.1
2022-08 → —
|
1NRVE GEN;1NRVE NGC101 NGC101 +15 | — | |
| 17881-BZ340 |
Hose, Air Cleaner, NO.1
2023-10 → —
|
1NRVE NGC101 5F L;2NRVE +6 | — | |
| 17881-BZ340 note |
Hose, Air Cleaner, NO.1
2022-08 → 2023-10
ended
|
2NRVE NGC102 H GCC | — | |
| 17881-BZ340 note |
Hose, Air Cleaner, NO.1
2022-08 → 2023-10
ended
|
2NRVE NGC102 H GCC | — | |
| 17881-BZ350 note |
Hose, Air Cleaner, NO.1
2022-08 → 2023-10
ended
|
1NRVE NGC101 LHD M +1 | — | |
| 17881-BZ350 note |
Hose, Air Cleaner, NO.1
2022-08 → 2023-10
ended
|
2NRVE NGC102 5F L;2NRVE +4 | — | |
| 17881-BZ350 note |
Hose, Air Cleaner, NO.1
2022-08 → 2023-10
ended
|
2NRVE NGC102 5F L | — | |
| 17881-BZ350 note |
Hose, Air Cleaner, NO.1
2022-08 → 2023-10
ended
|
1NRVE NGC101 M GCC | — | |
| 17881-BZ350 |
Hose, Air Cleaner, NO.1
2022-08 → 2023-10
ended
|
1NRVE NGC101 5F L;2NRVE +6 | — | |
| 17881A — Clamp(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90466-54002 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2022-08 → —
|
3NRVE NGC100 | — | |
| 90466-62002 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 17882 — Hose, Air Cleaner, NO.2 | ||||
| 17882-BZ120 |
Hose, Air Cleaner, NO.2
2022-08 → —
|
3NRVE NGC100 | — | |
| 17882-BZ140 |
Hose, Air Cleaner, NO.2
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 17882A — Clamp(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10710 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 17883 — Hose, Air Cleaner, NO.3 | ||||
| 17883-BZ050 |
Hose, Air Cleaner, NO.3
2022-08 → —
|
3NRVE NGC100 | — | |
| 17883-BZ070 |
Hose, Air Cleaner, NO.3
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 17883A — Clamp(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-T0017 |
Clamp(FOR AIR CLEANER HOSE, NO.3)
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 22204 — Meter Sub-assy, Intake Air Flow | ||||
| 22204-BZ010 |
Meter Sub-assy, Intake Air Flow
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
