Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

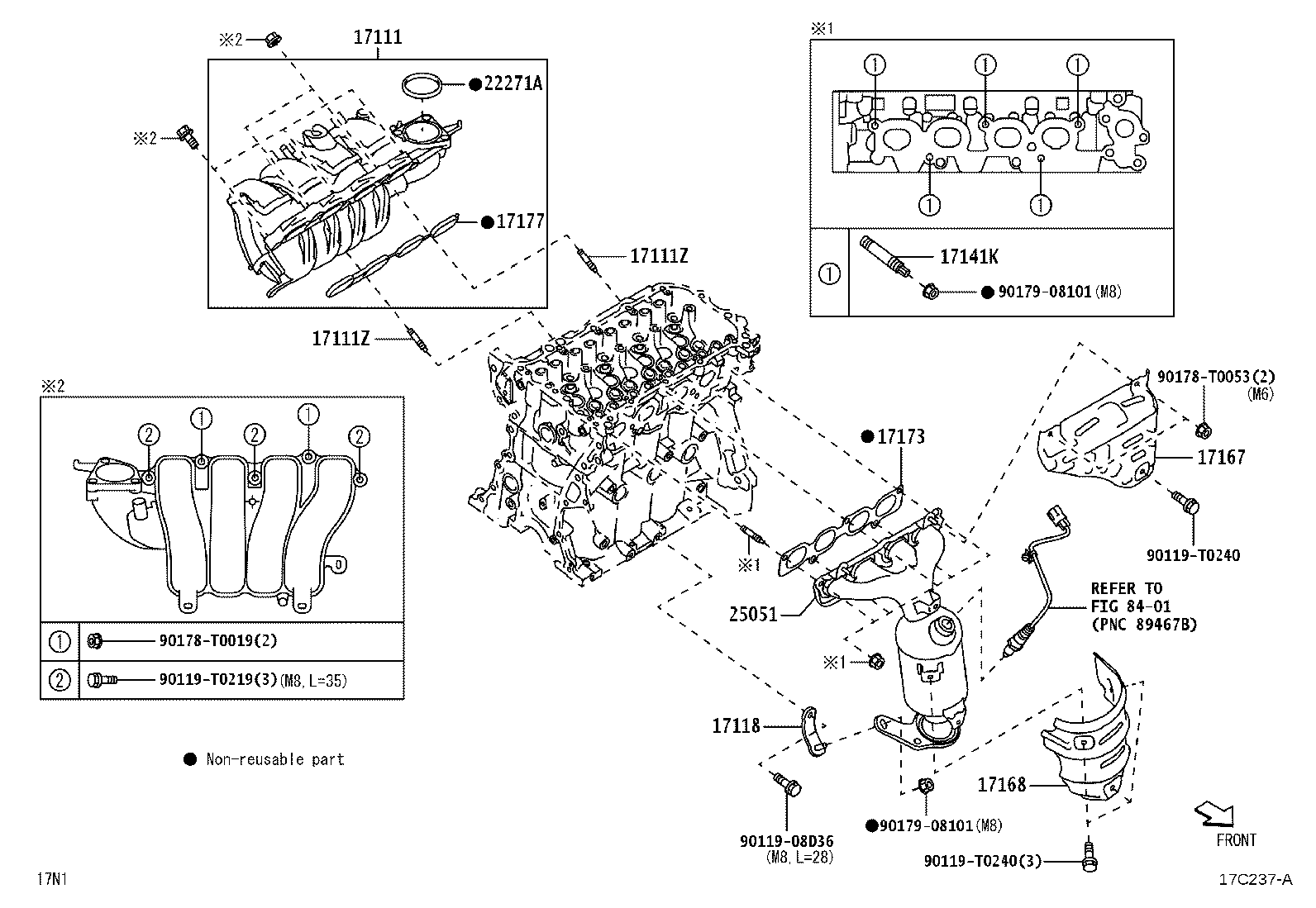

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17111 — Manifold, Intake | ||||
| 17120-0Y040 |
Manifold, Intake
2022-08 → —
|
3NRVE NGC100 | — | |
| 17120-0Y071 |
Manifold, Intake
2022-08 → —
|
1NRVE,2NRVE NGC101,102 THP | — | |
| 17120-BZ130 |
Manifold, Intake
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 17111Z — Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 9004A-12004 |
Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 90126-T0019 |
Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
2022-08 → —
|
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP | — | |
| 17118 — Stay, Manifold | ||||
| 17118-0Y031 |
Stay, Manifold
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 17118-0Y061 |
Stay, Manifold
2022-08 → —
|
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP | — | |
| 17141K — Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08063 |
Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 17167 — Insulator, Exhaust Manifold Heat, NO.1 | ||||
| 17167-0Y020 |
Insulator, Exhaust Manifold Heat, NO.1
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 17167-0Y050 |
Insulator, Exhaust Manifold Heat, NO.1
2022-08 → —
|
1NRVE,2NR# NGC101,102,NYC100 THP | — | |
| 17167-0Y060 |
Insulator, Exhaust Manifold Heat, NO.1
2022-08 → —
|
3NRVE NGC100 | — | |
| 17168 — Insulator, Exhaust Manifold Heat, NO.2 | ||||
| 17168-0Y020 |
Insulator, Exhaust Manifold Heat, NO.2
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 17168-0Y050 |
Insulator, Exhaust Manifold Heat, NO.2
2022-08 → —
|
1NRVE,2NR# NGC101,102,NYC100 THP | — | |
| 17168-0Y100 |
Insulator, Exhaust Manifold Heat, NO.2
2022-08 → —
|
3NRVE NGC100 | — | |
| 17173 — Gasket, Exhaust Manifold TO Head | ||||
| 17173-0Y030 |
Gasket, Exhaust Manifold TO Head
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 17173-0Y060 |
Gasket, Exhaust Manifold TO Head
2022-08 → —
|
1NRVE,2NR# NGC101,102,NYC100 THP | — | |
| 17173-47021 |
Gasket, Exhaust Manifold TO Head
2022-08 → —
|
3NRVE NGC100 | — | |
| 17177 — Gasket, Intake Manifold TO Head, NO.1 | ||||
| 17177-0Y030 |
Gasket, Intake Manifold TO Head, NO.1
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 22271A — Gasket, Throttle Body | ||||
| 22271-0Y030 |
Gasket, Throttle Body
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 25051 — Converter Sub-assy, Exhaust Manifold | ||||
| 25051-BZ140 |
Converter Sub-assy, Exhaust Manifold
2022-08 → —
|
1NRVE NGC101 L,M;2NRVE NGC102 +7 | — | |
| 25051-BZ150 |
Converter Sub-assy, Exhaust Manifold
2022-08 → —
|
1NRVE NGC101 RHD H;2NRVE +3 | — | |
| 25051-BZ150 note |
Converter Sub-assy, Exhaust Manifold
2022-08 → —
|
2NRVE NGC102 RHD CVT +1 | — | |
| 25051-BZ150 note |
Converter Sub-assy, Exhaust Manifold
2022-08 → —
|
2NRVE NGC102 5F L;2NRVE +4 | — | |
| 25051-BZ150 note |
Converter Sub-assy, Exhaust Manifold
2022-08 → —
|
1NRVE NGC101 RHD M | — | |
| 25051-BZ150 note |
Converter Sub-assy, Exhaust Manifold
2022-08 → —
|
2NRVE NGC102 5F L;2NRVE +4 | — | |
| 25051-BZ150 note |
Converter Sub-assy, Exhaust Manifold
2022-08 → —
|
2NRVE NGC102 LHD (H,M) +1 | — | |
| 25051-BZ200 |
Converter Sub-assy, Exhaust Manifold
2022-08 → —
|
3NRVE NGC100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
