Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

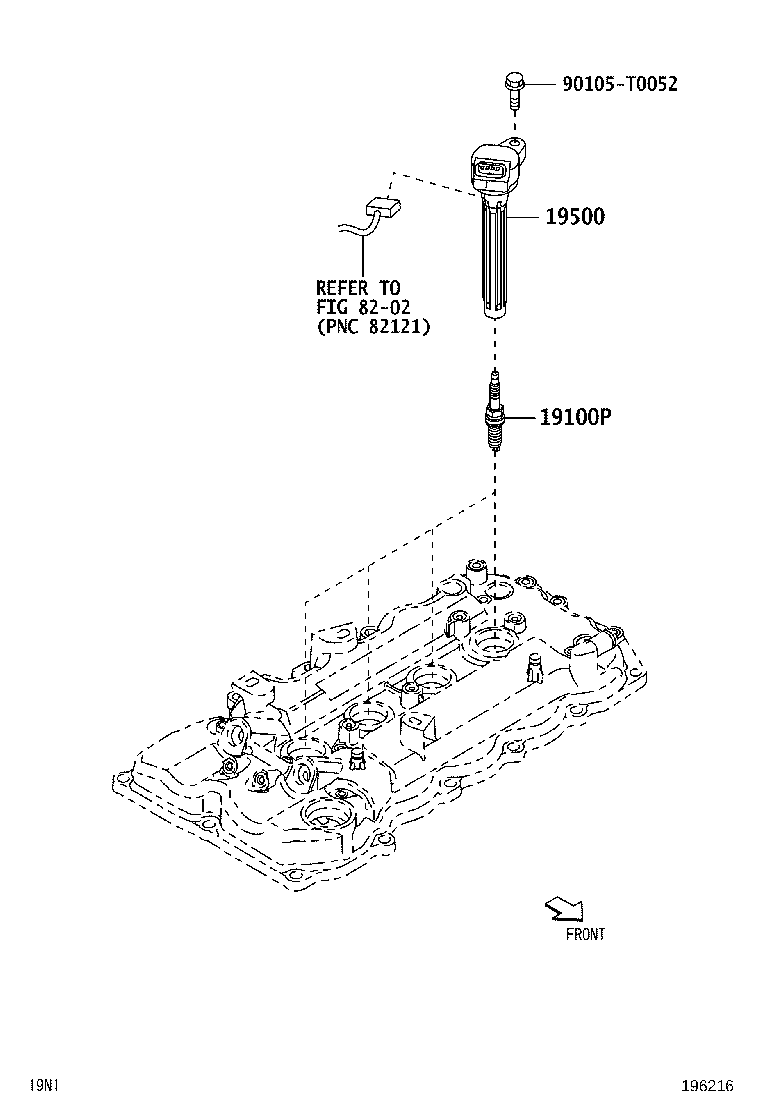

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19100P — Plug, Spark | ||||
| 9004A-91068 note |
Plug, Spark
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 90919-01275 note |
Plug, Spark
2022-08 → —
|
1NRVE,2NRVE NGC101,102 THP | — | |
| 90919-01289 note |
Plug, Spark
2022-08 → —
|
3NRVE NGC100 | — | |
| 19500 — Coil Assy, Ignition | ||||
| 90919-T2010 |
Coil Assy, Ignition
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
