Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

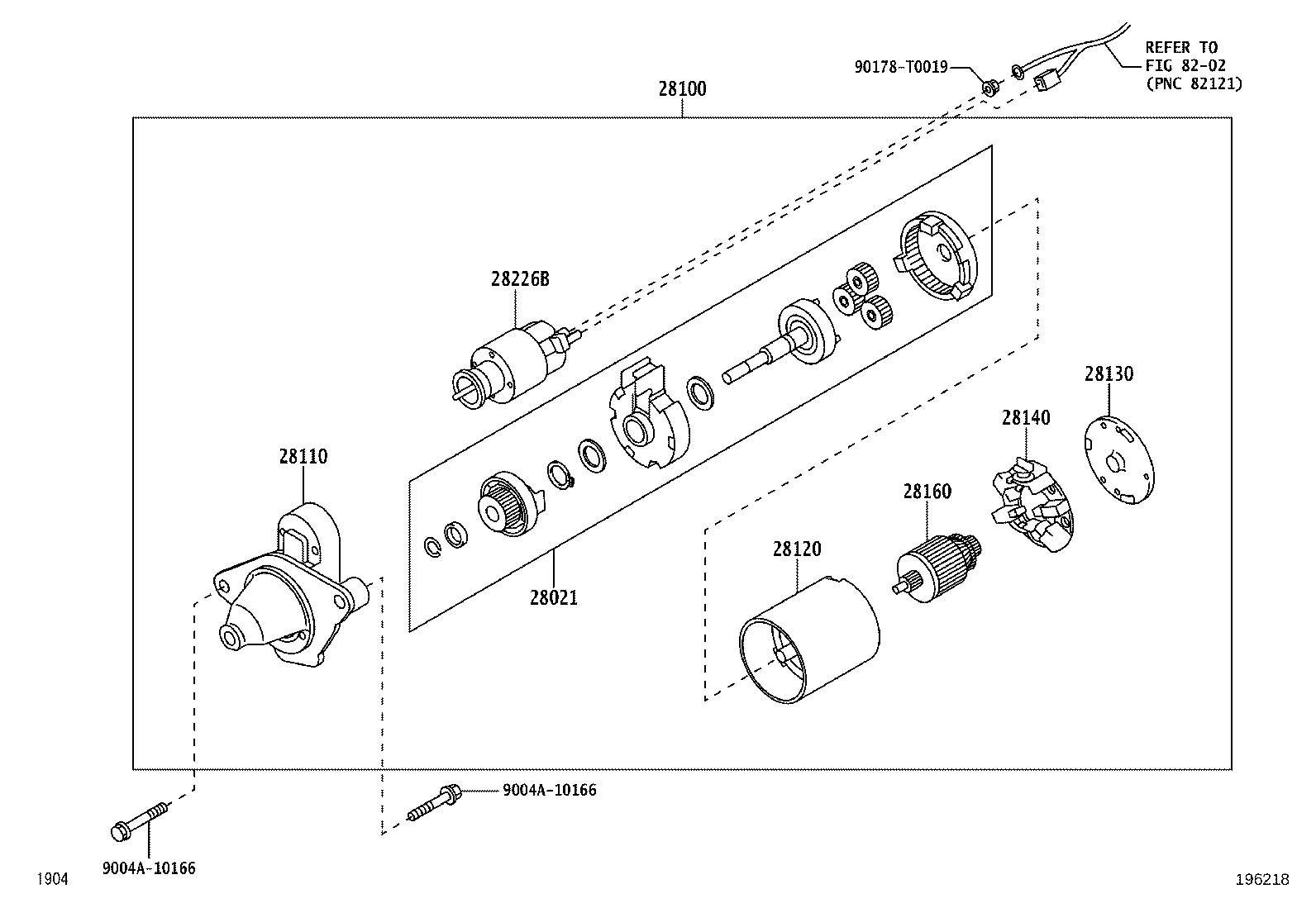

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28021 — Clutch Sub-assy, Starter Center Bearing | ||||
| 28021-BZ050 |
Clutch Sub-assy, Starter Center Bearing
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 28100 — Starter Assy | ||||
| 28100-BZ310 note |
Starter Assy
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 28100-BZ350 note |
Starter Assy
2022-08 → —
|
3NRVE NGC100 | — | |
| 28110 — Housing Assy, Starter Drive | ||||
| 28110-BZ180 |
Housing Assy, Starter Drive
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 28120 — Yoke Assy, Starter | ||||
| 28120-BZ090 |
Yoke Assy, Starter
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 28130 — Frame Assy, Starter Commutator End | ||||
| 28130-BZ140 |
Frame Assy, Starter Commutator End
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 28140 — Holder Assy, Starter Brush | ||||
| 28140-BZ030 |
Holder Assy, Starter Brush
2022-08 → —
|
3NRVE NGC100 | — | |
| 28140-BZ140 |
Holder Assy, Starter Brush
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 28160 — Armature Assy, Starter | ||||
| 28160-BZ040 |
Armature Assy, Starter
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
| 28226B — Starter Kit, Repair Service | ||||
| 28226-BZ010 |
Starter Kit, Repair Service
2022-08 → —
|
1NRVE,2NRVE NGC101,102 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
