Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

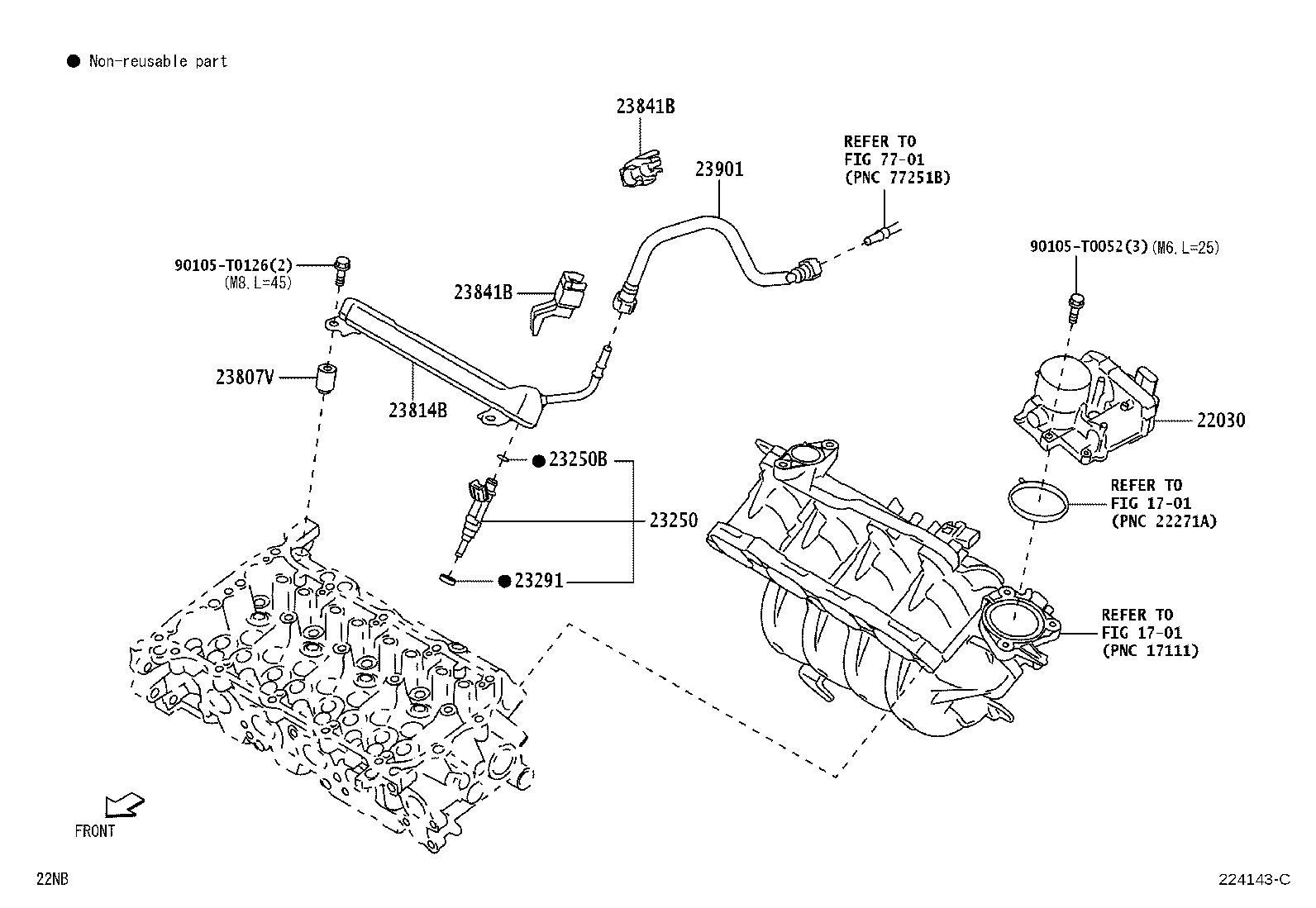

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 22030 — Body Assy, Throttle W/Throttle Position Sensor | ||||
| 22030-BZ150 |
Body Assy, Throttle W/Throttle Position Sensor
2022-08 → —
|
2NRVE NGC102 RHD;1NRVE,2NRVE NGC101,102 +1 | — | |
| 22030-BZ160 |
Body Assy, Throttle W/Throttle Position Sensor
2022-08 → —
|
1NRVE NGC101 GCC,GEN;2NRVE NGC102 +2 | — | |
| 22030-BZ160 note |
Body Assy, Throttle W/Throttle Position Sensor
2022-08 → —
|
2NRVE NGC102 RHD CVT +2 | — | |
| 22030-BZ160 note |
Body Assy, Throttle W/Throttle Position Sensor
2022-08 → —
|
2NRVE NGC102 RHD CVT +1 | — | |
| 22030-BZ170 |
Body Assy, Throttle W/Throttle Position Sensor
2022-08 → —
|
3NRVE NGC100 | — | |
| 23250 — Injector Assy, Fuel | ||||
| 23209-09390 note |
Injector Assy, Fuel
2023-05 → —
|
1NRVE NGC101 GCC | — | |
| 23209-49285 |
Injector Assy, Fuel
2022-08 → —
|
3NRVE NGC100 | — | |
| 23209-B9080 |
Injector Assy, Fuel
2022-08 → 2023-05
ended
|
1NRVE NGC101 GCC | — | |
| 23209-B9080 |
Injector Assy, Fuel
2022-08 → —
|
2NRVE NGC102 THP;1NRVE,2NRVEX NGC101,NYC100 +1 | — | |
| 23209-B9080 note |
Injector Assy, Fuel
2023-05 → —
|
1NRVE NGC101 GCC | — | |
| 23209-B9090 |
Injector Assy, Fuel
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 23209-B9130 note |
Injector Assy, Fuel
2023-05 → —
|
1NRVE NGC101 GCC | — | |
| 23209-B9140 note |
Injector Assy, Fuel
2023-05 → —
|
1NRVE NGC101 GCC | — | |
| 23250B — Ring, O(FOR FUEL INJECTOR) | ||||
| 9004A-30072 |
Ring, O(FOR FUEL INJECTOR)
2022-08 → 2023-05
ended
|
1NRVE NGC101 GCC | — | |
| 9004A-30072 note |
Ring, O(FOR FUEL INJECTOR)
2023-05 → —
|
1NRVE NGC101 GCC | — | |
| 9004A-30072 |
Ring, O(FOR FUEL INJECTOR)
2022-08 → —
|
2NRVE NGC102;1NRVE NGC101 GEN,PHL | — | |
| 90301-07042 |
Ring, O(FOR FUEL INJECTOR)
2022-08 → —
|
3NRVE NGC100 | — | |
| 90301-07042 note |
Ring, O(FOR FUEL INJECTOR)
2023-05 → —
|
1NRVE NGC101 GCC | — | |
| 23291 — Insulator, Injector Vibration | ||||
| 23291-0Y020 |
Insulator, Injector Vibration
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 23291-0Y050 |
Insulator, Injector Vibration
2022-08 → —
|
1NRVE,2NR#,3NRVE NGC10#,NYC100 THP | — | |
| 23807V — Spacer, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-47040 |
Spacer, NO.1(FOR DELIVERY PIPE)
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 23814B — Pipe, Fuel Delivery | ||||
| 23814-0Y010 |
Pipe, Fuel Delivery
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 23841B — Clamp, Fuel Pipe, NO.1(FOR EFI) | ||||
| 23841-0Y040 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2022-08 → —
|
1NRVE,2NRVE,3NRVE NGC10# | — | |
| 23901 — Tube Sub-assy, Fuel | ||||
| 23901-BZ170 |
Tube Sub-assy, Fuel
2023-03 → —
|
2NRVE NGC102 MA | — | |
| 23901-BZ200 |
Tube Sub-assy, Fuel
2022-08 → —
|
1NRVE,2NRVE NGC101,102 THP | — | |
| 23901-BZ240 |
Tube Sub-assy, Fuel
2022-08 → —
|
3NRVE NGC100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
