Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

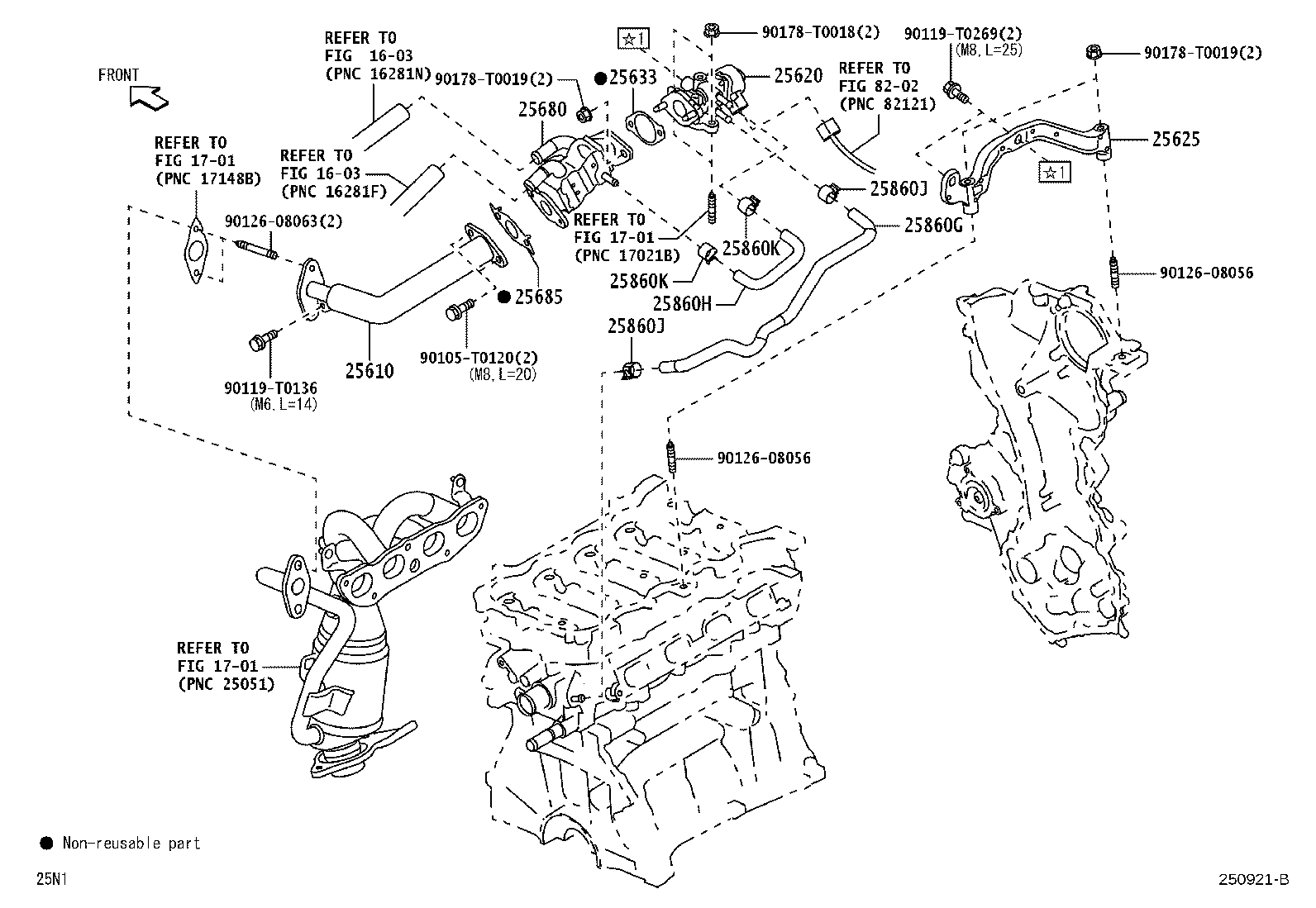

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 25610 — Pipe Assy, Egr | ||||
| 25610-0Y040 |
Pipe Assy, Egr
2022-08 → —
|
3NRVE NGC100 | — | |
| 25620 — Valve Assy, Egr | ||||
| 25620-47060 |
Valve Assy, Egr
2022-08 → —
|
3NRVE NGC100 | — | |
| 25625 — Bracket, Egr Valve | ||||
| 25625-0Y040 |
Bracket, Egr Valve
2022-08 → —
|
3NRVE NGC100 | — | |
| 25633 — Gasket, Egr Valve | ||||
| 25633-0Y030 |
Gasket, Egr Valve
2022-08 → —
|
3NRVE NGC100 | — | |
| 25680 — Cooler Assy, Egr | ||||
| 25680-0Y010 |
Cooler Assy, Egr
2022-08 → —
|
3NRVE NGC100 | — | |
| 25685 — Gasket, Egr Cooler, NO.1 | ||||
| 25685-0Y050 |
Gasket, Egr Cooler, NO.1
2022-08 → —
|
3NRVE NGC100 | — | |
| 25860G — Hose, Water By-pass Hose NO.1(FOR EGR COOLER) | ||||
| 16264-0Y040 |
Hose, Water By-pass Hose NO.1(FOR EGR COOLER)
2022-08 → —
|
3NRVE NGC100 | — | |
| 25860H — Hose, Water By-pass Hose NO.2(FOR EGR COOLER) | ||||
| 16267-0Y230 |
Hose, Water By-pass Hose NO.2(FOR EGR COOLER)
2022-08 → —
|
3NRVE NGC100 | — | |
| 25860J — Hose, Clip NO.1(FOR EGR COOLER) | ||||
| 90466-T0015 |
Hose, Clip NO.1(FOR EGR COOLER)
2022-08 → —
|
3NRVE NGC100 | — | |
| 25860K — Hose, Clip NO.2(FOR EGR COOLER) | ||||
| 90466-T0015 |
Hose, Clip NO.2(FOR EGR COOLER)
2022-08 → —
|
3NRVE NGC100 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
