Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

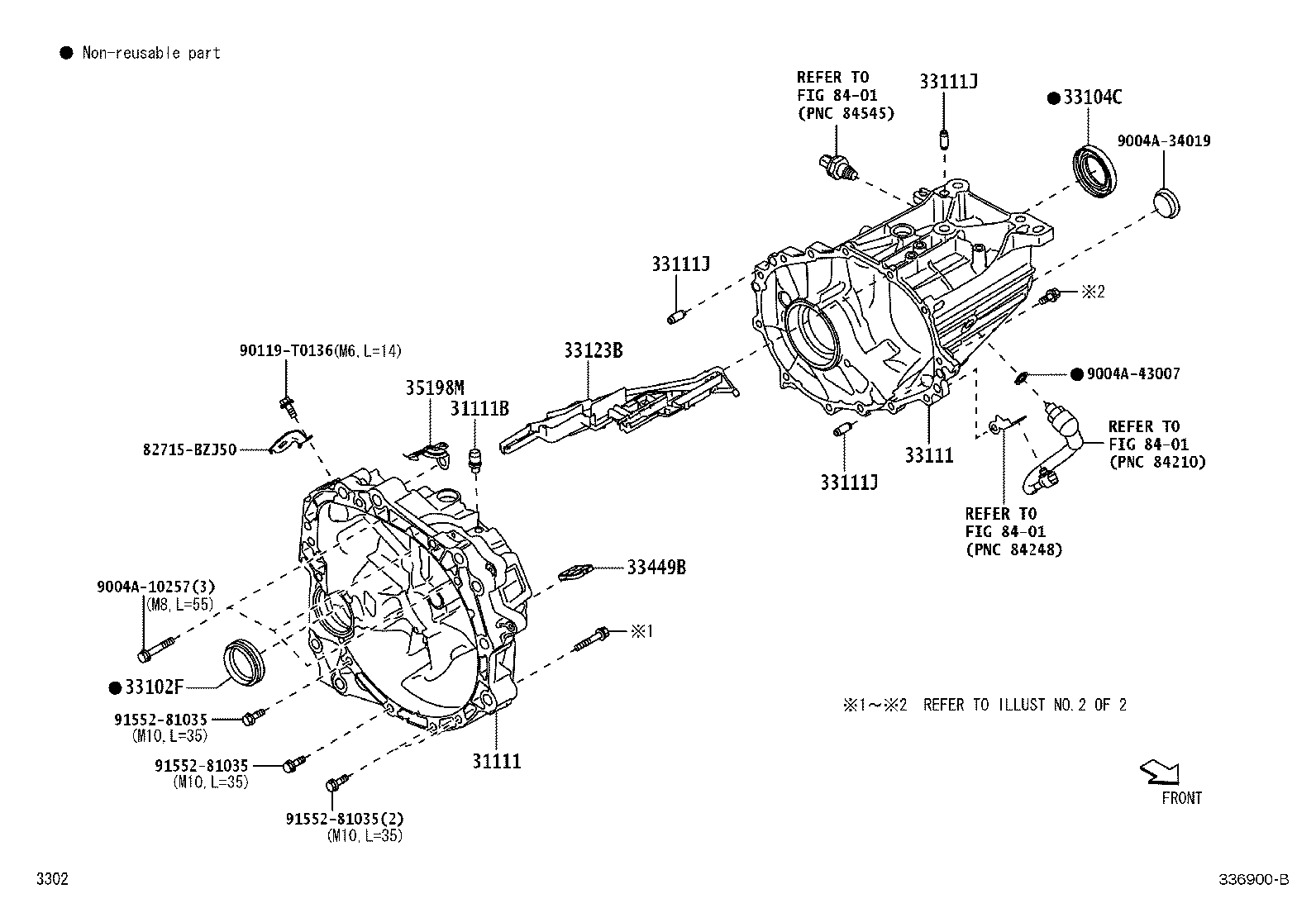

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31111 — Housing, Clutch | ||||
| 31115-BZ090 |
Housing, Clutch
2022-08 → —
|
NGC101,102 5F | — | |
| 31111B — Plug(FOR CLUTCH HOUSING) | ||||
| 9004A-93003 |
Plug(FOR CLUTCH HOUSING)
2022-08 → —
|
NGC101,102 5F | — | |
| 33102F — Seal, Type T Oil(FOR MANUAL TRANSMISSION CASE RH) | ||||
| 9004A-31051 |
Seal, Type T Oil(FOR MANUAL TRANSMISSION CASE RH)
2022-08 → —
|
NGC101,102 5F | — | |
| 33104C — Seal, Type T Oil(FOR MANUAL TRANSMISSION CASE LH) | ||||
| 9004A-31050 |
Seal, Type T Oil(FOR MANUAL TRANSMISSION CASE LH)
2022-08 → —
|
NGC101,102 5F | — | |
| 33111 — Case, Manual Transmission | ||||
| 33111-BZ100 |
Case, Manual Transmission
2022-08 → —
|
NGC101,102 5F | — | |
| 33111J — Pin, Straight(FOR MANUAL TRANSMISSION CASE) | ||||
| 9004A-25032 note |
Pin, Straight(FOR MANUAL TRANSMISSION CASE)
2022-08 → —
|
NGC101,102 5F | — | |
| 33123B — Receiver, Case Cover Oil, NO.1(MTM) | ||||
| 33123-BZ030 |
Receiver, Case Cover Oil, NO.1(MTM)
2022-08 → —
|
NGC101,102 5F | — | |
| 33449B — Magnet, Transmission | ||||
| 33449-BZ070 |
Magnet, Transmission
2022-08 → —
|
NGC101,102 5F | — | |
| 35198M — Bracket, Wire Harness Clamp | ||||
| 82715-B2510 |
Bracket, Wire Harness Clamp
2022-08 → —
|
NGC101,102 5F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
