Toyota Vios/Yaris/Yarisativ

2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

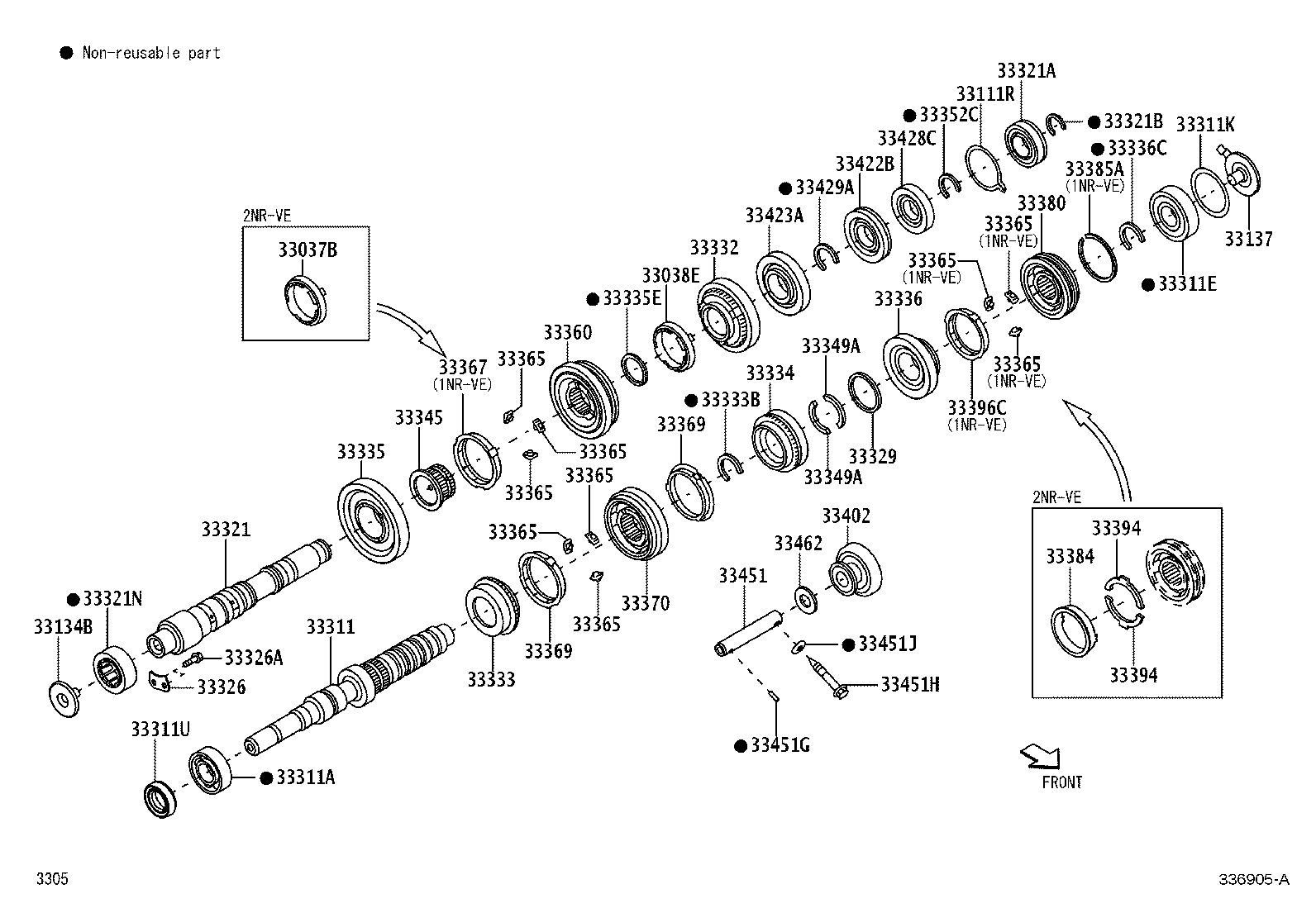

Exploded illustration 336905A 33134B — COVER, OUTPUT SHAFT(MTM) (1 parts) 33321N — BEARING (FOR OUTPUT SHAFT FRONT) (1 parts) 33311U — SEAL, OIL (FOR INPUT SHAFT) (1 parts) 33311 — SHAFT, INPUT (1 parts) 33365 — KEY, SYNCHROMESH SHIFTING, NO.1 (2 parts) 33369 — RING, SYNCHRONIZER, NO.3 (1 parts) 33451 — SHAFT, REVERSE IDLER GEAR (1 parts) 33462 — WASHER, REVERSE IDLER THRUST (1 parts) 33402 — GEAR SUB-ASSY, REVERSE IDLER (1 parts) 33333B — RING, SHAFT SNAP (FOR 3RD REAR) (5 parts) 33334 — GEAR, 4TH (2 parts) 33349A — WASHER, 4TH GEAR (1 parts) 33336 — GEAR, 5TH (2 parts) 33365 — KEY, SYNCHROMESH SHIFTING, NO.1 (2 parts) 33380 — HUB ASSY, SYNCHRONIZER, NO.3 (2 parts) 33385A — RING, HOLE SNAP (FOR 5TH SHIFTING KEY RETAINER) (1 parts) 33336C — RING, SHAFT SNAP (FOR 5TH GEAR) (5 parts) 33311K — SHIM (FOR INPUT SHAFT REAR BEARING) (8 parts) 33321 — SHAFT, OUTPUT (2 parts) 33335 — GEAR, 1ST (2 parts) 33037B — RING SET, SYNCHRONIZER, NO.1 (1 parts) 33345 — BUSH, 1ST GEAR (1 parts) 33360 — HUB ASSY, SYNCHRONIZER, NO.1 (4 parts) 33335E — RING, SHAFT SNAP(FOR 1ST GEAR) (6 parts) 33038E — RING SET, SYNCHRONIZER, NO.2 (1 parts) 33332 — GEAR, 2ND (1 parts) 33423A — GEAR, 3RD DRIVEN (1 parts) 33429A — RING, SHAFT SNAP (5 parts) 33422B — GEAR, 4TH DRIVEN (2 parts) 33428C — GEAR, 5TH DRIVEN (2 parts) 33352C — RING, SHAFT SNAP (6 parts) 33111R — RING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING) (1 parts) 33321A — BEARING (FOR OUTPUT SHAFT REAR) (1 parts) 33367 — RING, SYNCHRONIZER, NO.1 (1 parts) 33365 — KEY, SYNCHROMESH SHIFTING, NO.1 (2 parts) 33333 — GEAR, 3RD (1 parts) 33369 — RING, SYNCHRONIZER, NO.3 (1 parts) 33365 — KEY, SYNCHROMESH SHIFTING, NO.1 (2 parts) 33451G — PIN, SLOTTED SPRING (FOR REVERSE IDLER GEAR SHAFT) (1 parts) 33370 — HUB ASSY, SYNCHRONIZER, NO.2 (1 parts) 33349A — WASHER, 4TH GEAR (1 parts) 33329 — RING, 4TH WASHER RETAINING (1 parts) 33396C — RING, SYNCHRONIZER, NO.5(MTM) (1 parts) 33365 — KEY, SYNCHROMESH SHIFTING, NO.1 (2 parts) 33311E — BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) (1 parts) 33137 — COVER, INPUT SHAFT(MTM) (1 parts) 33365 — KEY, SYNCHROMESH SHIFTING, NO.1 (2 parts) 33321B — RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) (6 parts) 33365 — KEY, SYNCHROMESH SHIFTING, NO.1 (2 parts) 33311A — BEARING (FOR INPUT SHAFT FRONT) (1 parts) 33326 — PLATE, BEARING LOCK (1 parts) 33326A — BOLT (FOR BEARING LOCK PLATE) (1 parts) 33451J — GASKET (FOR REVERSE IDLER GEAR SHAFT) (1 parts) 33451H — BOLT (FOR REVERSE IDLER GEAR SHAFT) (1 parts) 33365 — KEY, SYNCHROMESH SHIFTING, NO.1 (2 parts) 33365 — KEY, SYNCHROMESH SHIFTING, NO.1 (2 parts) 33384 — RING, 5TH SYNCHRONIZER OUTER (1 parts) 33394 — KEY, SYNCHROMESH SHIFTING, NO.3 (1 parts) 33394 — KEY, SYNCHROMESH SHIFTING, NO.3 (1 parts)
336905A · 59 callouts Full size ↗
93 parts on this figure
Part number Description Fitment Price
33037B — Ring Set, Synchronizer, NO.1
33037-BZ010 Ring Set, Synchronizer, NO.1
2022-08 → —
NGC102 5F —
33038E — Ring Set, Synchronizer, NO.2
33038-BZ050 Ring Set, Synchronizer, NO.2
2022-08 → —
NGC101,102 5F —
33111R — Ring, Hole Snap(FOR OUTPUT SHAFT REAR BEARING)
9004A-52101 Ring, Hole Snap(FOR OUTPUT SHAFT REAR BEARING)
2022-08 → —
NGC101,102 5F —
33134B — Cover, Output Shaft(MTM)
33134-BZ030 Cover, Output Shaft(MTM)
2022-08 → —
NGC101,102 5F —
33137 — Cover, Input Shaft(MTM)
33137-BZ010 Cover, Input Shaft(MTM)
2022-08 → —
NGC101,102 5F —
33311 — Shaft, Input
33311-BZ100 Shaft, Input
2022-08 → —
NGC101,102 5F —
33311A — Bearing (FOR INPUT SHAFT FRONT)
9004A-36125 Bearing (FOR INPUT SHAFT FRONT)
2022-08 → —
NGC101,102 5F —
33311E — Bearing, Radial Ball (FOR INPUT SHAFT REAR)
9004A-36120 Bearing, Radial Ball (FOR INPUT SHAFT REAR)
2022-08 → —
NGC101,102 5F —
33311K — Shim (FOR INPUT SHAFT REAR BEARING)
9004A-56100 note Shim (FOR INPUT SHAFT REAR BEARING)
2022-08 → —
NGC101,102 5F —
9004A-56101 note Shim (FOR INPUT SHAFT REAR BEARING)
2022-08 → —
NGC101,102 5F —
9004A-56102 note Shim (FOR INPUT SHAFT REAR BEARING)
2022-08 → —
NGC101,102 5F —
9004A-56103 note Shim (FOR INPUT SHAFT REAR BEARING)
2022-08 → —
NGC101,102 5F —
9004A-56104 note Shim (FOR INPUT SHAFT REAR BEARING)
2022-08 → —
NGC101,102 5F —
9004A-56105 note Shim (FOR INPUT SHAFT REAR BEARING)
2022-08 → —
NGC101,102 5F —
9004A-56106 note Shim (FOR INPUT SHAFT REAR BEARING)
2022-08 → —
NGC101,102 5F —
9004A-56107 note Shim (FOR INPUT SHAFT REAR BEARING)
2022-08 → —
NGC101,102 5F —
33311U — Seal, Oil (FOR INPUT SHAFT)
9004A-31065 Seal, Oil (FOR INPUT SHAFT)
2022-08 → —
NGC101,102 5F —
33321 — Shaft, Output
33321-BZ130 Shaft, Output
2022-08 → —
NGC101 5F —
33321-BZ170 Shaft, Output
2022-08 → —
NGC102 5F —
33321A — Bearing (FOR OUTPUT SHAFT REAR)
9004A-36126 Bearing (FOR OUTPUT SHAFT REAR)
2022-08 → —
NGC101,102 5F —
33321B — Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING)
9004A-52119 note Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING)
2022-08 → —
NGC101,102 5F —
9004A-52120 note Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING)
2022-08 → —
NGC101,102 5F —
9004A-52121 note Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING)
2022-08 → —
NGC101,102 5F —
9004A-52122 note Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING)
2022-08 → —
NGC101,102 5F —
9004A-52123 note Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING)
2022-08 → —
NGC101,102 5F —
9004A-52124 note Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING)
2022-08 → —
NGC101,102 5F —
33321N — Bearing (FOR OUTPUT SHAFT FRONT)
9004A-36127 Bearing (FOR OUTPUT SHAFT FRONT)
2022-08 → —
NGC101,102 5F —
33326 — Plate, Bearing Lock
33326-BZ060 Plate, Bearing Lock
2022-08 → —
NGC101,102 5F —
33326A — Bolt (FOR BEARING LOCK PLATE)
9004A-10271 Bolt (FOR BEARING LOCK PLATE)
2022-08 → —
NGC101,102 5F —
33329 — Ring, 4TH Washer Retaining
33329-BZ010 Ring, 4TH Washer Retaining
2022-08 → —
NGC101,102 5F —
33332 — Gear, 2ND
33332-BZ070 Gear, 2ND
2022-08 → —
NGC101,102 5F —
33333 — Gear, 3RD
33333-BZ090 Gear, 3RD
2022-08 → —
NGC101,102 5F —
33333B — Ring, Shaft Snap (FOR 3RD REAR)
9004A-52113 note Ring, Shaft Snap (FOR 3RD REAR)
2022-08 → —
NGC101,102 5F —
9004A-52114 note Ring, Shaft Snap (FOR 3RD REAR)
2022-08 → —
NGC101,102 5F —
9004A-52115 note Ring, Shaft Snap (FOR 3RD REAR)
2022-08 → —
NGC101,102 5F —
9004A-52116 note Ring, Shaft Snap (FOR 3RD REAR)
2022-08 → —
NGC101,102 5F —
9004A-52117 note Ring, Shaft Snap (FOR 3RD REAR)
2022-08 → —
NGC101,102 5F —
33334 — Gear, 4TH
33334-BZ080 Gear, 4TH
2022-08 → —
NGC102 5F —
33334-BZ090 Gear, 4TH
2022-08 → —
NGC101 5F —
33335 — Gear, 1ST
33335-BZ120 Gear, 1ST
2022-08 → —
NGC102 5F —
33335-BZ130 Gear, 1ST
2022-08 → —
NGC101 5F —
33335E — Ring, Shaft Snap(FOR 1ST GEAR)
9004A-52125 note Ring, Shaft Snap(FOR 1ST GEAR)
2022-08 → —
NGC101,102 5F —
9004A-52126 note Ring, Shaft Snap(FOR 1ST GEAR)
2022-08 → —
NGC101,102 5F —
9004A-52127 note Ring, Shaft Snap(FOR 1ST GEAR)
2022-08 → —
NGC101,102 5F —
9004A-52128 note Ring, Shaft Snap(FOR 1ST GEAR)
2022-08 → —
NGC101,102 5F —
9004A-52129 note Ring, Shaft Snap(FOR 1ST GEAR)
2022-08 → —
NGC101,102 5F —
9004A-52130 note Ring, Shaft Snap(FOR 1ST GEAR)
2022-08 → —
NGC101,102 5F —
33336 — Gear, 5TH
33336-BZ100 Gear, 5TH
2022-08 → —
NGC102 5F —
33336-BZ110 Gear, 5TH
2022-08 → —
NGC101 5F —
33336C — Ring, Shaft Snap (FOR 5TH GEAR)
9004A-52102 note Ring, Shaft Snap (FOR 5TH GEAR)
2022-08 → —
NGC101,102 5F —
9004A-52103 note Ring, Shaft Snap (FOR 5TH GEAR)
2022-08 → —
NGC101,102 5F —
9004A-52104 note Ring, Shaft Snap (FOR 5TH GEAR)
2022-08 → —
NGC101,102 5F —
9004A-52105 note Ring, Shaft Snap (FOR 5TH GEAR)
2022-08 → —
NGC101,102 5F —
9004A-52106 note Ring, Shaft Snap (FOR 5TH GEAR)
2022-08 → —
NGC101,102 5F —
33345 — Bush, 1ST Gear
33345-BZ010 Bush, 1ST Gear
2022-08 → —
NGC101,102 5F —
33349A — Washer, 4TH Gear
33349-BZ010 Washer, 4TH Gear
2022-08 → —
NGC101,102 5F —
33352C — Ring, Shaft Snap
9004A-52107 note Ring, Shaft Snap
2022-08 → —
NGC101,102 5F —
9004A-52108 note Ring, Shaft Snap
2022-08 → —
NGC101,102 5F —
9004A-52109 note Ring, Shaft Snap
2022-08 → —
NGC101,102 5F —
9004A-52110 note Ring, Shaft Snap
2022-08 → —
NGC101,102 5F —
9004A-52111 note Ring, Shaft Snap
2022-08 → —
NGC101,102 5F —
9004A-52112 note Ring, Shaft Snap
2022-08 → —
NGC101,102 5F —
33360 — Hub Assy, Synchronizer, NO.1
33360-BZ240 Hub Assy, Synchronizer, NO.1
2022-08 → 2024-11 ended
NGC102 5F —
33360-BZ241 Hub Assy, Synchronizer, NO.1
2024-12 → —
NGC102 5F —
33360-BZ270 Hub Assy, Synchronizer, NO.1
2022-08 → 2024-11 ended
NGC101 5F —
33360-BZ271 Hub Assy, Synchronizer, NO.1
2024-12 → —
NGC101 5F —
33365 — Key, Synchromesh Shifting, NO.1
33365-BZ060 Key, Synchromesh Shifting, NO.1
2022-08 → —
NGC102 5F —
33365-BZ060 Key, Synchromesh Shifting, NO.1
2022-08 → —
NGC101 5F —
33367 — Ring, Synchronizer, NO.1
33367-BZ060 Ring, Synchronizer, NO.1
2022-08 → —
NGC101 5F —
33369 — Ring, Synchronizer, NO.3
33369-BZ070 Ring, Synchronizer, NO.3
2022-08 → —
NGC101,102 5F —
33370 — Hub Assy, Synchronizer, NO.2
33370-BZ170 Hub Assy, Synchronizer, NO.2
2022-08 → —
NGC101,102 5F —
33380 — Hub Assy, Synchronizer, NO.3
33380-BZ170 Hub Assy, Synchronizer, NO.3
2022-08 → —
NGC101 5F —
33380-BZ200 Hub Assy, Synchronizer, NO.3
2022-08 → —
NGC102 5F —
33384 — Ring, 5TH Synchronizer Outer
33384-BZ010 Ring, 5TH Synchronizer Outer
2022-08 → —
NGC102 5F —
33385A — Ring, Hole Snap (FOR 5TH SHIFTING KEY RETAINER)
9004A-52070 Ring, Hole Snap (FOR 5TH SHIFTING KEY RETAINER)
2022-08 → —
NGC101 5F —
33394 — Key, Synchromesh Shifting, NO.3
33394-BZ010 Key, Synchromesh Shifting, NO.3
2022-08 → —
NGC102 5F —
33396C — Ring, Synchronizer, NO.5(MTM)
33396-BZ010 Ring, Synchronizer, NO.5(MTM)
2022-08 → —
NGC101 5F —
33402 — Gear Sub-assy, Reverse Idler
33402-BZ060 Gear Sub-assy, Reverse Idler
2022-08 → —
NGC101,102 5F —
33422B — Gear, 4TH Driven
33422-BZ050 Gear, 4TH Driven
2022-08 → —
NGC102 5F —
33422-BZ080 Gear, 4TH Driven
2022-08 → —
NGC101 5F —
33423A — Gear, 3RD Driven
33423-BZ030 Gear, 3RD Driven
2022-08 → —
NGC101,102 5F —
33428C — Gear, 5TH Driven
33428-BZ060 Gear, 5TH Driven
2022-08 → —
NGC101 5F —
33428-BZ070 Gear, 5TH Driven
2022-08 → —
NGC102 5F —
33429A — Ring, Shaft Snap
9004A-52102 note Ring, Shaft Snap
2022-08 → —
NGC101,102 5F —
9004A-52103 note Ring, Shaft Snap
2022-08 → —
NGC101,102 5F —
9004A-52104 note Ring, Shaft Snap
2022-08 → —
NGC101,102 5F —
9004A-52105 note Ring, Shaft Snap
2022-08 → —
NGC101,102 5F —
9004A-52106 note Ring, Shaft Snap
2022-08 → —
NGC101,102 5F —
33451 — Shaft, Reverse Idler Gear
33451-BZ040 Shaft, Reverse Idler Gear
2022-08 → —
NGC101,102 5F —
33451G — Pin, Slotted Spring (FOR REVERSE IDLER GEAR SHAFT)
9004A-25039 Pin, Slotted Spring (FOR REVERSE IDLER GEAR SHAFT)
2022-08 → —
NGC101,102 5F —
33451H — Bolt (FOR REVERSE IDLER GEAR SHAFT)
9004A-10254 Bolt (FOR REVERSE IDLER GEAR SHAFT)
2022-08 → —
NGC101,102 5F —
33451J — Gasket (FOR REVERSE IDLER GEAR SHAFT)
9004A-43024 Gasket (FOR REVERSE IDLER GEAR SHAFT)
2022-08 → —
NGC101,102 5F —
33462 — Washer, Reverse Idler Thrust
33462-BZ030 Washer, Reverse Idler Thrust
2022-08 → —
NGC101,102 5F —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
