Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

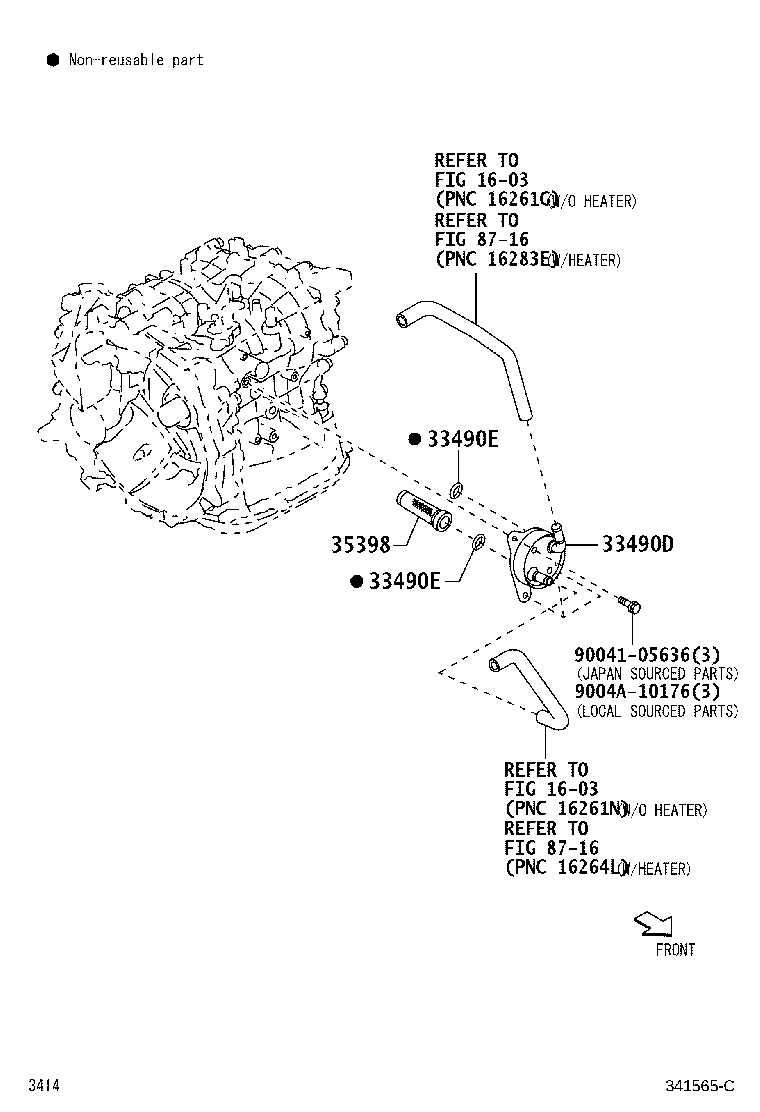

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33490D — Cooler Assy, Transmission Oil | ||||
| 33490-B2030 |
Cooler Assy, Transmission Oil
2022-08 → —
|
NGC10# CVT | — | |
| 33490E — Ring, O (FOR TRANSMISSION OIL COOLER) | ||||
| 90043-01374 |
Ring, O (FOR TRANSMISSION OIL COOLER)
2022-08 → —
|
NGC10# CVT | — | |
| 35398 — Strainer, Lubrication Oil | ||||
| 35398-B2010 |
Strainer, Lubrication Oil
2022-08 → —
|
NGC10# CVT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
