Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

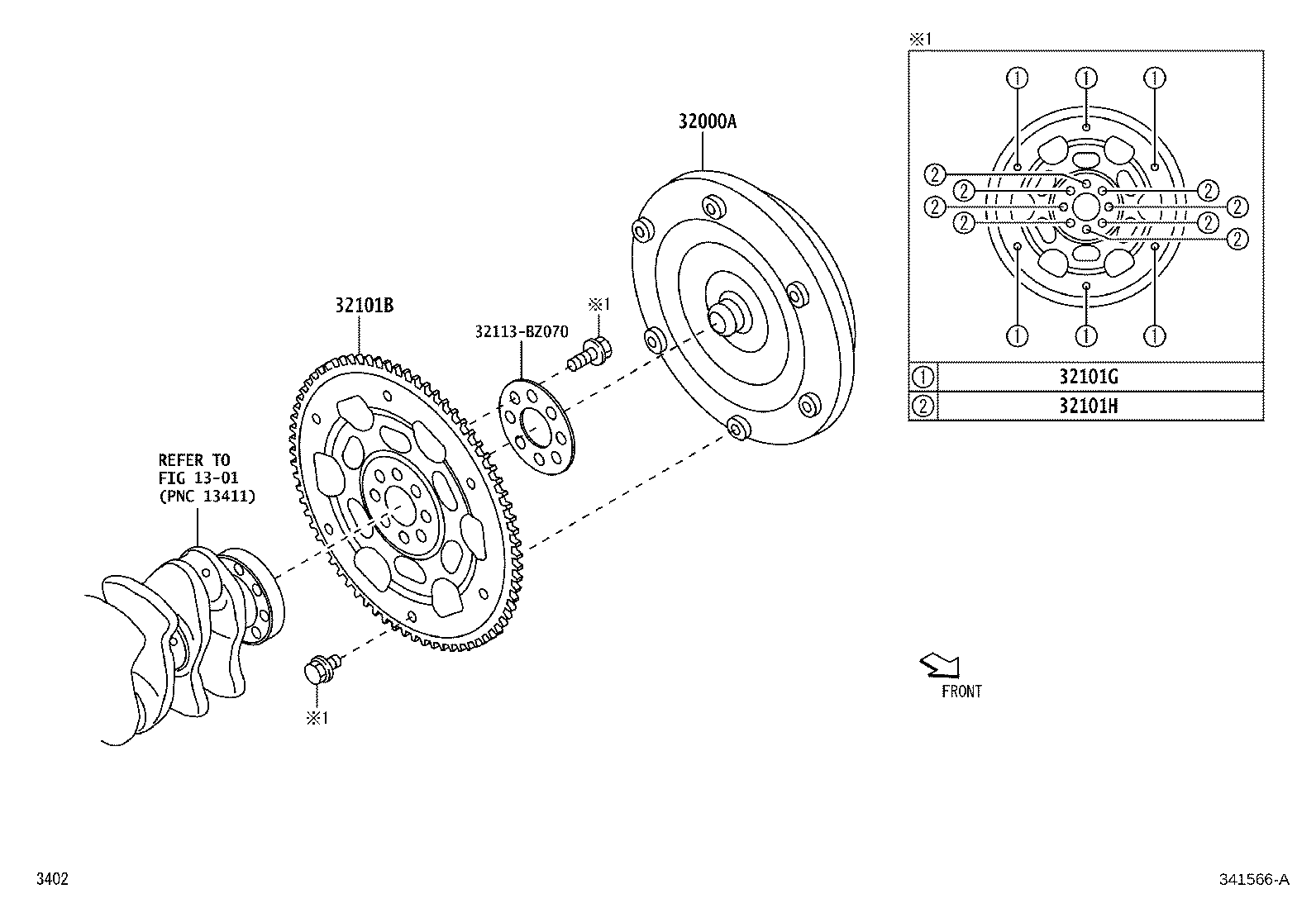

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 32000A — Converter Assy, Torque | ||||
| 32000-B2230 note |
Converter Assy, Torque
2022-08 → —
|
NGC102 THP CVT | — | |
| 32000-B2250 |
Converter Assy, Torque
2022-08 → —
|
NGC100,101 CVT | — | |
| 32000-BZ010 note |
Converter Assy, Torque
2023-03 → —
|
NGC102 MA | — | |
| 32101B — Gear Sub-assy, Drive Plate & Ring | ||||
| 32101-BZ100 |
Gear Sub-assy, Drive Plate & Ring
2022-08 → —
|
NGC10# CVT | — | |
| 32101G — Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 9004A-10300 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2022-08 → —
|
NGC10# CVT | — | |
| 9004A-10301 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2022-08 → —
|
NGC10# CVT | — | |
| 32101H — Bolt, Hexagon(FOR DRIVE PLATE SETTING) | ||||
| 9004A-10200 |
Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2022-08 → —
|
NGC10# CVT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
