Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

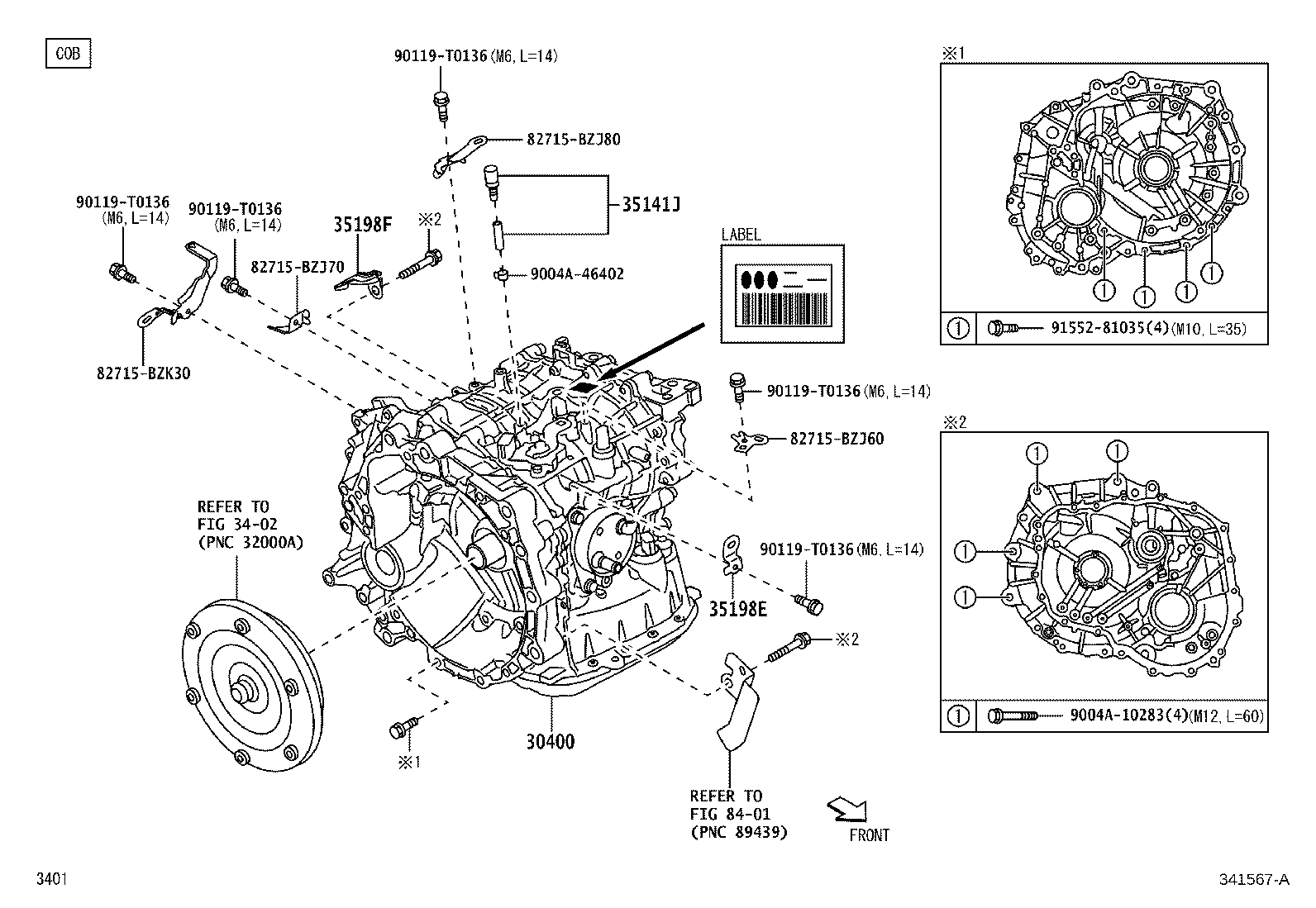

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 30400 — Transaxle Assy, Continuously Variable | ||||
| 30400-B2B30 note |
Transaxle Assy, Continuously Variable
2022-08 → —
|
NGC100,101 CVT | — | |
| 30400-B2B40 note |
Transaxle Assy, Continuously Variable
2022-08 → —
|
NGC102 THP CVT | — | |
| 30400-BZ040 note |
Transaxle Assy, Continuously Variable
2023-03 → —
|
NGC102 MA | — | |
| 35141J — Plug, Breather, NO.2(CVT) | ||||
| 35120-BZ020 note |
Plug, Breather, NO.2(CVT)
2022-08 → —
|
NGC10# THP CVT | — | |
| 35120-BZ050 note |
Plug, Breather, NO.2(CVT)
2023-03 → —
|
NGC102 MA | — | |
| 35198E — Bracket, Wire Harness Clamp, NO.1 | ||||
| 82715-BZJ90 |
Bracket, Wire Harness Clamp, NO.1
2022-08 → —
|
NGC10# CVT | — | |
| 35198F — Bracket, Wire Harness Clamp | ||||
| 82715-B2510 |
Bracket, Wire Harness Clamp
2022-08 → —
|
NGC10# CVT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
