Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

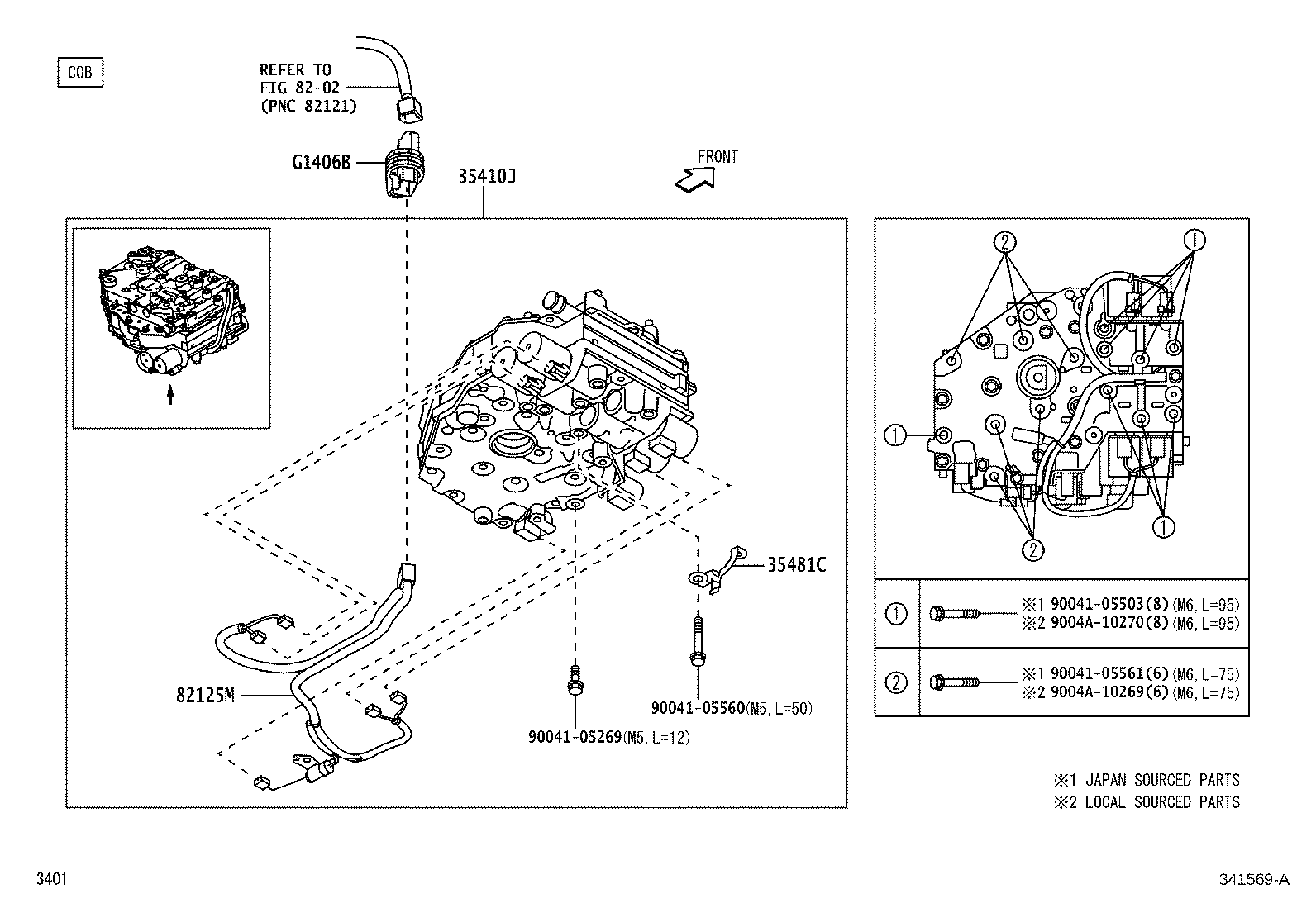

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35410J — Body Assy, Transmission Valve | ||||
| 35410-B9201 |
Body Assy, Transmission Valve
2022-08 → 2024-09
ended
|
NGC10# CVT | — | |
| 35410-B9202 |
Body Assy, Transmission Valve
2024-10 → —
|
NGC10# CVT | — | |
| 35481C — Clamp, Valve Body Wire Harness | ||||
| 35199-B2010 |
Clamp, Valve Body Wire Harness
2022-08 → —
|
NGC10# CVT | — | |
| 82125M — Wire, Transmission | ||||
| 82125-B2070 |
Wire, Transmission
2022-08 → —
|
NGC10# CVT | — | |
| G1406B — Connector Sub-assy, Trans Solenoid | ||||
| G1406-B2010 |
Connector Sub-assy, Trans Solenoid
2022-08 → —
|
NGC10# CVT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
