Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

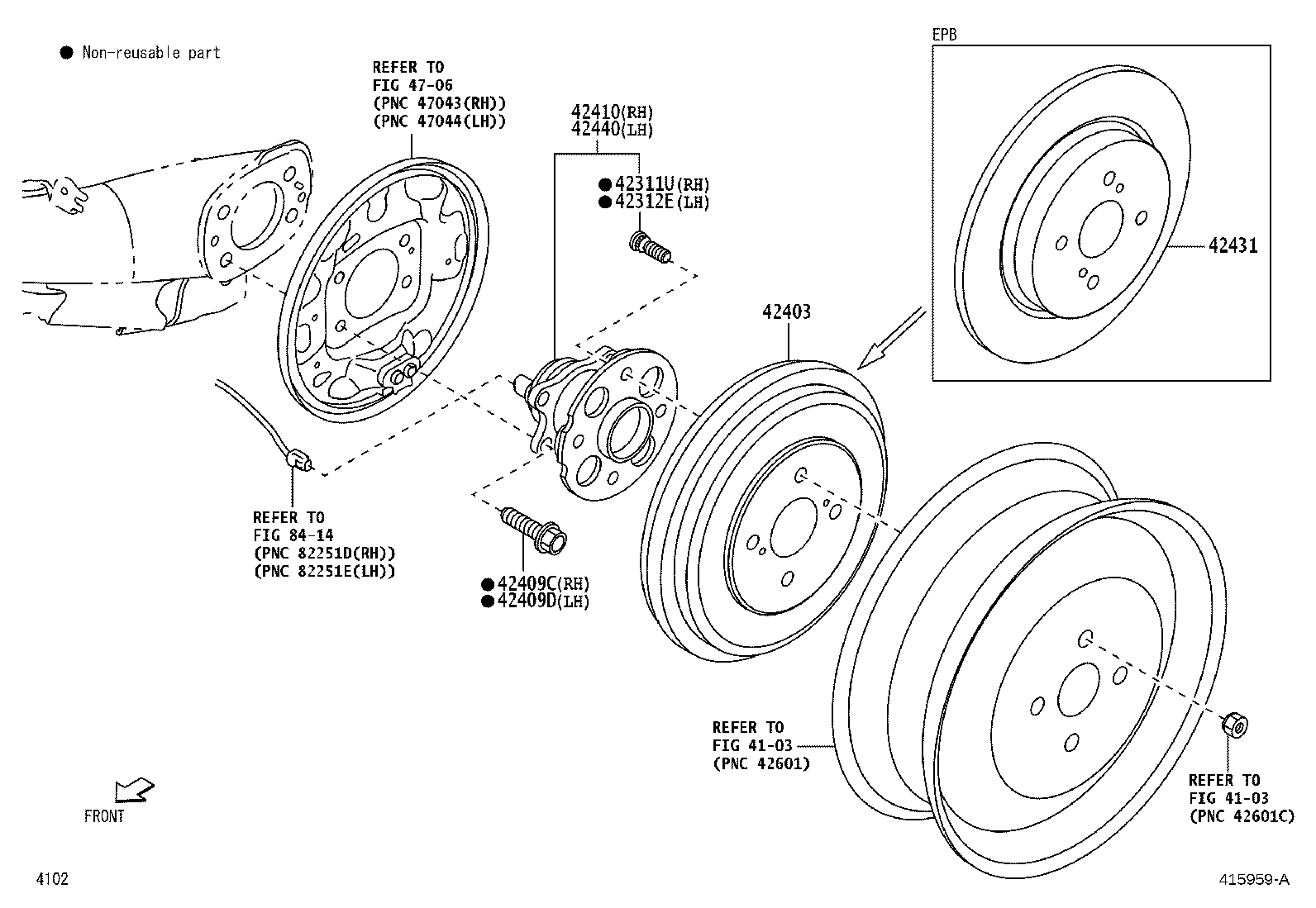

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42311U — Bolt, Hub(FOR REAR AXLE RH) | ||||
| 90049-12056 |
Bolt, Hub(FOR REAR AXLE RH)
2022-08 → —
|
NGC10# | — | |
| 42312E — Bolt, Hub(FOR REAR AXLE LH) | ||||
| 90049-12056 |
Bolt, Hub(FOR REAR AXLE LH)
2022-08 → —
|
NGC10# | — | |
| 42403 — Drum Sub-assy, Rear Brake | ||||
| 42431-BZ300 |
Drum Sub-assy, Rear Brake
2022-08 → —
|
NGC102 M 5F;NGC102 (GCC,MA) +7 | — | |
| 42431-BZ300 note |
Drum Sub-assy, Rear Brake
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 42431-BZ300 note |
Drum Sub-assy, Rear Brake
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 42409C — Bolt (FOR REAR AXLE BEARING RH) | ||||
| 9004A-10258 |
Bolt (FOR REAR AXLE BEARING RH)
2022-08 → —
|
NGC10# | — | |
| 42409D — Bolt (FOR REAR AXLE BEARING LH) | ||||
| 9004A-10258 |
Bolt (FOR REAR AXLE BEARING LH)
2022-08 → —
|
NGC10# | — | |
| 42410 — Hub & Bearing Assy, Rear Axle, RH | ||||
| 42410-BZ120 note |
Hub & Bearing Assy, Rear Axle, RH
2022-08 → —
|
NGC102 M 5F;NGC102 (GCC,MA) +7 | — | |
| 42410-BZ120 note |
Hub & Bearing Assy, Rear Axle, RH
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 42410-BZ120 note |
Hub & Bearing Assy, Rear Axle, RH
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 42410-BZ180 note |
Hub & Bearing Assy, Rear Axle, RH
2022-08 → —
|
NGC100 | — | |
| 42410-BZ180 note |
Hub & Bearing Assy, Rear Axle, RH
2022-08 → —
|
NGC101 M GCC | — | |
| 42410-BZ180 note |
Hub & Bearing Assy, Rear Axle, RH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 42410-BZ180 note |
Hub & Bearing Assy, Rear Axle, RH
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 42431 — Disc, Rear | ||||
| 42431-BZ260 |
Disc, Rear
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 42431-BZ260 note |
Disc, Rear
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 42431-BZ260 note |
Disc, Rear
2022-08 → —
|
NGC100 | — | |
| 42431-BZ260 note |
Disc, Rear
2022-08 → —
|
NGC101 M GCC | — | |
| 42440 — Hub & Bearing Assy, Rear Axle, LH | ||||
| 42410-BZ120 note |
Hub & Bearing Assy, Rear Axle, LH
2022-08 → —
|
NGC102 M 5F;NGC102 (GCC,MA) +7 | — | |
| 42410-BZ120 note |
Hub & Bearing Assy, Rear Axle, LH
2022-08 → —
|
NGC102 LHD CVT M +1 | — | |
| 42410-BZ120 note |
Hub & Bearing Assy, Rear Axle, LH
2022-08 → —
|
NGC102 LHD H GEN | — | |
| 42410-BZ180 note |
Hub & Bearing Assy, Rear Axle, LH
2022-08 → —
|
NGC102 LHD CVT M +4 | — | |
| 42410-BZ180 note |
Hub & Bearing Assy, Rear Axle, LH
2022-08 → —
|
NGC102 RHD M GEN | — | |
| 42410-BZ180 note |
Hub & Bearing Assy, Rear Axle, LH
2022-08 → —
|
NGC100 | — | |
| 42410-BZ180 note |
Hub & Bearing Assy, Rear Axle, LH
2022-08 → —
|
NGC101 M GCC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
