Toyota Vios/Yaris/Yarisativ
2022-08 → present · chassis NGC10#,NYC100 · catalogue 11G210 · General
Supported model
Data version 2023-09

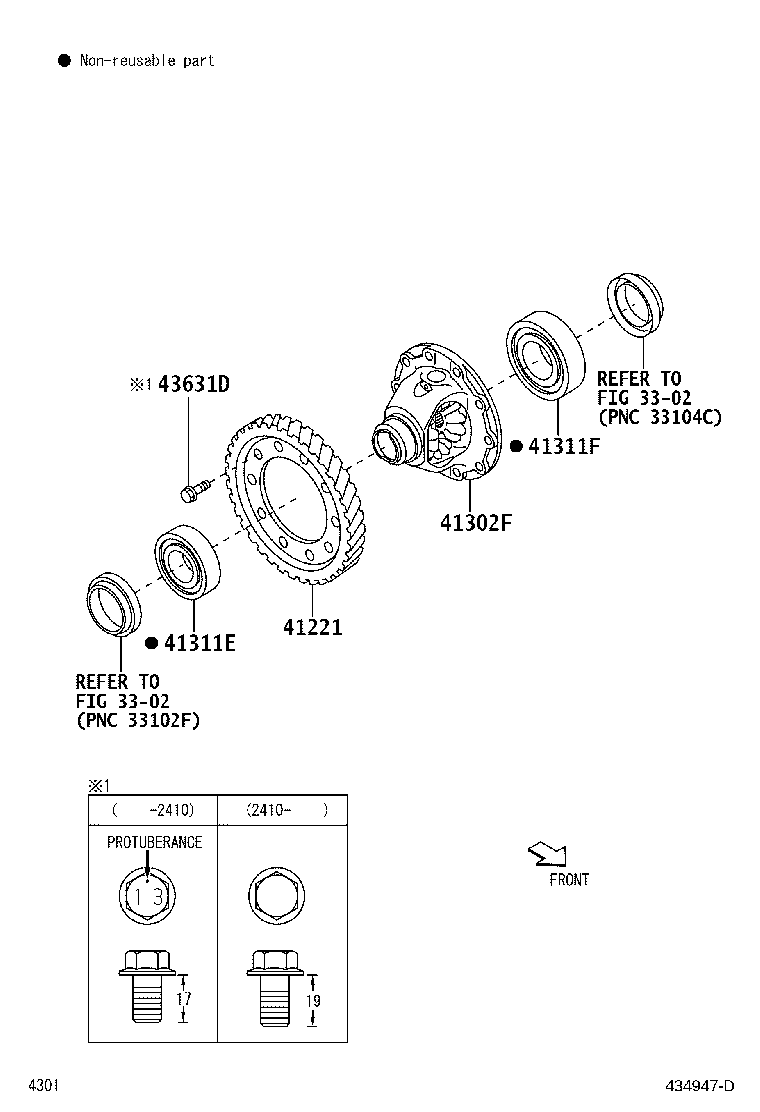

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 41221 — Gear, Front Differential Ring | ||||
| 41221-BZ300 |
Gear, Front Differential Ring
2022-08 → 2024-10
ended
|
NGC102 5F | — | |
| 41221-BZ301 |
Gear, Front Differential Ring
2024-10 → —
|
NGC102 5F | — | |
| 41221-BZ320 |
Gear, Front Differential Ring
2022-08 → 2024-10
ended
|
NGC101 5F | — | |
| 41221-BZ321 |
Gear, Front Differential Ring
2024-10 → —
|
NGC101 5F | — | |
| 41302F — Case Sub-assy, Front Differential | ||||
| 41301-BZ060 |
Case Sub-assy, Front Differential
2022-08 → —
|
NGC101 5F | — | |
| 41301-BZ070 |
Case Sub-assy, Front Differential
2022-08 → —
|
NGC102 5F | — | |
| 41311E — Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 9004A-36123 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
2022-08 → —
|
NGC101,102 5F | — | |
| 41311F — Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 9004A-36124 |
Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
2022-08 → —
|
NGC101,102 5F | — | |
| 43631D — Bolt, Hexagon (FOR DIFFERENTIAL CASE) | ||||
| 9004A-10120 |
Bolt, Hexagon (FOR DIFFERENTIAL CASE)
2022-08 → 2024-10
ended
|
NGC101,102 5F | — | |
| 9004A-10296 |
Bolt, Hexagon (FOR DIFFERENTIAL CASE)
2024-10 → —
|
NGC101,102 5F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
